Environmental Testing Temperature And Humidity Chamber 408L

Environmental Testing Temperature And Humidity Chamber 408L

Brand Name:	Sinuo
Model Number:	SN881-408L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

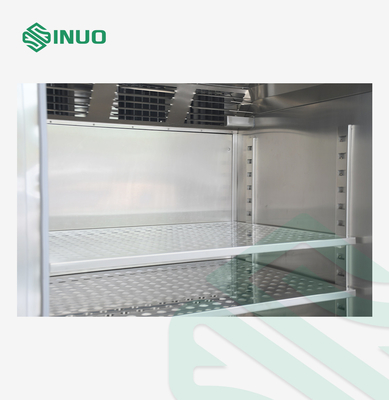

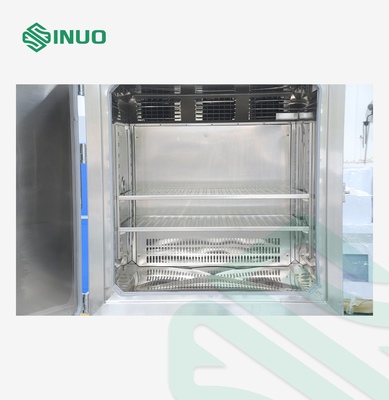

Inner Chamber Dimensions:

800*600*850 Mm

Outer Chamber Dimensions:

1350*1150*1950 Mm

Humidity Range:

20%～98%RH

Humidity Fluctuation:

≤2.5%

Heating Rate:

≧2-3°C/min

Cooling Rate:

≧1°C/min

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Environmental Testing Temperature Humidity Chamber

408L Temperature Humidity Chamber

Product Description

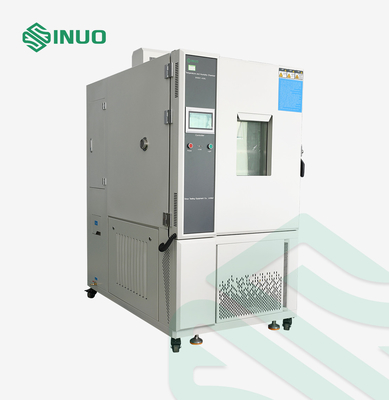

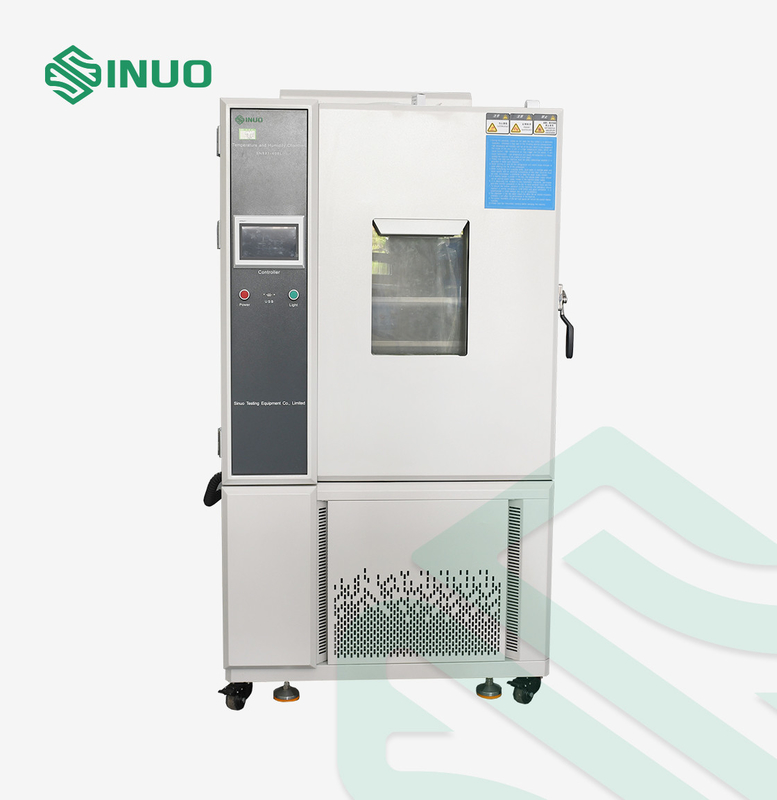

Environmental Testing Temperature and Humidity Chamber 408L

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

Equipment Overview

This test chamber is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	800600850 mm	135011501950 mm
Temperature Range	-40 °C ~+180°C
Humidity Range	20%～98%RH
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	≧2-3°C/min
Cooling Rate	≧1°C/min, average no load

Conditions of use
a) Installation site	The ground is flat, well ventilated, and does not contain flammable, explosive, corrosive gases and dust There is no strong electromagnetic radiation source nearby. There is a drainage floor drain near the equipment (within 2 meters of the refrigeration unit). The bearing capacity of the site ground: not less than 800kg/m2. There is appropriate maintenance space around the equipment. A: not less than 600mm B: not less than 1000mm C: not less than 100mm D: not less than 600mm
b) Water source requirements	1. Purified water must be used 2. Tap water must be treated
c) Environmental conditions	1. Temperature: 5℃～35℃ 2. Relative humidity: ≤85% 3. Air pressure: 86kPa～106kPa
d) Power supply	AC380V three-phase four-wire + protective ground wire Allowable voltage fluctuation range: AC (380±10)V Allowable frequency fluctuation range: (50±0.5)Hz Protective ground wire grounding resistance is less than 4Ω The user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be used independently for this equipment
Power capacity	About 11kW
Maximum current	23A
Power switch	32A (molded case leakage protector)
e) Environmental requirements for storage equipment	When the equipment is not working, the ambient temperature should be kept within 0℃～+45℃
