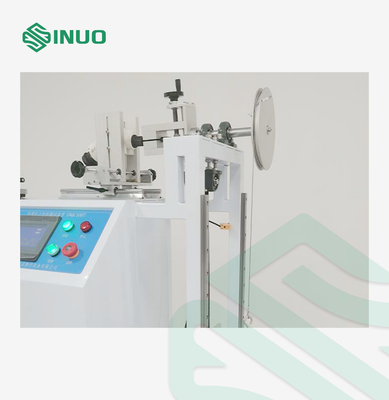

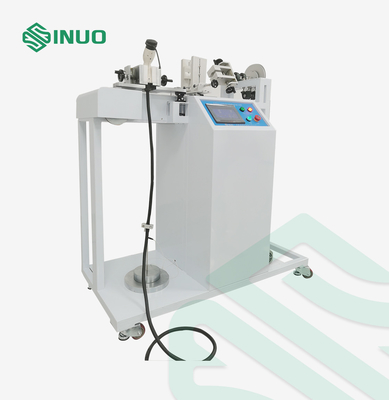

IEC 61851 Cable Anchorage Pull Force And Torque Test Apparatus

IEC 61851 Cable Anchorage Pull Force And Torque Test Apparatus

Brand Name:	Sinuo
Model Number:	SNQC1007B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Dimensions:

W1600*D600*H1450mm

Weight:

180kg

Drive Mode:

Electric

Torque Wheel:

R100mm(Ф200mm) ±0.5mm

Tensile Frequency:

1 Time/s

Pull Cycles:

1-999999 Cycles

Torque Application Time:

0-99H59M59S

Control Operation Mode:

PLC And Touchscreen

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Cable Anchorage Pull Force Test Apparatus

Pull Force And Torque Test Apparatus

IEC 61851 EV Connector Testing Equipment

Product Description

IEC 61851 Cable Anchorage Pull Force and Torque Test Apparatus

Complied Standards & Clauses

It is designed and manufactured according to IEC 61851-1:2017 clause 11.6.

Equipment Overview

Samples and restrictions: Electric vehicle charging station.

Test purpose: Used to test the ability of electric vehicle charging station connection cable accessories to withstand specified tension and torque.

Test Principle: The pulling force is realized by using a motor to drive an eccentric wheel mechanism or a screw mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. The torque is realized by using a motor, a tray, a weight and a time relay.

Structure and characteristics: The weight is used to apply tension, and the weight and the torque arm realize torque. The PLC is used to control the number of tensions and the torque test time. When the number of tests or the test time is reached, the equipment automatically stops. After the test, the maximum allowable displacement of the charging gun connector cable shall not exceed the standard requirement value.

Usage Environment:

Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%;

Dimensions: about W1600*D600*H1450mm; weight: about 180kg

Technical Parameters

Test content	Supply plug and/or vehicle plug cable of EV charging station tension test and torque test
Equipment structure schematic diagram	Refer Schematic
Control operation mode	PLC automatic control, touch screen operation
Drive mode	Electric
Pull apply	Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Torque apply	Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Torque wheel	R100mm(Ф200mm) ±0.5mm
Tensile frequency	1 time/s, the actual pull time is detected by electrical signal
Pull cycles	1-999999 cycles, can be preset, default is 100±1 cycles
Torque application time	0-99H59M59S,can be preset
Power failure protection	With power-off data storage memory function

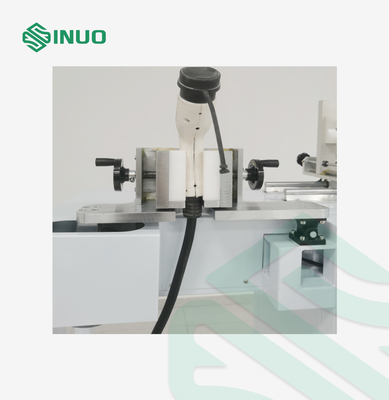

Fixture	Universal clamp, one set
Weight matching selection table

Details

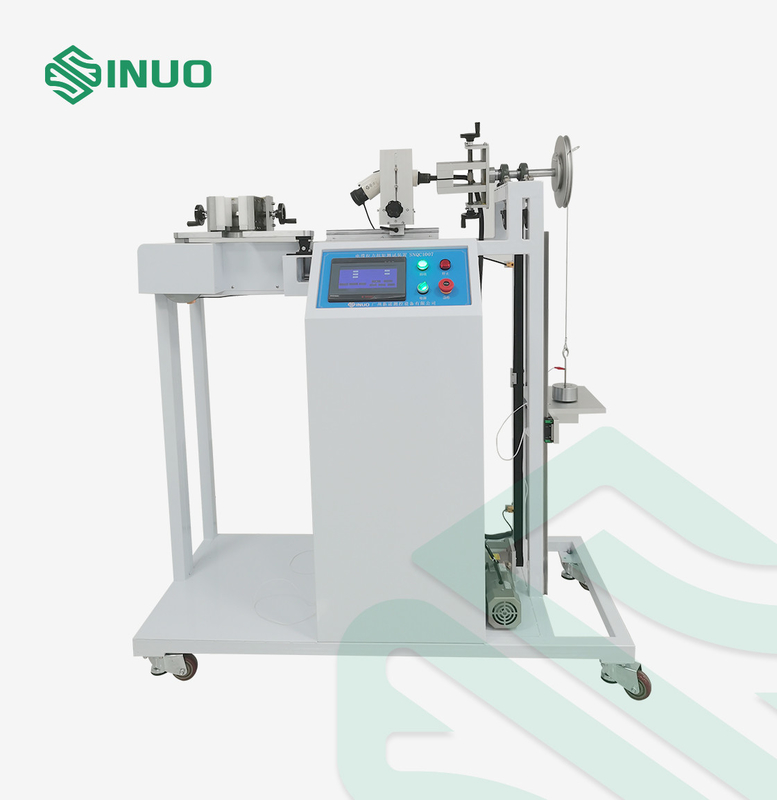

IEC 61851 Cable Anchorage Pull Force And Torque Test Apparatus 2
