High And Low Temperature Tensile Testing Machine 5kN Mechanical Performance Test

High And Low Temperature Tensile Testing Machine 5kN Mechanical Performance Test

Brand Name:	Sinuo
Model Number:	SNB02C-5kN
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Force Range:

0–500kg

Effective Test Width:

400mm

Test Stroke:

800mm

Load Resolution:

1/250,000

Speed Test Range:

0.05–500mm/min

Working Power Supply:

AC220V 50Hz

Working Power:

1.0KW

Total Weight:

600kg

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Mechanical Performance Tensile Testing Machine

High Low Temperature Tensile Testing Machine

5kN Tensile Testing Machine

Product Description

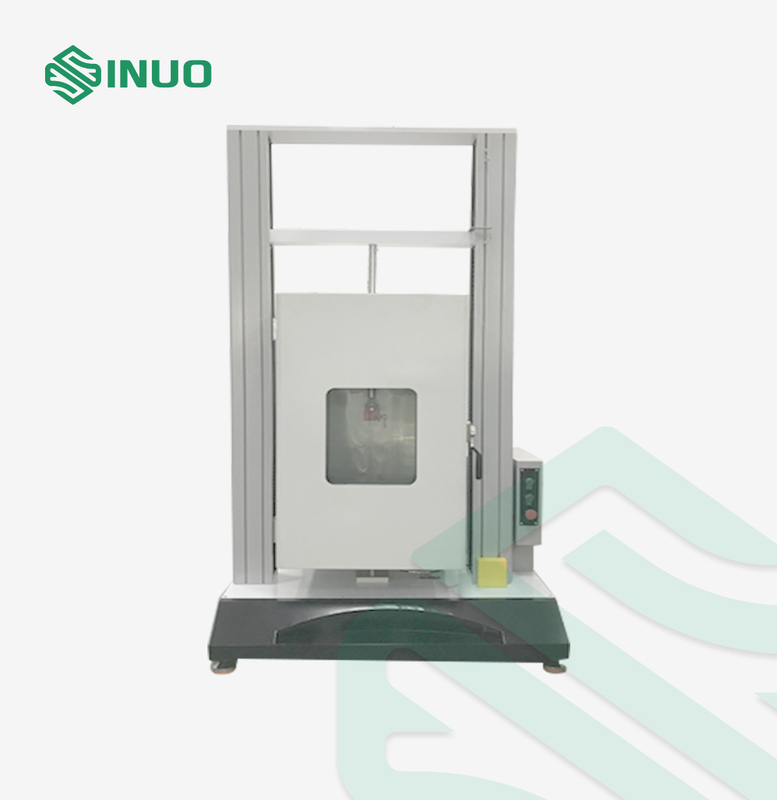

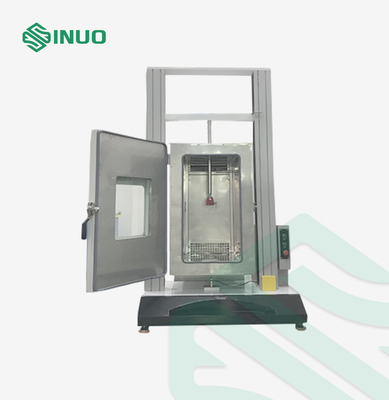

High And Low Temperature Tensile Testing Machine 5kN Mechanical Performance Test

Equipment Overview

This machine is controlled by a computer and is widely used in mechanical performance tests of non-metallic materials such as rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics, metal wires, metal foils, metal plates and metal rods. It can also be used with special fixtures. It is suitable for tensile, compression, peeling, shearing, tearing, and bending (folding) tests of various finished products. It can print multiple data, and can make graphic output comparisons according to different data, with high control precision and easy operation; it adopts modular design, and various accessories are complete in variety and flexible in matching.

Technical Parameters

Test Force Range	0–500kg
Unit Switch	Kg, N, Lb (freely switchable)
Load Resolution	1/250,000
Load Accuracy	±0.5%
Displacement Switch	mm, cm, in
Force Measurement Display Accuracy	0.001Kg
Displacement Measurement Display Accuracy	0.001mm
Deformation measuring device	large deformation measuring device
Deformation measurement range	0.2%—100%FS
Test Stroke	800mm (including fixture)
Effective Test Width	400mm
Speed Test Range	0.05–500mm/min, stepless speed regulation
Drive System	Uses servo motor, Taiwan Hiwin ball screw, and TM2101 software
Safety Features	Overload emergency stop, upper and lower stroke limit devices, automatic stop function at breakpoints
Test Fixture	Customized fixture based on product
Working Power Supply	AC220V 50Hz
Working Power	1.0KW
Total Weight	Approximately 600kg

Details

High And Low Temperature Tensile Testing Machine 5kN Mechanical Performance Test 0
