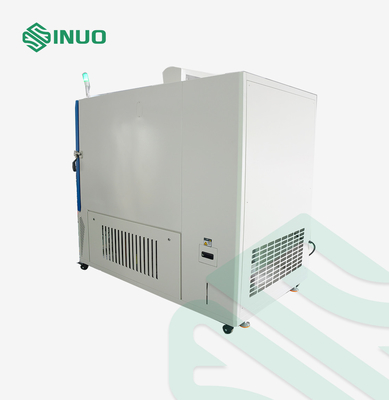

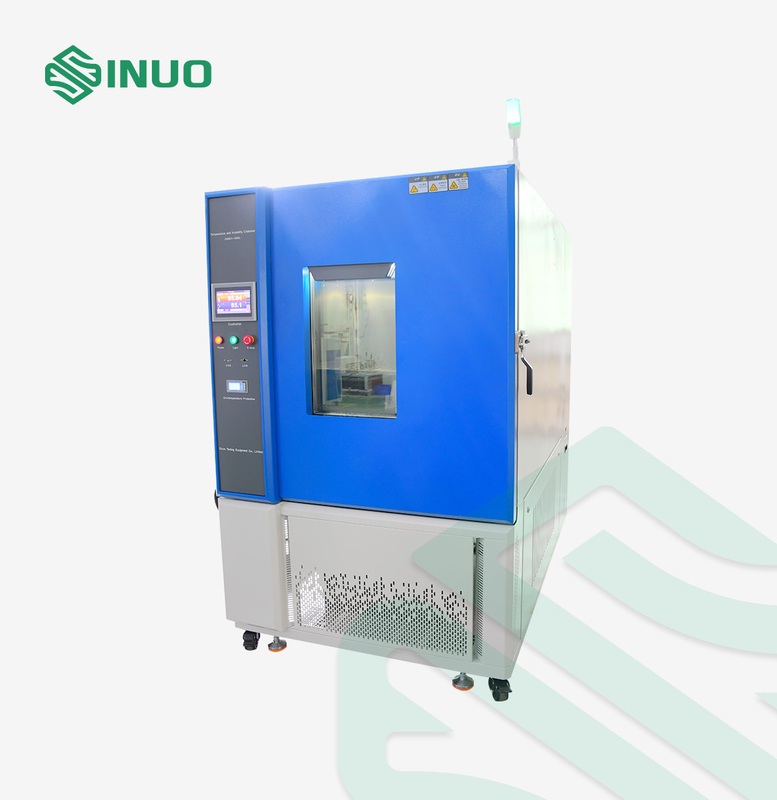

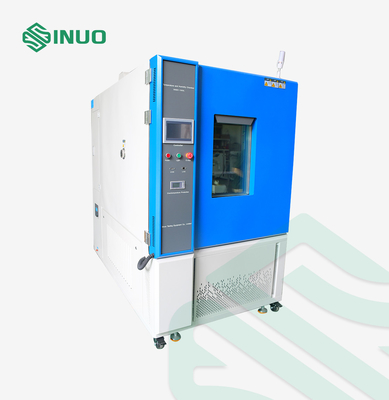

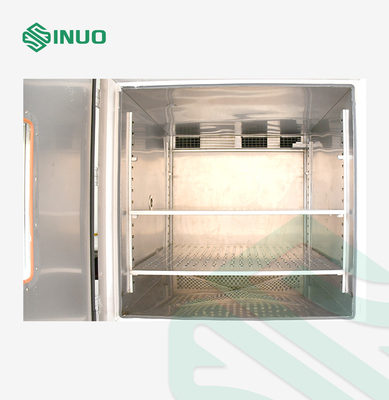

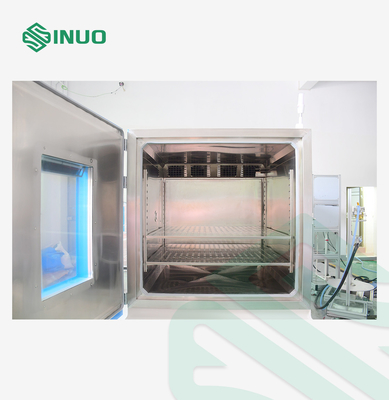

Environmental Testing Temperature And Humidity Chamber 1000L IEC60068-2-78

Environmental Testing Temperature And Humidity Chamber 1000L IEC60068-2-78

Brand Name:	Sinuo
Model Number:	SN881-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Dimensions:

1000*1000*1000 Mm

Outer Chamber Dimensions:

1280*2150*2050 Mm

Humidity Range:

20%～98%RH

Temperature Range:

-70 °C ~+150°C

Humidity Fluctuation:

≤2.5%

Heating Rate:

≧2-3°C/min

Cooling Rate:

≧1°C/min

Temperature Fluctuation:

±0.5℃

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

1000L Temperature Humidity Chamber

Environmental Testing Temperature Humidity Chamber

IEC60068-2-78 Temperature Humidity Chamber

Product Description

Environmental Testing Temperature and Humidity Chamber 1000L IEC60068-2-78

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

Equipment Overview

This test chamber is used for cold, heat, humidity, and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the product's reliability of storage and transportation under high and low temperatures alternating heat and humidity.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	100010001000 mm	128021502050 mm
Temperature Range	-70 °C ~+150°C
Humidity Range	20%～98%RH
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	≧2-3°C/min
Cooling Rate	≧1°C/min, average no load
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)

c) Controller specifications

Technical indicators:

1. 7-inch color touch screen

2. Two control modes: program/fixed value

3. Sensor type: two PT100 inputs (electronic sensor input optional)

4. Output mode: voltage pulse (SSR)/control output: 2 (temperature/humidity)/2 4-20mA analog output/16 relay outputs (passive)

5. Control signal: 8 IS control signals/8 T control signals/4 AL control signals

6. Alarm signal: 16 DI external obstacle alarms

7. Temperature measurement range: -90.00℃--200.00℃, (optional -90.00℃--300.00℃) error ±0.2℃

8. Humidity measurement range: 1.0%--100%RH, error ±1%RH

9. Communication interface: (RS232/RS485, maximum communication distance 1.2km [optical fiber up to 30km])

10. Interface language type: Chinese/English

11. Equipped with English input function

12. Can be used with a printer (USB function optional)

13. A variety of signal combination relay outputs, and the signals can be subjected to logical operations (NOT, AND, OR, NOR, XOR), referred to as PLC programming ability

14. Diversified relay control methods: parameter->relay mode, relay->parameter mode, logic combination mode, composite signal mode

15. Program editing: 120 groups of programs can be programmed, and each group of programs can program up to 100 segments

Cooling system
Operation mode	Air-cooled mechanical compression single-stage refrigeration mode
Heating and cooling devices	1. Hitachi or Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method). 2. Cooling method: air cooling
Heat and cold exchange device	Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type.
Heating load adjustment	1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology. 2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving.
Refrigeration compressor	Hitachi or Emerson low temperature and low noise scroll compressor

Details
