Vertical Sine Vibration Test System EV Battery Testing Equipment

Vertical Sine Vibration Test System EV Battery Testing Equipment

Brand Name:	Sinuo
Model Number:	SN553-EV101VT20SM.VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Type:

Sine Sweep; Random;

Frequency Range:

1～6000Hz

Maximum Displacement:

25mm

Maximum Speed:

1.3m/s

Maximum Load:

50 Kg

Dynamic Weight:

1.5 Kg

Moving Coil Diameter:

Ф120 Mm

Allowable Eccentric Moment:

220.N.M

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Vibration Test System

EV Battery Testing System

Vertical Sine Vibration Test System

Product Description

Vertical Sine Vibration Test System EV Battery Testing Equipment

Complied Standards & Clauses

Sinuo can provide you with the entire excitation and testing solution, and certify the quality of your products according to national and international standards such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.

Equipment Overview

Vibration testing is to stimulate or impact a component or device to see how it will react in a real environment. The application range of vibration testing is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Technical Parameters

Vibration generator A01S12
Rated sinusoidal thrust (Pk)		100Kg.f peak (1000N)
Rated random thrust (RMS)		100Kg.f r.ms (1000N) @ISO5344
Impact thrust (Pk)		200Kg.f peak (2KN) @6ms
Frequency range		1～6000Hz
Maximum displacement (p-p)		25mm (1inch)
Maximum speed		1.3m/s
Maximum acceleration		Sine:60g (588 m/s²) ；Random:60g(588m/s²)
Maximum load		50 kg
Moving coil diameter		Ф120 mm
Dynamic weight		1.5 kg
Allowable eccentric moment		220.N.M
Fundamental Resonance Frequency (Bare table)		4700Hz (nom.) +/- 5%
Moving coil mounting screw hole		Stainless Steel Inserts of M6 . (7PCS)
Vibration machine body size		370L×460D×500H mm
Weight		140Kg
Power amplifier PA103EF
Rated output power		1KVA
Signal-to-Noise Ratio		Greater than 70 dB
Amplifier efficiency		Greater than 90%
Amplifier weight		15Kg
Amplifier size		430L×308D×117H mm
Protection function		●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Module O/T ● Shaker Temp ●Shaker Travel
Electrical requirements:
Power supply	3-phase 380V/50Hz, 15KVA
Ground resistance	≤4Ω

Details

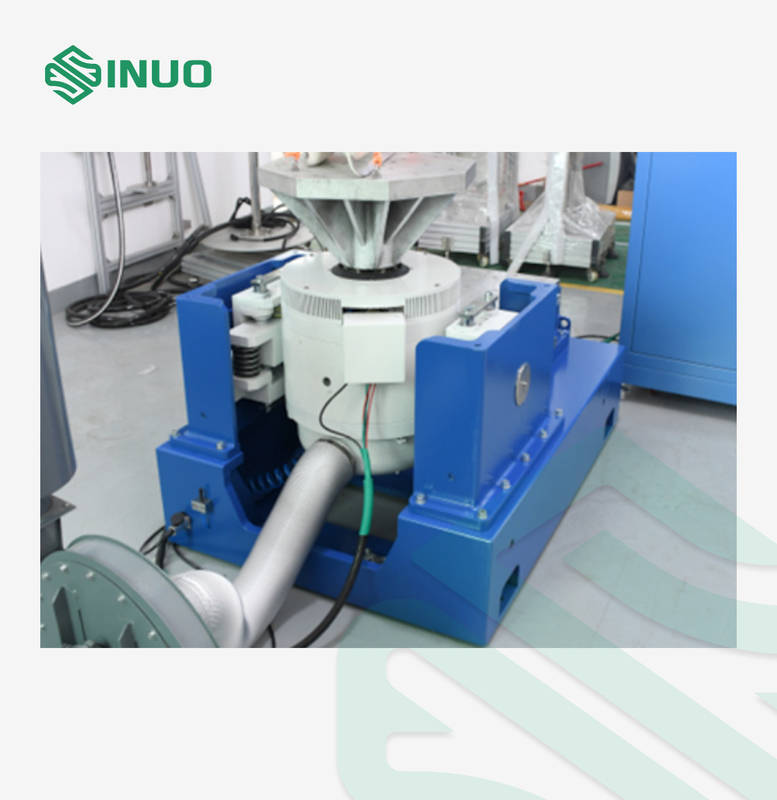

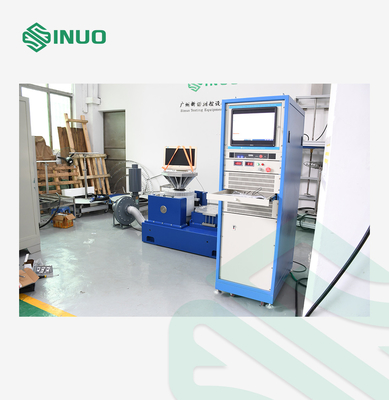

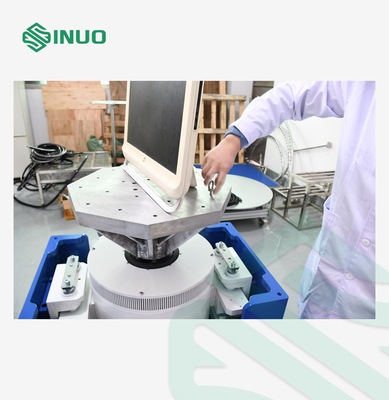

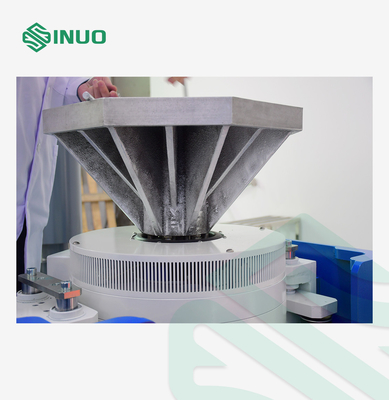

Vertical Sine Vibration Test System EV Battery Testing Equipment 0
