Gantry Type Tensile Test Equipment 5kN Compression Bending Test

Gantry Type Tensile Test Equipment 5kN Compression Bending Test

Brand Name:	Sinuo
Model Number:	SNB02C-5kN
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Force Range:

0–10kN

Force Measurement Accurac:

0.0005kN

Deformation Measurement Range:

0.2%—100%FS

Speed Test Range:

0.01-500mm /min

Test Effective Width:

400mm

Working Power Supply:

AC 230V/50HZ

Machine Size:

800×500×1500mm

Machine Weight:

200KG

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Bending Tensile Test Equipment

5kN Tensile Test Equipment

Gantry Tensile Test Equipment

Product Description

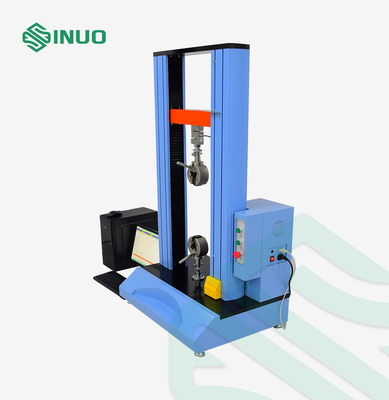

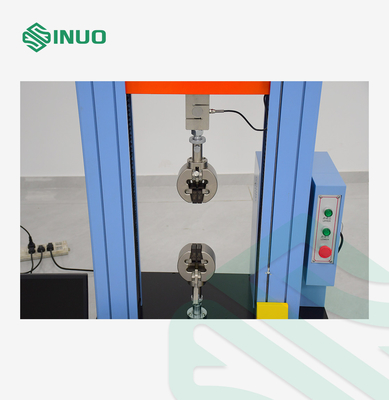

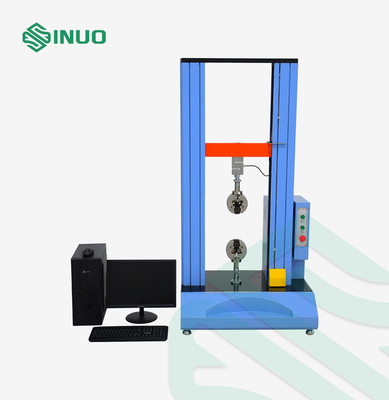

Gantry Type Tensile Test Equipment 5kN Compression Bending Test

Equipment Overview

This machine is controlled by a computer and is widely used in mechanical performance tests of non-metallic materials such as rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics, metal wires, metal foils, metal plates and metal rods. It can also be used with special fixtures. It is suitable for tensile, compression, peeling, shearing, tearing, and bending (folding) tests of various finished products. It can print multiple data, and can make graphic output comparisons according to different data, with high control precision and easy operation; it adopts modular design, and various accessories are complete in variety and flexible in matching.

Control software introduction:

1.Software operating system language: English.

2. Force value unit: N, KN, Kgf, Lbf, Mpa

3. Length unit: mm, cm, inch can be freely converted

4. Control mode: software to set speed, set load break (rupture), running time and other control modes

5. Type of curve: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time. The vertical and horizontal coordinates of the curve can be set arbitrarily.

Technical Parameters

Test Force Range	0–10kN
Displacement switch	mm, cm, in
Displacement measurement displays accuracy	0.0001mm
Deformation measuring device	0.2%—100%FS
Test effective width	400mm
Test stroke	800mm
Working power supply	AC 230V/50HZ
Power	1.0KW
Machine size	about 800×500×1500mm
Machine weight	about 200KG
Load analysis	1/250000
Load accuracy	±0.5%
Safety device	overload emergency stop device, up and down travel limit device, automatic breakpoint stop function

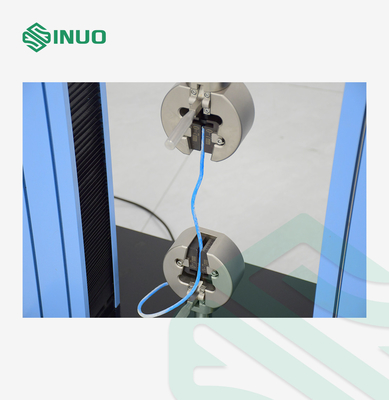

Fixture	a set of standard universal fixture (0~7mm opening),if customer needs customized one, please tell us the details before placing the order
Operation mode	Computer control, hierarchical mode of operation coupled with detailed help documents and tips make it the most easy-to-use software in the testing machine industry

Configuration list:

1. Testing machine host	A Set
2. Servo motor	A Set
3.High quality and high precision load sensor	One PC
4. Deceleration system	A Set
5. Taiwan ZPT ball screw	A Set
6. Universal fixture	A Set
7. Large deformation measurement system	A Set
8. TM2101 measurement software	A Set
9. Computer	A Set
