IPX5 Waterproof Testing Spray Test System For Charging Station IEC 60529

IPX5 Waterproof Testing Spray Test System For Charging Station IEC 60529

Brand Name:	Sinuo
Model Number:	SN448-E4
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Water Spray Flow:

12.5±0.625(L/min)

Water Spray Pressure:

30～150kPa

Water Tank Size:

1000×3000×1000mm（W*D*H)

Water Tank Material:

SUS304 Stainless Steel

Existing Room Size:

6*8m(L*W)

Customer Sample Specifications:

3*2.5*3m(L*W*H)

Spray Distance:

2.5 To 3 Meters

Testing Time:

1s To 9999h,59 Min, And 59s

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

IPX5 Waterproof Testing Spray System

IEC 60529 Waterproof Testing Spray System

Charging Station Waterproof Testing Spray System

Product Description

IPX5 Waterproof Testing Spray Test System for Charging Station IEC 60529

Complied Standards & Clauses

Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.

Equipment Overview

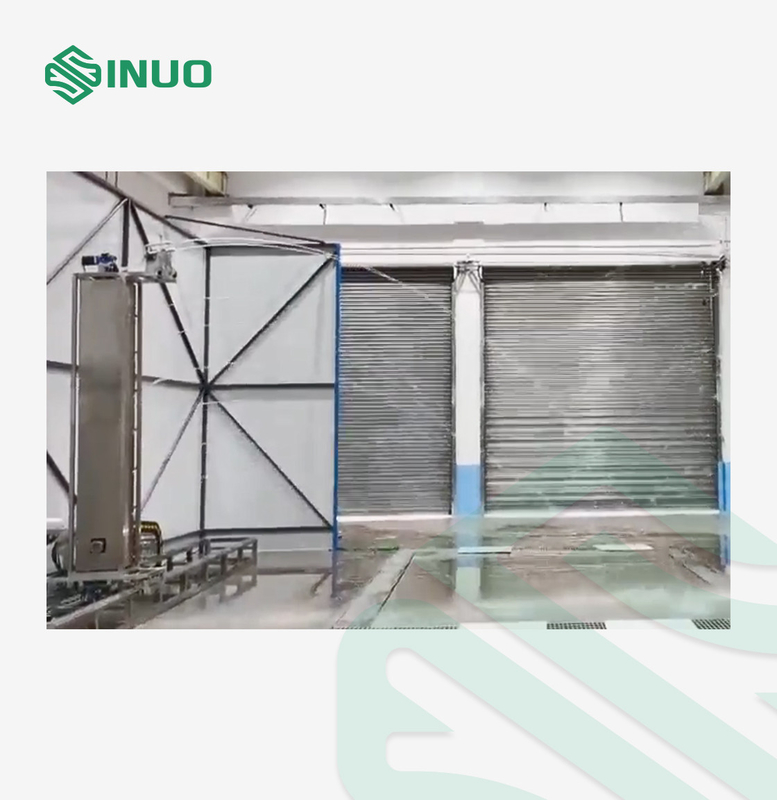

Application: used for conducting IPX5 waterproof testing on outdoor ESS systems, the automatic spraying system is applied to the front, rear, left, right, and top surfaces of the outdoor ESS system.

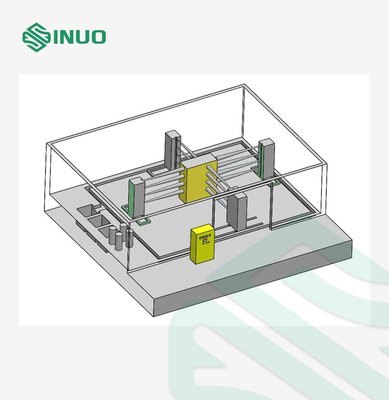

The equipment consists mainly of a water collection pool, water storage tank, water replenishment system, drainage system, spraying system, electrical control system, and pump system.

Technical Parameters

Water spray pressure	30～150kPa
Inner diameter of spray hole	φ6.3 mm(IPX5)
Water spray flow	12.5±0.625(L/min)(IPX5)
Pre-set testing time	Adjustable from 1s to 9999h,59 min, and 59s.
Spray distance	The distance between the outdoor ESS system and the spray nozzle is 2.5 to 3 meters.
Spray gun material	304 Stainless steel
Shipping method	The outdoor ESS system enters the rain test area via a gantry crane (the customer’s site is already equipped).
Movement speed	The movement speed of the support frame is adjustable.
Spray coverage requirements	The automatic spraying system needs to cover the front, rear, left, right, and top surfaces.
Spray method	The entire test process involves fully automatic spraying, and the movement path of the spraying system does not interfere with the object being tested. The test process complies with the IPX5 protection level requirements as specified in IEC 60529:2013.
Testing time	Adjustable from 1s to 9999h,59 min, and 59s.

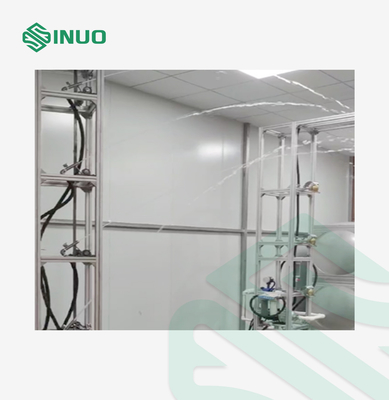

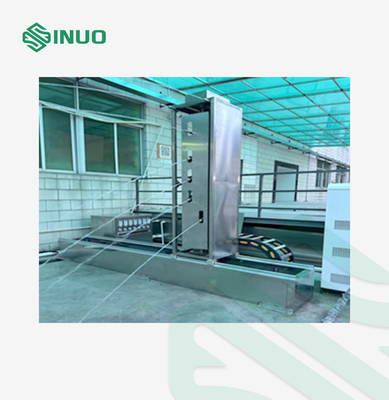

Side-moving spraying frame
Main parameters of side movable spray rack	The frame is made of 40403mm aluminum
	The sealing plate is made of 1.2mm stainless steel 304# plate
	IPX5 mobile device: servo motor gear connected to the rack for transmission
	Swing transmission spray device: adjustable eccentric wheel swing mechanism (swing angle is achieved by adjusting the eccentric distance)
	Spraying frame stroke: Equipped with a servo motor gear rack mechanism, the movable stroke is 3 m.
Swing motor	Servo motor and reducer
Mobile Motor	Servo motor and reducer
Gear	Stainless steel gear
Rack	Stainless steel rack
