225L High Temperature Heating Oven Drying Oven IEC60068-2-1

225L High Temperature Heating Oven Drying Oven IEC60068-2-1

Brand Name:	Sinuo
Model Number:	SN889-225L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Working Volum:

225L

Temperature Range:

RT+10°C ~300°C

Power Rating:

2600 W

Temperature Uniformity:

±2.5°C

Display Resolution:

0.1°C

Temperature Fluctuation:

±1°C

Studio Size:

50cm*60cm**75cm

Outer Dimensions:

70cm*71cm*110cm

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IEC60068-2-1 Heating Oven

High Temperature Heating Oven

225L Heating Oven

Product Description

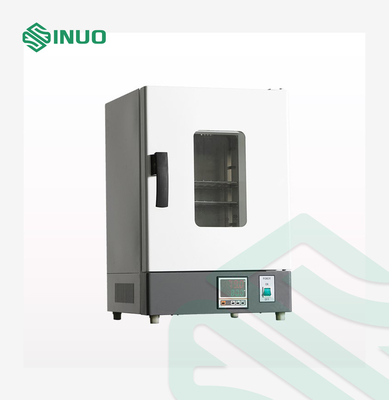

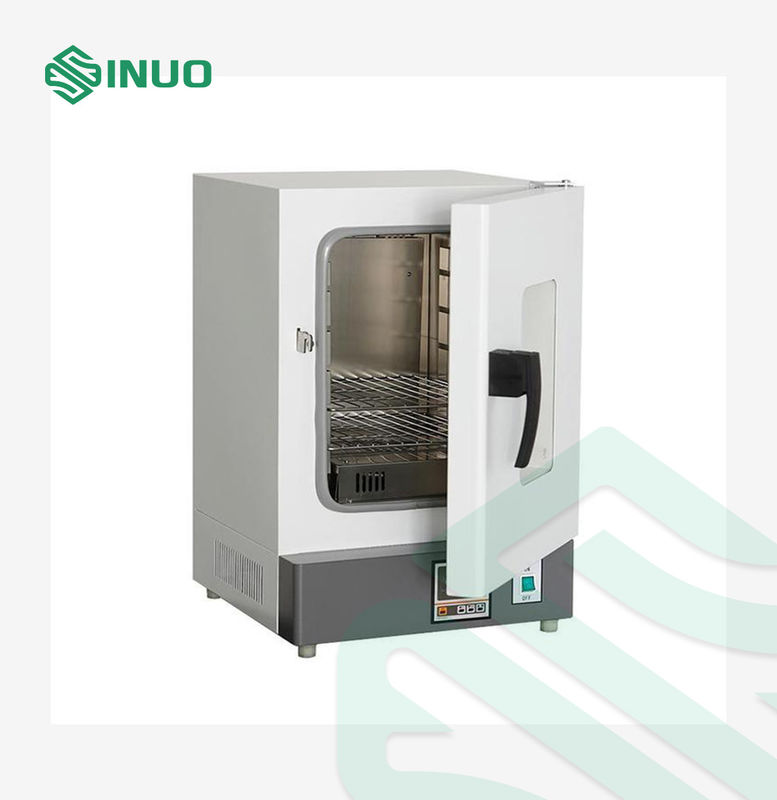

225L High Temperature Heating Oven Drying Oven IEC60068-2-1

Complied Standards & Clauses

This heating cabinet is required by IEC 60227-1 Table 1 Reference No.4 (IEC 60811-509), Table 1 Reference No.5 (IEC 60811-508), etc.

Product Overview

1. The drying oven must be good grounded to ensure safe.

2. The drying oven should be placed in a room with good ventilation conditions and no

inflammable and explosive materials or toxic substances around it.

3. There is no explosion-proof device in the drying oven, don’t put inflammable and

explosive materials into it for drying.

4. Do not overcrowd the objects in the oven, especially around the temperature sensor, make room for hot air circulation.

5. Do not wipe the machine surface with acid or alkali or corrosive substances. The inside

and outside of the drying oven should be kept clean. If it is not used for a long time, cover

it correctly and put in a dry room. If any abnormality in use, please cut off the power supply

and contact us in time.

6.Be careful of scalding when using in high temperature.

Technical Parameters

Power supply	AC 230V, 60Hz
Temperature Range	RT+10°C ~300°C
Display Resolution	0.1°C
Temperature Fluctuation	±1°C
Power Rating	2600 W
Temperature Uniformity	±2.5°C
Display Method	LCD screen
Volume / Working Area Size (W* D* H)	50cm60cm*75cm
Outer Dimensions (W* D* H)	70cm71cm110cm
Communication Interface	R485 interface on the right side of the device
Structure Type	Vertical
