IPX56 Waterproof Horizontal Strong Water Spray Test Chamber 2744L

IPX56 Waterproof Horizontal Strong Water Spray Test Chamber 2744L

Brand Name:	Sinuo
Model Number:	SN449-2744L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Size:

1400*1400*1400mm（W×D×H）

Outer Chamber Size:

4200*1460*2200mm（W×D×H）

Turntable Diameter:

600 Mm

Turntable Load:

20 Kg

Turntable Speed:

1-7R/min

Water Spray Pressure:

30～200kpa

Inner Chamber Material:

SUS304# Stainless Steel

Outer Chamber Material:

A3 Iron Plate Spraying

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

2744L Spray Test Chamber

IPX56 Waterproof Spray Test Chamber

Horizontal Spray Test Chamber

Product Description

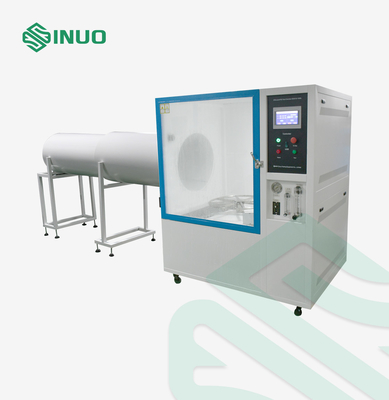

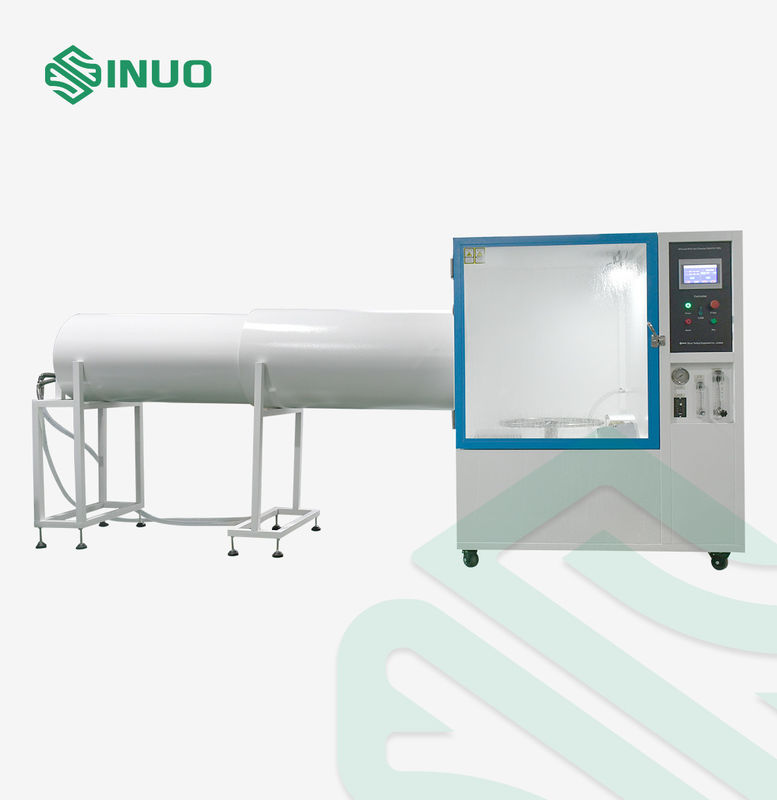

IPX56 Waterproof Horizontal Strong Water Spray Test Chamber 2744L

Complied Standards & Clauses

Conforms to IEC 60529, etc.

Equipment Overview

This equipment is designed to test the performance of products in rainy climate conditions, simulating storage, transportation, and usage environments. It is mainly used for electronic and electrical products, lamps, electrical cabinets, components, automobiles, motorcycles, and their parts. The equipment checks the physical properties and performance of these products under simulated rainy conditions. After testing, the product's performance is evaluated to determine if it meets required standards, helping with product design, improvement, verification, and factory inspections.

Technical Parameters

IP56-2744L
Inner chamber size	140014001400mm(W×D×H)
Outer chamber size	About 420014602200mm(W×D×H)
Turntable diameter	600 mm
Turntable load	20 kg

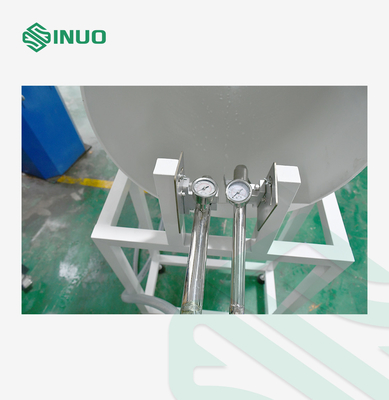

Number of nozzle	2 pcs; 1 pcs IPX5 nozzle and 1 pcs IPX6 nozzle
Water surface	Product side
Distance from nozzle to sample	2500*3000mm (between)
Inner diameter of spray hole	IPX5 (level) φ6.3 mm IPX6 (level) φ12.5 mm
Water spray flow	IPX5 (level) 12.5 ± 0.625 (L/min) IPX6 (level) 100 ± 5 (L/min)
Pipe diameter	One piece of 1/4-inch high-pressure soft hose and one piece of 1-inch high-pressure soft hose.
Water spray pressure	30～200kpa (adjusted by flow rate)
Turntable speed	1-7R/min
Water spray duration	3, 10, 30, 9999min (adjustable)
Run time control	1～9999min(adjustable)

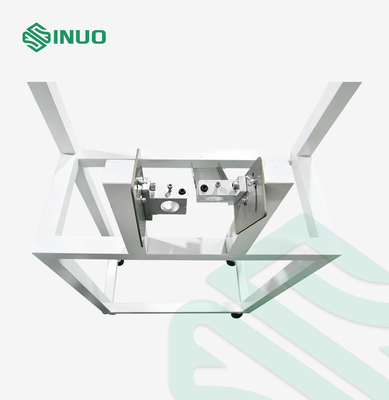

Electric oscillating device for sprinkler nozzle	1) The nozzle can be electrically swung up and down; 2) There is a protective cover outside the nozzle mechanism; 3) The nozzle can be electrically swung up and down to turn on and off; You can select it on the touch screen .

Details

IPX56 Waterproof Horizontal Strong Water Spray Test Chamber 2744L 2
