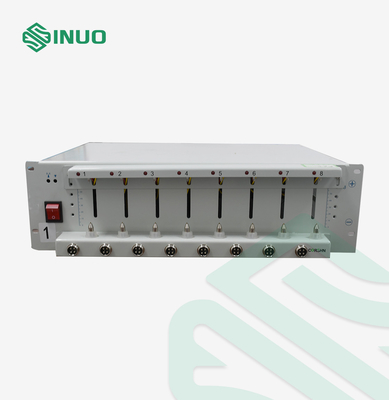

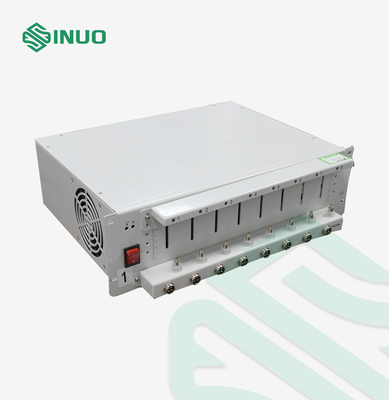

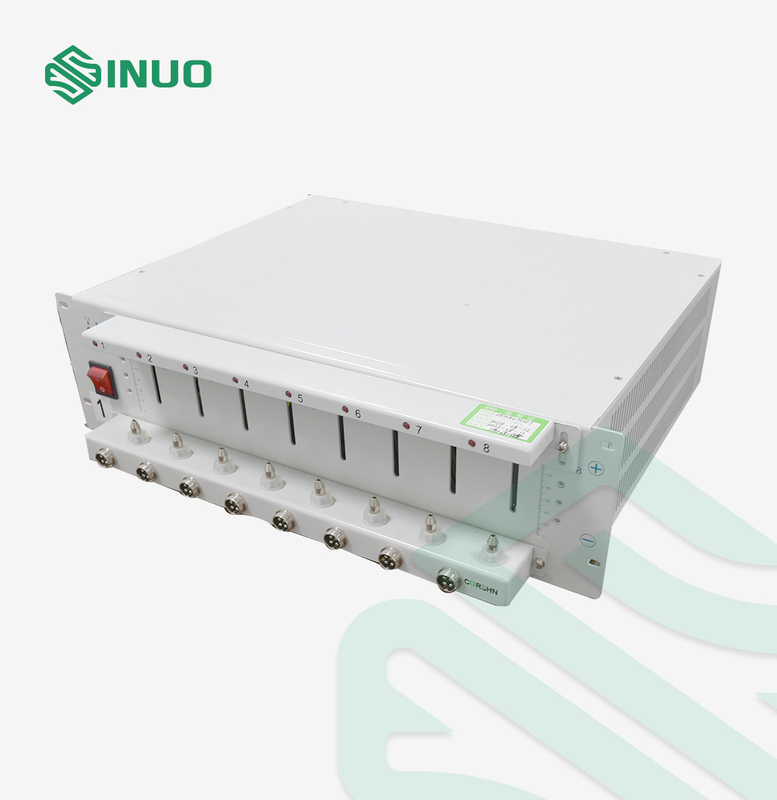

High-precision Lithium-ion Battery Cell Testing Equipment 5V 240A

High-precision Lithium-ion Battery Cell Testing Equipment 5V 240A

Brand Name:	Sinuo
Model Number:	SN552-5V240A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Charging Voltage Range:

0V-5V

Discharge Voltage Range:

1.3V-5V

Maximum Output Current:

±240A

Minimum Output Current:

±600mA

Charging Response Time:

≤20ms

Discharge Response Time:

≤ 20ms

Accuracy:

±(0.05%RD+0.05%FS)

Resolution:

1000mS

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Lithium-ion Battery Cell Testing Equipment

240A Battery Cell Testing Equipment

Product Description

High-precision Lithium-ion Battery Cell Testing Equipment 5V 240A

Equipment Overview

The feedback-type high-precision cell testing equipment, independently developed by Sinuo, is designed to test various performance metrics of lithium-ion batteries, including formation, capacity grading, state of charge, overcharge, and over-discharge. This equipment features high power, efficiency, accuracy, and performance. By utilizing energy feedback technology, it significantly reduces heat emission, energy consumption, and operating costs.

Technical Parameters

Model		SN552-5V240A
Number of main channels		2 channels/set
Channel action mode		Completely independent
Main channel working mode		Charging: constant current charging CC, constant voltage charging CV, constant current constant voltage charging CCCV, constant current constant voltage conversion without impact during charging; Discharge: constant current discharge CD, constant power discharge CP, constant voltage discharge; Stand still, stop.
Main channel test abort condition		Time, voltage, current, capacity, etc.
Main channel voltage	Charging voltage range	0V-5V
	Discharge voltage range	1.3V-5V (1.3V is the device port voltage)
	Accuracy	±(0.05%RD+0.05%FS)
	Resolution	0.1mV
Main channel current	Maximum output current	±240A
	Minimum output current	±600mA
	Accuracy	±(0.05%RD+0.05%FS)
	Resolution	0.1mA
	Current start response time	≤20ms (≤10ms optional)
Time	Resolution	1000mS
Power	Output power	Single channel continuous operation maximum power 1200W
Power	Stability	±0.1%FS
The highest efficiency of charging and discharging		75%
Feed network	Harmonic	≤3%
Feed network	Power factor	≥0.99
Auxiliary channel parameter cutoff function		When the auxiliary channel signal reaches certain conditions, the main channel steps can be set to stop or switch.
