EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus

EVSE IK Impact Test High Energy Pendulum Hammer Impact Test Apparatus

Brand Name:	Sinuo
Model Number:	SN2212C
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Striking Elements:

1J, 2J, 5J, 10J, 20J

Equivalent Mass:

0.2/0.25kg 1.7kg ,500g,5 Kg,5 Kg

Pendulum Tube Length:

1000mm

Pendulum Tube Diameter:

15.9 Mm

Pendulum Tube Thickness:

1.5 Mm

Height Of Fall:

0-500mm

Impact Stroke:

200-800mm

Base Plate:

Thicken Load-bearing Steel Base Plate

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

EVSE IK Impact Test Apparatus

IK Impact Test Apparatus

Product Description

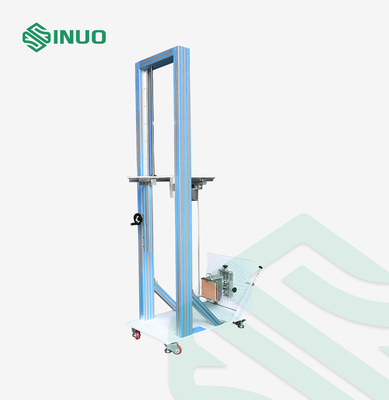

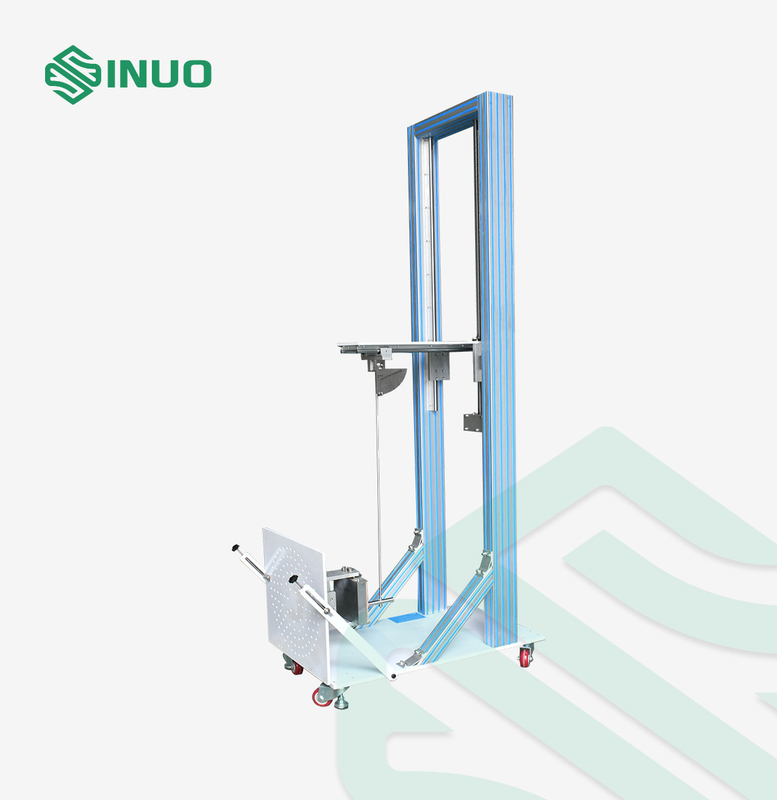

EVSE IK Impact test High Energy Pendulum Hammer Impact Test Apparatus

Equipment Overview

This test apparatus is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.

It conforms to standards:

IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 24.1 and figure22-26

IEC60669-1:2017 “Switches for household and similar fixed-electrical installations - Part1: General requirements” clause 20.1

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)”

Technical Parameters

Technical Parameters

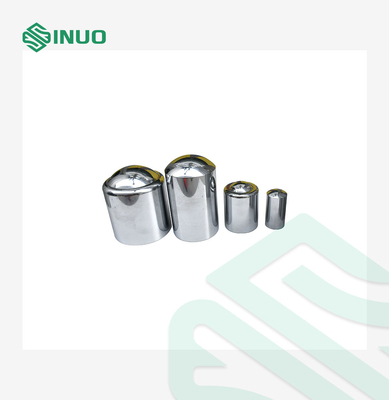

Striking Elements (Energy/J)	1J (IK01 to IK06), 2J (IK07), 5J (IK08),10J(IK09), 20J(IK10)
Equivalent Mass kg	0.2/0.25kg 1.7kg ,500g,5 kg,5 kg are for 2J,5J, 10J,20J Sharp edged hammer
Striking Elements Material	1J hammer: steel with polyamide tip 2J,5J, 10J,20J hammers: steel Sharp edged hammer, steel
Pendulum Tube	Length 1000㎜,outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point	Can be electrically adjustable up and down, stroke: 200-800mm
Height of Fall	0-500mm, scale display The height can be adjusted by handwheel
Lifting	Manually lifting by rotate the handle wheel
Impact element release method	Manually release by pulling out the latch

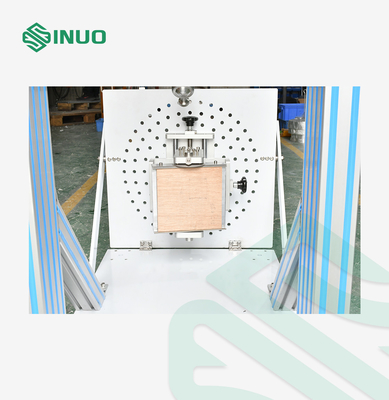

Base plate	Thicken load-bearing steel base plate
Way of moving	With casters, it can be moved to the position of the impact point of the sample
Anti-secondary impact function	Yes, automatic electric brake to prevent secondary impact

Details
