Lithium Battery Crush Testing Equipment UL 1642 0～20000N

Lithium Battery Crush Testing Equipment UL 1642 0～20000N

Brand Name:	Sinuo
Model Number:	SN554
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Residence Time:

0～999.9s

Test Stroke:

0～200mm

Test Force Value:

0～20000N

Operation Interface:

7-inch Color LCD Touch Screen

Power Supply:

AC220V±10%/50Hz

Drive Mode:

Servo Motor

Test Station:

Single Station

Control Method:

PLC Control

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

20000N Lithium Battery Crush Testing Equipment

Lithium Battery Crush Testing Equipment

Product Description

UL 1642 Lithium Battery Crush Battery Test Stroke 0～200mm Testing Equipment

Complied Standards & Clauses

Conforms to UL 1642, etc.

Product Overview

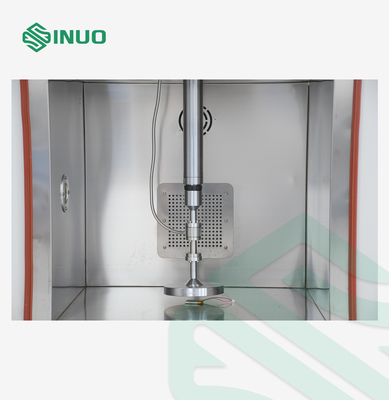

Test principle: place the battery between two plates and apply a squeezing force of 13.0±0.78kN to the plates. The battery should not have external short circuit, fire or explosion.

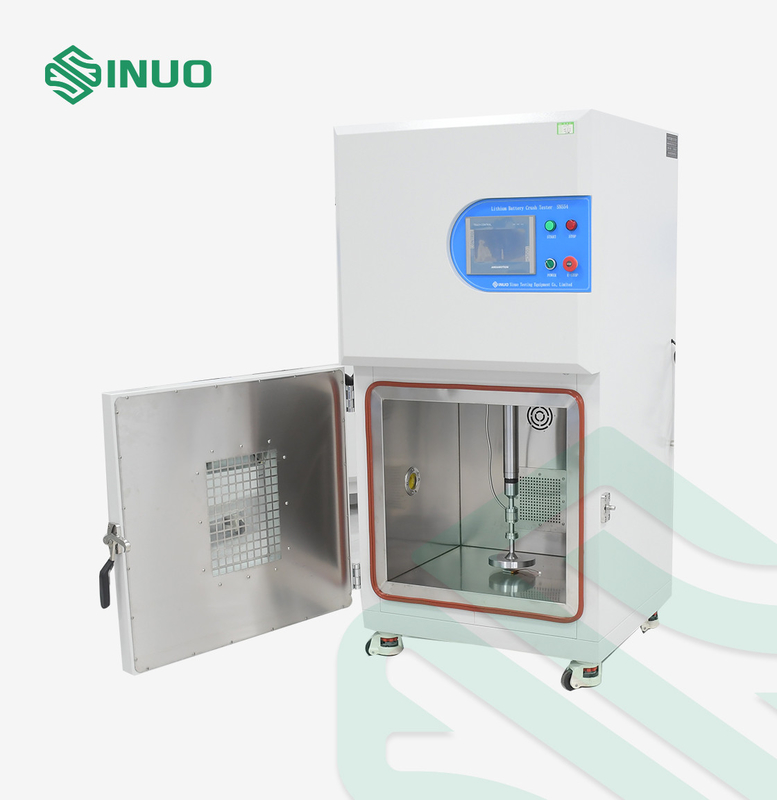

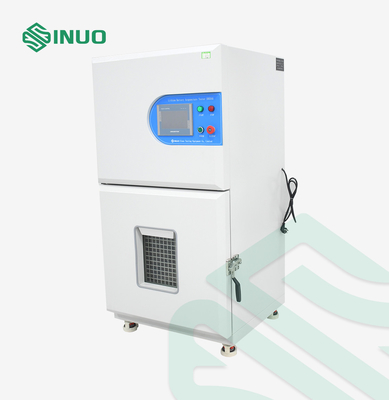

Equipment structure and features: one machine structure, the door uses explosion-proof lock and explosion-proof chain

Specimen and restrictions: battery.
Test purpose: used to simulate the extrusion of various types of batteries when they are used, transported, stored or processed as household waste.

Technical Parameters

Test environment	Atmospheric pressure 80～106kpa; ambient temperature 5～40°C. Relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation
Control method	PLC Control
Test station	Single statin

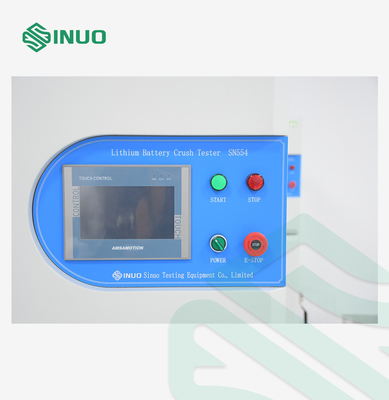

Operation interface	7-inch color LCD touch screen
Drive mode	Servo Motor
Test speed	0～10mm/s, can be preset
Test force value	0～20000N, can be preset
Test stroke	0～200mm, can be preset
Residence time	0～999.9s, can be preset
Power supply	AC220V±10%/50Hz
