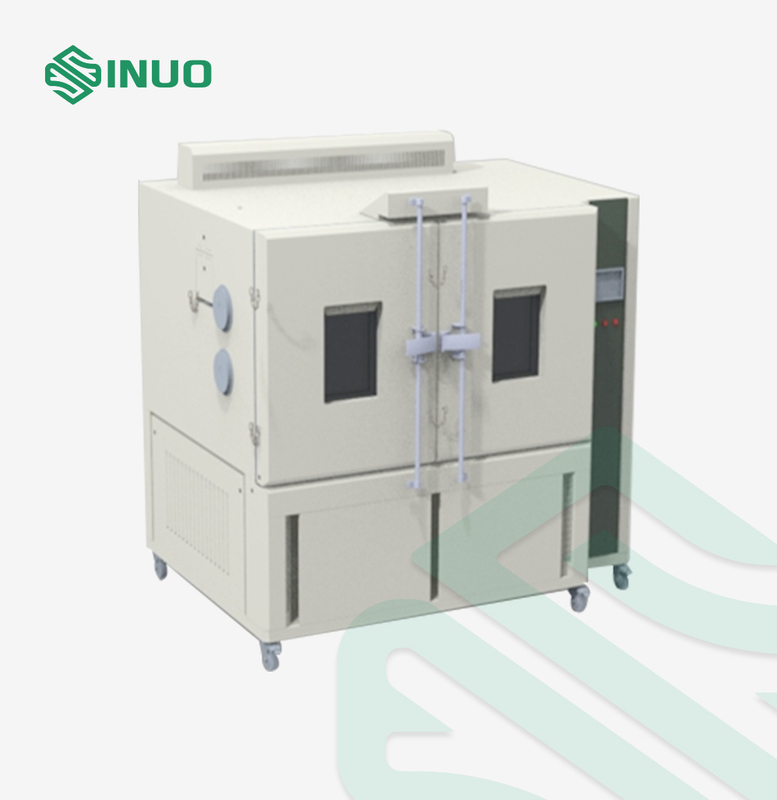

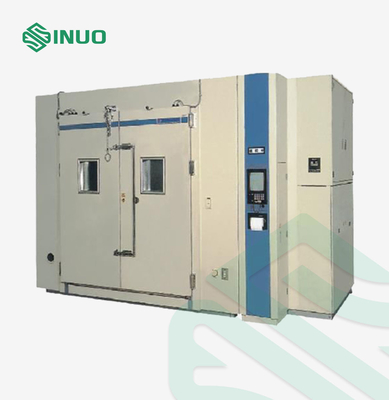

Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment

Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment

Brand Name:	Sinuo
Model Number:	SN552-1092L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Working Area:

W1300*700H*D1200mm

External Size:

W1875*1980H*1723 Mm

Temperature Range:

-70 °C ~+150°C

Temperature Fluctuation:

±0.5℃

Humidity Fluctuation:

≤2.5%

Temperature Uniformity:

≤±2.0℃

Cooling Rate:

+72℃→-40℃ No-load Linearity Within 30℃/min

Heating Rate:

-40℃→+72℃ No-load Linearity Within 30℃/min

Packaging Details:

Plywood case

Supply Ability:

10 sets/month

Highlight:

1092L Battery Test Chamber

1092L Battery Testing Equipment

EV Battery Testing Equipment

Product Description

Battery Explosion-proof Test Chamber 1092L EV Battery Testing Equipment

Complied Standards & Clauses

Conforms to IEC60068-2-2:2007, IEC60068-2-1:2007, etc.

Equipment Overview

Environmental conditions:

1. Temperature: 5℃～35℃

2. Relative humidity: ≤85%

3. Air pressure: 86kPa～106kPa

Limitation of specimen:

This test equipment prohibits:

1. Testing or storing samples of flammable, explosive, and volatile substances.

2. Testing or storing samples of corrosive substances.

3. Testing or storing biological samples.

4. Testing or storing samples of strong electromagnetic radiation sources.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	W1300700HD1200mm	W18751980H1723 mm
Temperature Range	-70 °C ~+150°C
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature uniformity	≤±2.0℃
Temperature deviation	≤±1.0℃
Heating Rate	-40℃→+72℃ No-load Linearity Within 30℃/min
Cooling Rate	+72℃→-40℃ No-load Linearity Within 30℃/min
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)

Explosion-proof pressure relief vent	A set of explosion-proof pressure relief vents is set on the left side of the equipment, with a size of 300mm×300mm. When the internal pressure of the box is ≥0.104MPa, the pressure relief vent will open automatically
Explosion-proof chain
Explosion-proof window

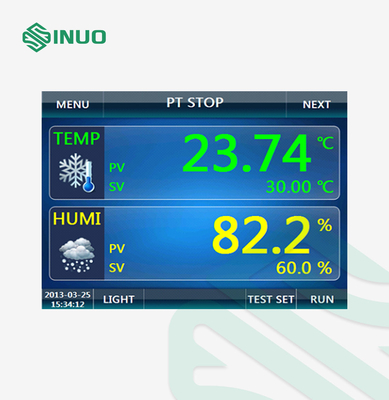

Control panel	Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button.
Mechanical room	Refrigeration unit, compressor water tray, pressure relief device, heating device
Power distribution cabinet	Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker
Heater	1. Fin-type radiator-shaped stainless steel electric heater 2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation 3. Heating power: approximately 3KW
Power cable hole	Located on the back of the chamber
