Charge And Discharge Test Battery Explosion-proof Test Chamber

Charge And Discharge Test Battery Explosion-proof Test Chamber

Brand Name:	Sinuo
Model Number:	SN552C
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Box Size:

500*500*500 (D*W*H)

Outer Box Size:

710*780*2060mm (W*D*H)

The Bottom Load Capacity:

150KG

Other Layer Load Capacity:

50KG

Inner Box Thickness:

1.00MM

Outer Box Thickness:

1.5MM

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Explosion-proof Battery Test Chamber

Discharge Battery Test Chamber

Charge Battery Test Chamber

Product Description

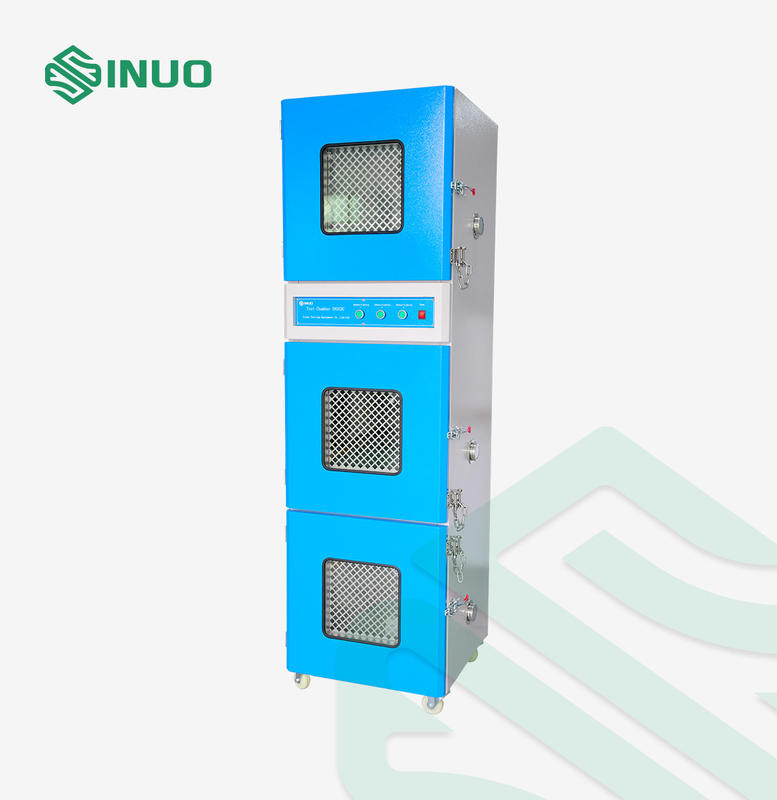

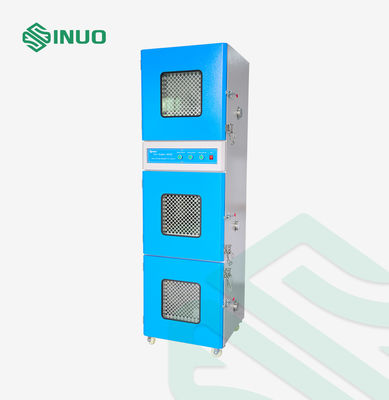

Charge and Discharge Test Battery Explosion-proof Test Chamber

Equipment Overview

The battery explosion-proof box is mainly used during battery overcharge and over-discharge &charge and discharge tests, for protection of the operator and the instrument.

The battery is placed in the explosion-proof box, the charge and discharge test equipment is external and should be prepared by user, not included in this explosion proof chamber,.

Technical Parameters

Equipment size	Test chamber size per layer: 500500500 (DWH),( Three zones structure, can be customized) Outer box size: 7107802060mm (WDH)
Equipment Material	Outer box: 1.5MM thick cold-rolled plate and high-temperature double-sided baking paint treatment. Inner box: SUS # 304 stainless steel, thickness 1.00MM thick.
Box load-bearing capacity	The bottom load capacity is not less than 150KG, the second/third layer load capacity is not less than 50KG

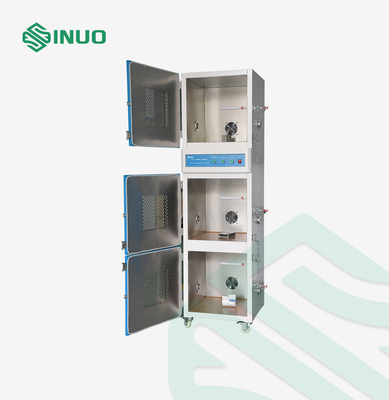

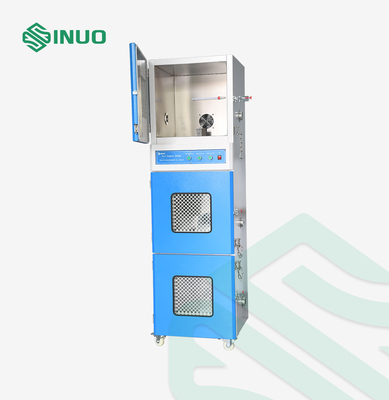

Equipment box door	Single door, double door, inner box door is made of stainless steel, and add silicone strip to tighten, open visual observation window on the front. The door is connected to the box by strong hinges, while each door adds an explosion-proof hinge, the right end of the chain is fixed in the latch side to prevent the explosion-proof box and door separation, effectively protecting the safety of testers.
Observation Window	Double tempered glass, tempered glass thickness of 10MM, double tempered glass between the addition of steel wire grid in the explosion can do traction, while preventing the glass explosion when the glass splash injury testers situation. Observation window sealing using 3M glass adhesive for sealing.
Box protection	The test chamber is fully laminated with Teflon tape inside to effectively prevent corrosion, insulation, flame retardant and easy to clean.

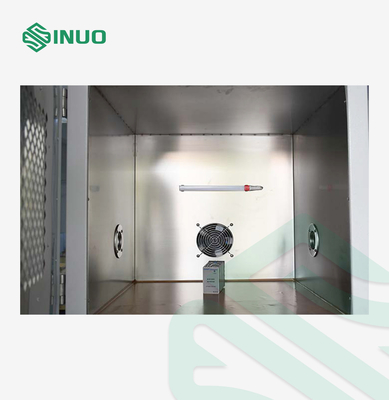

Wire loading port	Each layer of the box on the left and right sides of each open a round loading line mouth, Ф50MM diameter, easy to test the connection line through.
