High-Frequency Vibration Testing Machine For Battery Testing With 5000Kg Max Force

High-Frequency Vibration Testing Machine For Battery Testing With 5000Kg Max Force

Brand Name:	Sinuo
Model Number:	SN553-EV250H80VT80VCS-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sine Force:

5000Kg.f Peak(49KN)

Random Force:

5000Kg.f Peak(49KN)

Shock Force:

10000Kg.f Peak(98KN)

Frequency Range:

1～2700 Hz

Maximum Displacement:

51 Mm P-p

Maximum Speed:

2.0m/s

Packaging Details:

Plywood case

Supply Ability:

5 sets/month

Highlight:

Explosion-proof Battery Test Chamber

Discharge Battery Test Chamber

Charge Battery Test Chamber

Product Description

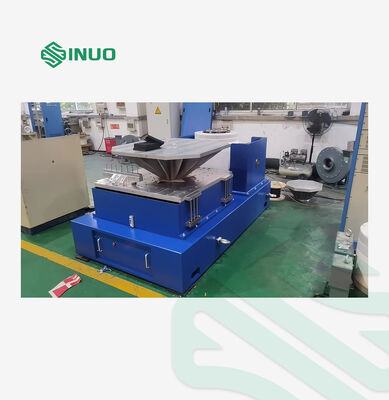

High-Frequency Vibration Testing Machine For Battery Testing

Product Application

Vibration testing evaluates how components and devices perform under real-world environmental conditions by subjecting them to controlled excitation or shock. This testing is essential across numerous industrial sectors including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.

Sinuo provides comprehensive excitation and testing solutions, ensuring product quality compliance with national and international standards such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Technical Specifications

A11S24 Electromagnetic Excitation Generator

Maximum sinusoidal excitation force	5000Kg.f peak (49KN)
Maximum random exciting force	5000Kg.f r.ms (49KN)
Maximum impact excitation force	10000Kg.f peak (98KN)
Frequency range	1-2700 Hz
Maximum displacement	51 mm p-p
Maximum speed	2.0 m/s
Maximum acceleration	100G (980 m/s²)
First-order resonant frequency	2500 Hz ±5%
Payload	1000 kg
Vibration isolation frequency	2.5 Hz
Moving coil diameter	Φ440 mm
Moving coil weight	50 kg
Flux leakage	<1mST (10gauss)
Allowable eccentric moment	>500 N.m
Equipment size	1600mm × 1180mm × 1280mm (excluding vertical expansion platform)
Equipment weight	4800 kg

LA50K Digital Switching Power Amplifier

Output power	50 KVA
Output voltage	110 Vrms
Output current	550 Arms
Conversion efficiency	>90%
SNR	≥65 dB
Amplifier size	910mm × 620mm × 2000mm

Servo Protection System

Comprehensive protection features including: Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss.

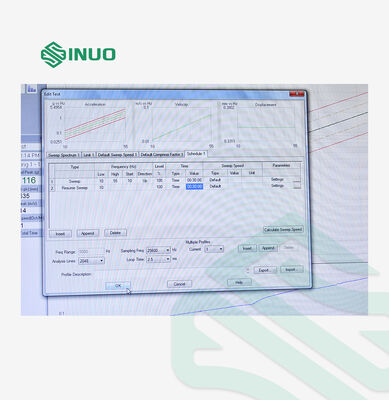

Digital Vibration Controller VCS-2

Hardware configuration	2 simultaneous input channels, 1 output channel (configurable with 2, 4, or 8 input channels)
Control function module	Sine, random, classical shock
Control computer	Original brand computer with LCD monitor
Software capabilities	English operation interface, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, automatic WORD test report generation, data display and storage, test parameter setting, and analysis functions

Acceleration Sensor LTE C04A07

Frequency range	1-7000 Hz
Sensitivity	30 mv/g
Temperature range	-40 to 160℃

VT2012 Vertical Extension Table

Material	Magnesium alloy, surface hard anodized
Table size	800 × 800 mm
Fixed hole	M10 rectangular distribution 100mm × 100mm stainless steel screw sleeve
Upper limit usage frequency	Sine 1500 Hz, Random 2000 Hz
Weight	Approximately 83 kg

HG80 Horizontal Oil Film Slide

Material	Magnesium alloy, surface hard anodized
Table size	800 × 800 mm
Fixed hole	M10 rectangular distribution 100mm × 100mm stainless steel screw sleeve
Upper limit usage frequency	Sine 1500 Hz, Random 2000 Hz
Weight	Approximately 115 kg

B152S Cooling Fan (Including Silencer)

Fan power	15 KW
Fan flow rate	81.6 m³/s
Fan pressure	0.075 kgf/cm²

Electrical Requirements

Power supply	AC3 phase 380V/50Hz, 95 KVA
Compressed air	0.6 MPa
Ground resistance	≤4 Ω
