EV Charging Gun Connector Withdrawal Force Test Equipment IEC 62196-1

EV Charging Gun Connector Withdrawal Force Test Equipment IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1013A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Station:

Single Station

Control Method:

Manual

Lifting Method:

Manual

Additional Weight:

0.8kg

Additional Weight Drop Height:

5cm

Additional Weight Drop Method:

Manual

Main Weight Of AC Charging Gun:

9.2kg

Main Weight Of DC Charging Gun:

13.2kg

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Gun Connector Withdrawal Force Test Equipment

EV Connector Testing Equipment IEC 62196-1

Product Description

EV Charging Gun Connector Withdrawal Force Test Equipment IEC 62196-1

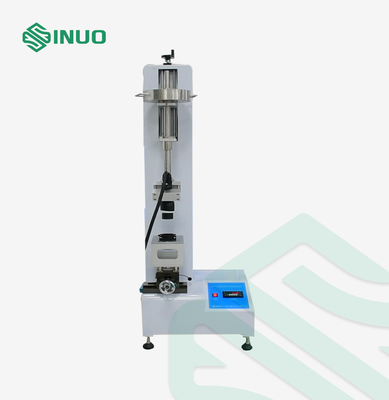

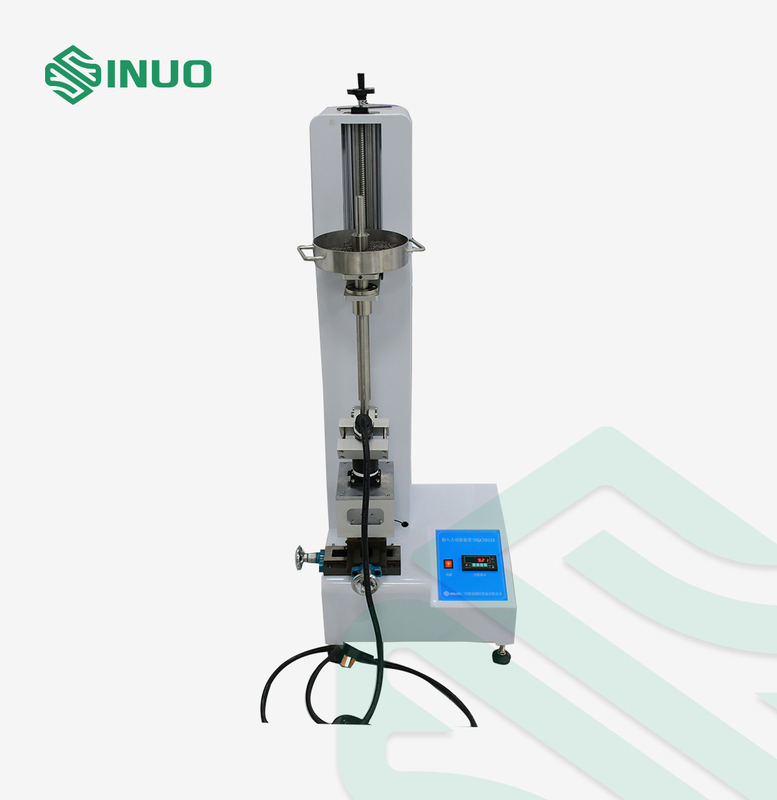

Equipment Overview

The force of inserting the charging gun into the socket: vertically downward the charging gun, place the main weight required by the standard on the charging gun, and then use a 0.8kg weight to fall freely from a height of 5cm to impact the main weight. The charging gun should be inserted into the socket to the position required by the contact.

This withdrawal force test apparatus is required by IEC 62196-1:2022 clause 16.16.

Test principle: The structure of the charging interface should make it easy to insert the charging gun. This equipment is used to check whether the maximum force required to insert the charging gun into the appliance socket is within the range specified by the standard.

Technical Parameters

Model	SNQC1013A
Test station	Single station
Insert initial positioning	Precision slide and long linear guide bearing positioning.

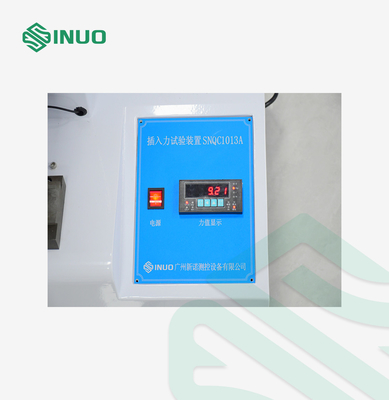

Force value monitoring	Pulse pressure sensor + instrument display
Control method	Manual, instrument display force data in real-time

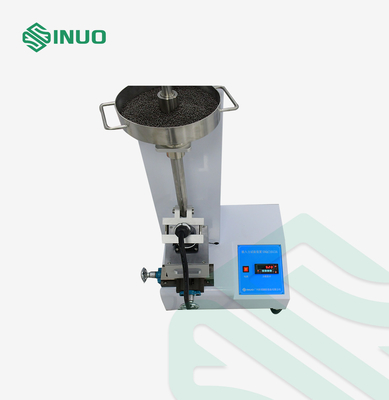

Weight configuration	The main weight of the AC charging gun: 9.2kg Main weight of DC charging gun: 13.2kg Additional weight: 0.8kg Note: The weight of the main weight includes the weight of the clamp, guide rod, steel ball basin, and charging gun sample. The weight of the main weight excluding the sample is about 4kg. In addition, 10kg steel balls are configured for fine-tuning the weight so that the weight of the entire main weight meets the insertion force requirements of AC or DC guns.
Additional weight drop height	5cm
Additional weight drop method	Manual
Lifting method	Manual
Charging gun fixture	Clamping handle, adjustable direction, so that the gun head is vertically downward.
