Environmental Testing Water Cooling Thermal Shock Test Chamber IEC 60068-2-14

Environmental Testing Water Cooling Thermal Shock Test Chamber IEC 60068-2-14

Brand Name:	Sinuo
Model Number:	SN887-144L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Box Dimensions:

600×600×400mm (W*D*H)

Outer Box Dimensions:

1850×2100×1770 (W*D*H)

Temperature Range:

-60～200℃

Temperature Deviation:

±2℃

Shock Recovery Time:

-60～+200℃ ≤5s

Test Hole Diameter:

50mm

Inner Box Material:

SUS304 Stainless Steel Plate

Outer Box Material:

Cold Rolled Plate Painted

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

Water Cooling Thermal Shock Test Chamber

Environmental Testing Thermal Shock Test Chamber

Product Description

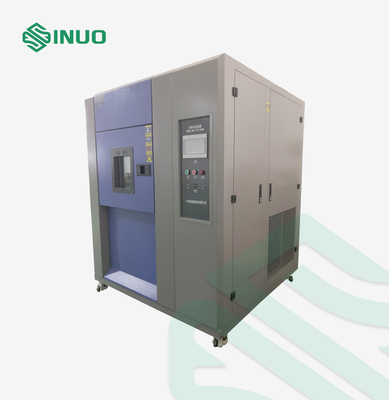

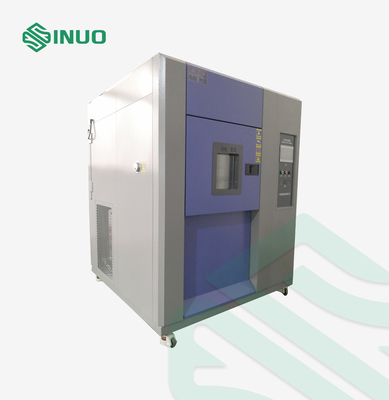

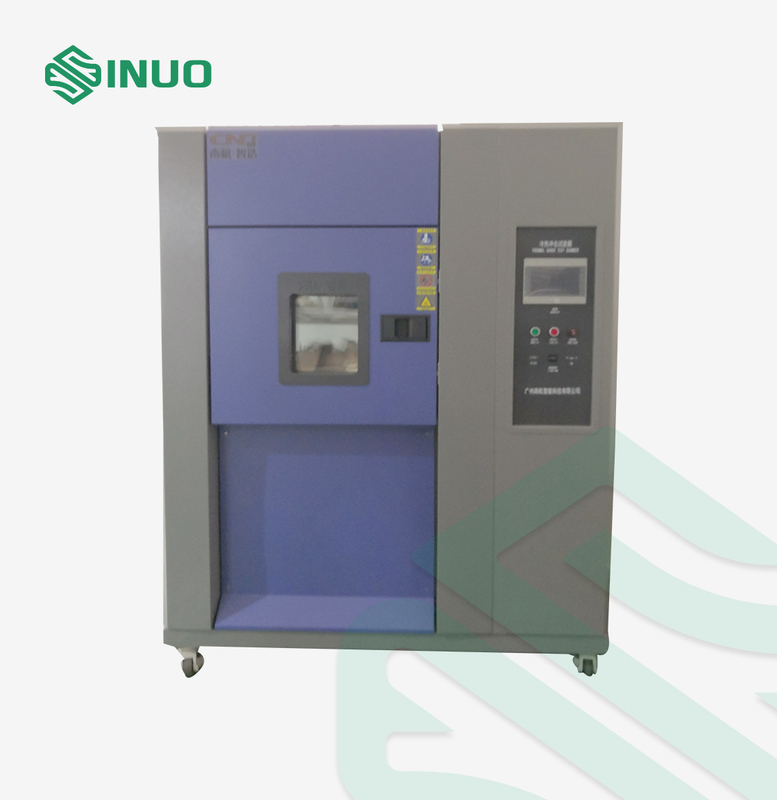

Environmental Testing Water Cooling Thermal Shock Test Chamber IEC 60068-2-14

Complied Standards & Clauses

IEC 68-2-1 Basic environmental testing procedures for electric and electronic products Tests A: Cold

IEC 68-2-2 Basic environmental testing procedures for electric and electronic products Tests B: Dry heat

IEC 60068-2-14:2009, Environmental testing Part 2-14: Tests-Test N: Change of temperature, IDT

Equipment Overview

The thermal shock test chamber is a test machine that tests whether the rapid changes in high and low temperatures have adverse effects on the product by keeping the DUT stationary. It is an essential test equipment for the metal, plastic, rubber, electrical and electronic, automotive parts and other material industries.

Technical Parameters

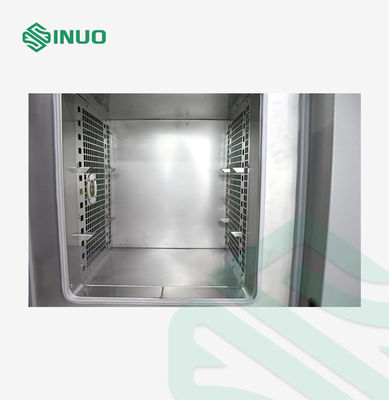

Inner box dimensions	600×600×400mm (WDH)
Outer dimensions	About 1850×2100×1770 (WDH) subject to actual size
Temperature range	-60～200℃
Temperature shock range	High temperature: (RT～+200)℃; Low temperature: (RT～-60)℃
Shock recovery time	-60～+200℃ ≤5s
High and low temperature shock constant temperature time	More than 30min
High temperature zone preheating temperature	RT～+200℃≤60min
Low temperature zone preheating temperature	RT ～ - 60℃≤60min
Sample zone temperature fluctuation	±0.5℃ (no load, constant state)
Temperature deviation	±2℃ (no load, constant state)
Temperature accuracy	±0.01℃

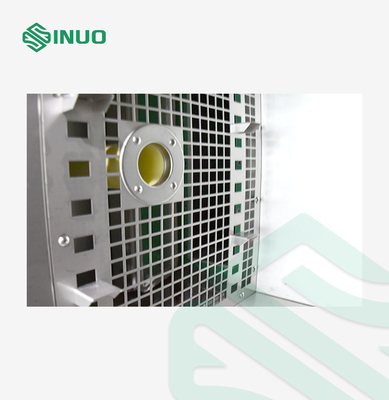

Test hole	Open a 50mm diameter test hole on the left side of the box with a silicone plug
Sample rack	Stainless steel SUS304# 2 trays, load-bearing 20kg/piece

Refrigeration system

Compressor

German Bock semi-hermetic compressor or German Bitzer semi-hermetic compressor

Refrigerant

Non-fluorine environmentally friendly refrigerant R404A R23, in compliance with environmental regulations, safe and non-toxic

Condenser

(Water chiller)

Shell and tube condenser (water-cooled) and well-known brand chiller

Parameter

Product model	DBW-UP-20	Power supply	AC220V
Working voltage	DC24V	Rated power	50W
Inlet water source	Tap water	Water output	20L/H
Inlet water source	TDS≤300ppm	Water inlet pressure	0.1-0.3Mpa
Heavy metal ions	＜0.1ppb	Suspended solids, silica	≤0.01mg/L
PH value range (25℃)	6.5-7.5	Microorganisms/bacteria	≤1CFU/mL
Particles (＞0.22μm)	＜1/ml	Total organic carbon TOC	＜10ppb
Product water conductivity	≤0.1us/cm	Water resistivity	＞10MΩ.cm
Dimensions (LWH)	420520580MM	Working environment	5-40℃, relative humidity ≤90%

Evaporator

High-performance fin-type automatic load capacity adjustment, can be used for a long time in low temperature and high humidity conditions without frost

Other accessories

High-precision expansion valves, oil separators, desiccant and other components are all imported from internationally renowned brands.

Refrigerant flow control

Automatic adjustment of energy consumption output control of the refrigeration system

Refrigeration process

Automatic adjustment of energy consumption output control of the refrigeration system

Fully implement nitrogen protection welding, double-stage rotary vane pump vacuum, to ensure the internal cleanliness and reliability of the refrigeration system.

A water tray is designed at the bottom of the compressor, and the condensed water is discharged to the outside of the box through the drain pipe at the rear of the box.

Defrosting

Defrost by heating wire.

Number of times: defrost once every 30 cycles

Program: automatic defrost by program

Detail

Environmental Testing Water Cooling Thermal Shock Test Chamber IEC 60068-2-14 0
