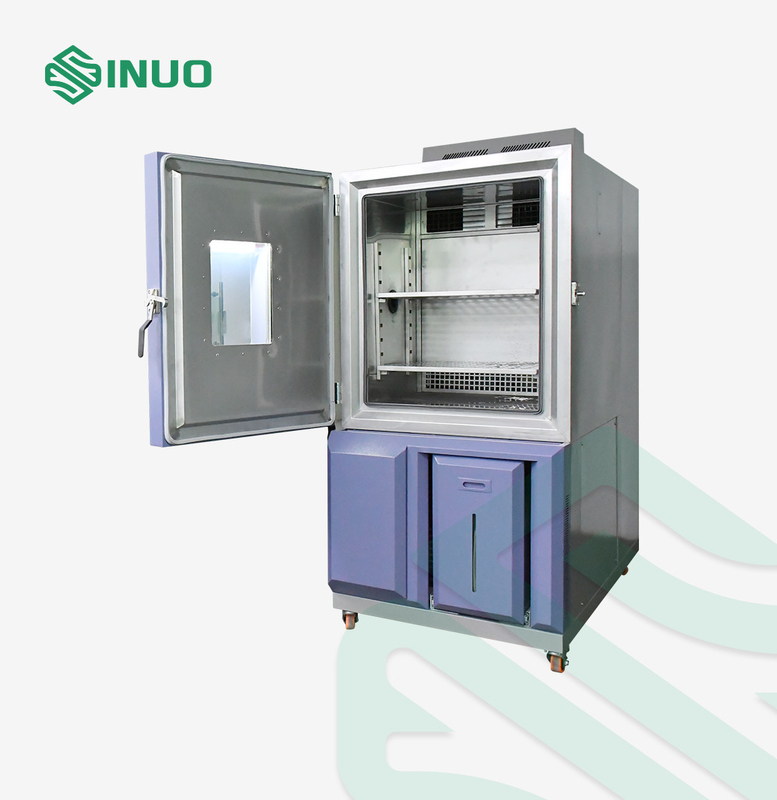

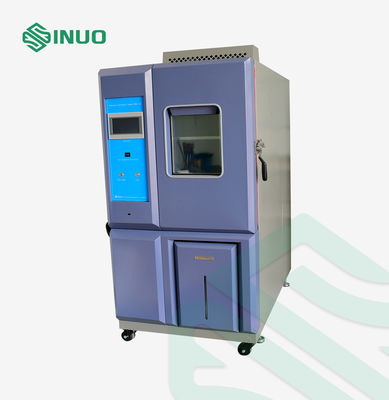

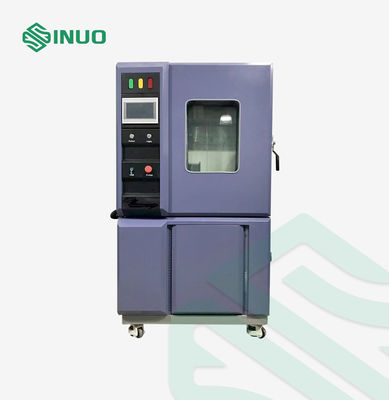

Environmental Testing Constant Temperature Test Chamber IEC60068-2-2 512L

Environmental Testing Constant Temperature Test Chamber IEC60068-2-2 512L

Brand Name:	Sinuo
Model Number:	SN889-512L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Dimensions:

800*800*800 Mm (W*H*D)

Outer Chamber Dimensions:

1080*1950*1800 Mm (W*H*D)

Temperature Range:

20 °C ~+70°C

Temperature Deviation:

≤±2.0℃

Temperature Fluctuation:

±0.5℃

Load Condition:

700W

Heating Rate:

≥2～3℃/min (with Load 700W)

Cooling Rate:

≥0.7~1℃/min (with Load 700W)

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

512L Constant Temperature Test Chamber

IEC60068-2-2 Constant Temperature Test Chamber

Environmental Testing Constant Temperature Test Chamber

Product Description

Environmental Testing Constant Temperature Test Chamber IEC60068-2-2 512L

Complied Standards & Clauses

It conforms to standards:
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

Equipment Overview

Specimen Limitations:

This test equipment prohibits:

1.Testing or storage of flammable, explosive and volatile substance samples

2.Testing or storage of corrosive substance samples

3.Testing or storage of biological samples

4.Testing or storage of samples from strong electromagnetic emission sources

Test environment conditions: The ambient temperature is +25℃ and the relative humidity is ≤85%.

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	800800800 mm (WHD)	108019501800 mm (WHD)
Temperature Range	20 °C ~+70°C
Temperature fluctuation	±0.5℃
Temperature deviation	≤±2.0℃
Heating Rate	≥2～3℃/min (with load 700W)
Cooling Rate	≥0.7~1℃/min (with load 700W)
Load condition	700W
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
Structural features
Insulation enclosure structure	1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam.
Bottom structure strength	The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load)

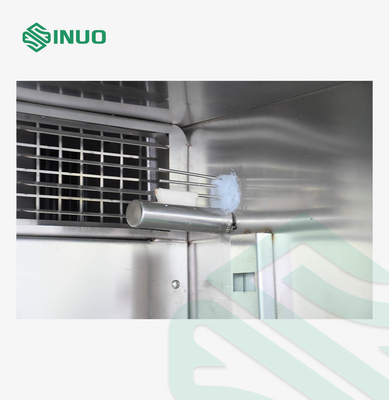

Air conditioning channel	1. Stainless steel long-axis centrifugal fans: 2 sets/90W. 2. Fan, heater, evaporator, drainage device, pressure balance port, adjustable air deflector, temperature sensor

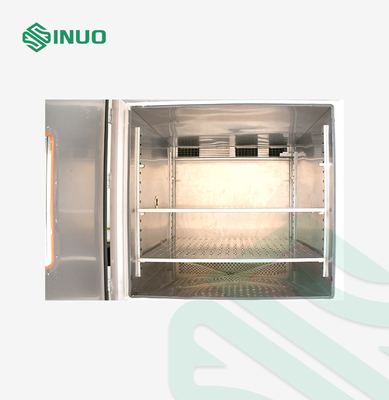

Standard configuration of test chamber	1. Observation window: 400x600x40mm 3-layer vacuum tempered glass 2. Flat embedded handles 3. Door hinges: SUS #304 imported hinges 4. Energy-saving lamp inside the chamber 5. Lead hole: φ50mm 1 piece
Chamber door	1. The single-piece door opens outwards, with the hinge on the left and the handle on the right (when facing the front of the box). 2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device.
Control panel	Controller 7-inch display screen, temperature control display screen, operating indicator light, and lighting button.
Mechanical room	Refrigeration unit, compressor water tray, pressure relief device, heating device
Power distribution cabinet	Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker
Heater	1. High-quality heating wire set. 2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation 3. Heating power: approximately 3KW
Power cable hole	Located on the back of the chamber
