Tensile Strength Test Machine 10KN For Materials Test Bending Folding Test

Tensile Strength Test Machine 10KN For Materials Test Bending Folding Test

Brand Name:	Sinuo
Model Number:	SNB02C-10kN
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Force Range:

0–10kN

Force Measurement Accurac:

0.001Kg

Deformation Measurement Range:

0.2%—100%FS

Speed Test Range:

0.05—500mm/min

Machine Weight:

150KG

Test Stroke:

800mm

Test Effective Width:

400mm

Working Power Supply:

220V/50HZ

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

10KN Tensile Strength Test Machine

Bending Folding Tensile Strength Test Machine

Materials Test Tensile Strength Test Machine

Product Description

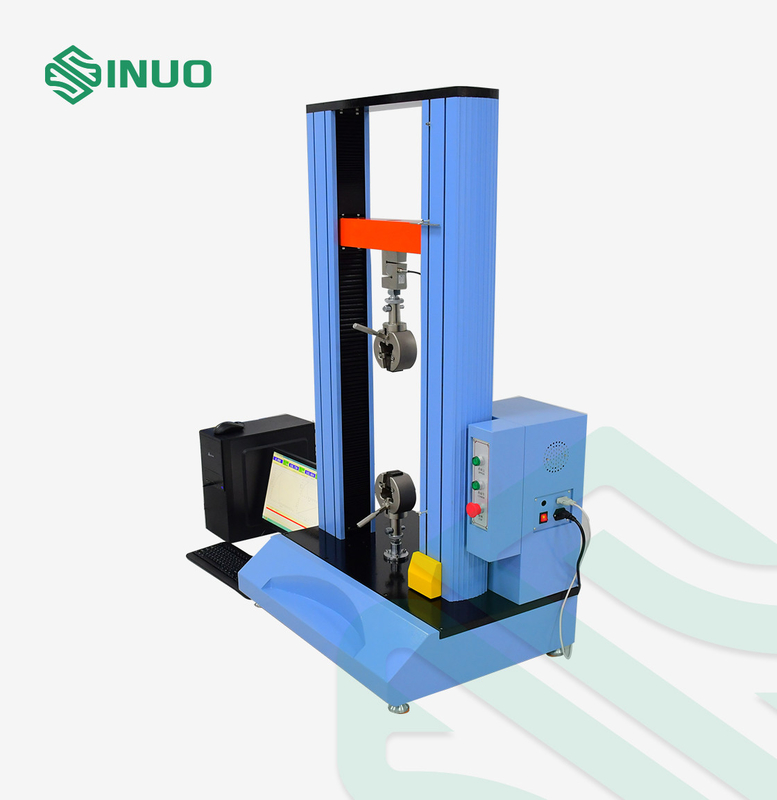

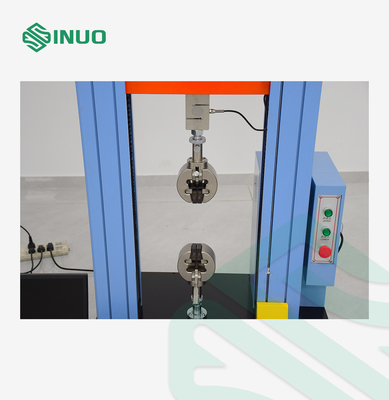

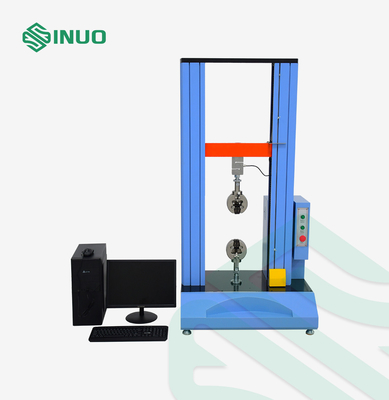

Tensile Strength Test Machine 10KN for Materials Test Bending Folding Test

Equipment Overview

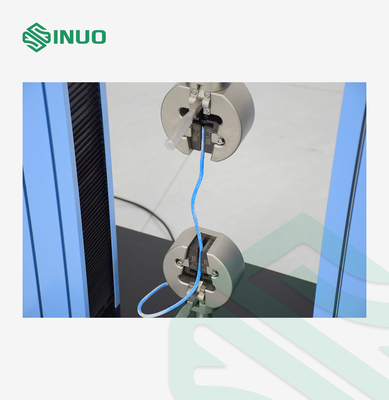

This machine adopts computer control, widely used in the mechanical properties of various materials tests, with a special fixture that is also suitable for all kinds of finished products tensile, compression, stripping, shear, tear, and bending (folding) tests. It can print a number of data, according to different data to make graphic output comparisons, high control precision, easy to operate; Modular design, a variety of accessories variety, and flexible collocation.

Working conditions of the testing machine:
1. In the range of room temperature 10℃-35℃, the relative humidity is not more than 80%;
2. Install correctly on a solid foundation or workbench;
3. In a vibration-free environment, leave no less than 1m space around;
4. No corrosive media around;
5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.

Technical Parameters

Test Force Range	0–10kN
Displacement switch	mm, cm, in
Displacement measurement displays accuracy	0.01mm
Deformation measuring device	0.2%—100%FS
Test effective width	400mm
Test stroke	800mm
Working power supply	220V/50HZ
Power	1.0KW
Speed test range	0.05—500mm/min stepless speed regulation
Machine weight	about 150KG
Load analysis	1/250000
Load accuracy	±0.5%
Safety device	overload emergency stop device, up and down travel limit device, automatic breakpoint stop function
Fixture	1 sets of test fixtures customized according to customer products
Transmission system	servo motor, Taiwan ZPT ball screw, computer software TM2101

Configuration list:

1. Testing machine host	A Set
2. Servo motor	A Set
3. High-quality and high-precision load sensor	One PC
4. Deceleration system	A Set
5. Taiwan ZPT ball screw	A Set
6. Tensile fixtures	A Set
7. Large deformation measurement system	A Set
8. TM2101 measurement software	A Set
9. Computer	A Set

Details

Tensile Strength Test Machine 10KN For Materials Test Bending Folding Test 0
