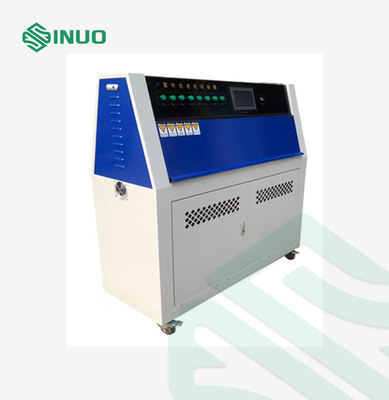

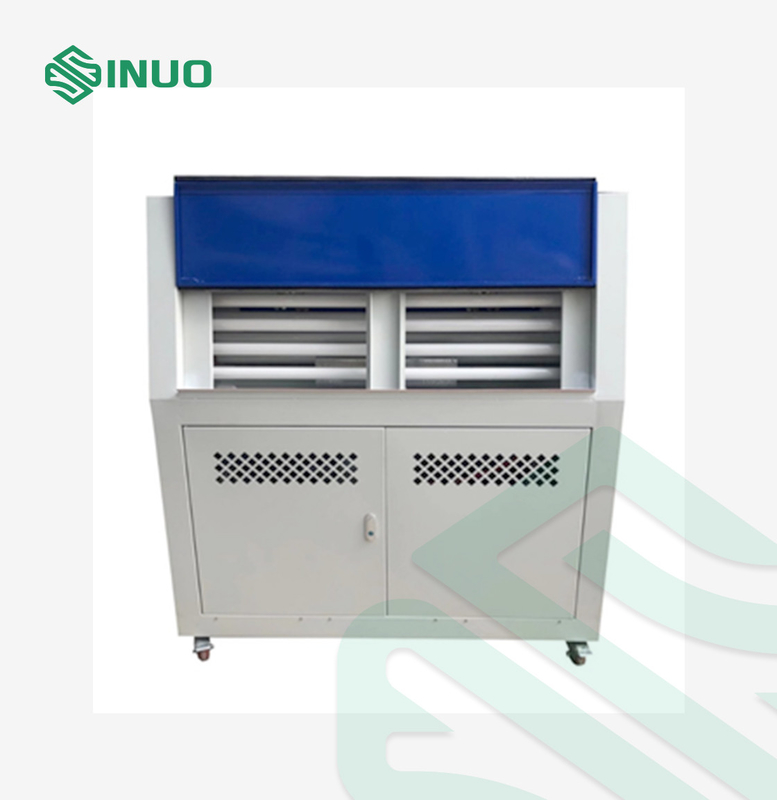

UVC Aging Test Chamber Environmental Testing Chamber Ultraviolet Exposure Testing

Brand Name:	Sinuo
Model Number:	SN882C
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Service Life:

2000 Hours

Irradiance Range:

UVC254nm: 5W/㎡~10W/㎡

Equipment Dimensions:

147*56*135cm(W*D*H)

Equipment Weight:

170KG

Blackboard Temperature Range:

40℃~80℃

Total Exposure Area:

5175c㎡

Water Pressure:

0.15Mpa~0.3Mpa

Light Source:

UVC 254

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

UVC Aging Test Chamber

Ultraviolet Exposure Testing Chamber

Environmental Testing Machine

Product Description

UVC Aging Test Chamber Environmental Testing Chamber Ultraviolet Exposure Testing

Complied Standards & Clauses

The main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1.the main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1, etc.

Equipment Overview

Using low-pressure mercury lamp UV-C (254nm) as the radiation source, by changing and controlling the light irradiance, blackboard temperature, condensation, rain, etc., the comprehensive conditions of outdoor ultraviolet light, humid heat condensation and rainfall are simulated, and the aging test is performed on the samples. The equipment mainly emits ultraviolet light at 254nm and is mainly used for the aging assessment of internal materials of household appliance disinfection equipment and the aging assessment of aerospace materials outside the atmosphere.

Technical Parameters

Light source	UVC 254
Service life	2000 hours
Irradiance range	UVC254nm: 5W/㎡~10W/㎡
Blackboard temperature range	40℃~80℃
Condensation	Yes
Rain	Yes
Sample racks	24 (300 mm*75 mm) can hold 48 standard samples.
Sample rain	Yes
Total exposure area	5175c㎡
Dimensions	14756135cm(WDH)
Weight	170KG
Power supply	AC220V, 10A, well grounded
Water source	National laboratory level 3 water, water pressure: 0.15Mpa~0.3Mpa
Configuration	1 UV aging test chamber, 8 UVC lamps (Not equipped with: pure water machine)
