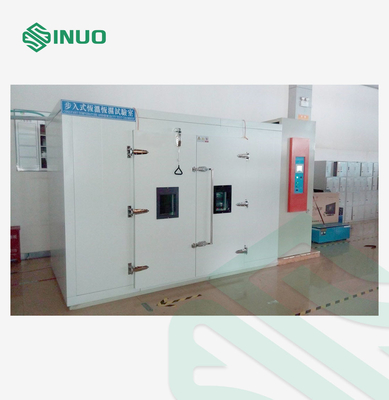

12m³ Walk-in Constant Temperature and Humidity Test Chamber IEC 60068-2-2

12m³ Walk-in Constant Temperature and Humidity Test Chamber IEC 60068-2-2

Brand Name:	Sinuo
Model Number:	SN886-12m³
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Effective Volume:

12m³

Temperature Range:

-40°～ 150℃

Humidity Fluctuation:

±2.0%R.H

Humidity Range:

20%RH～95%RH

Heating Rate:

≦3.0℃/min (non-linear, No Load)

Cooling Rate:

Average 1.0℃/min (non-linear, No Load)

External Dimensions Approx.:

3700 Mm*2200 Mm*2300 Mm(W*H*D)

Inner Box Dimensions:

3000 Mm*2000 Mm*2000mm(W*H*D)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Constant Temperature and Humidity Test Chamber

IEC 60068-2-2 Environmental Test Chamber

Product Description

12m³ Walk-in Constant Temperature and Humidity Test Chamber IEC 60068-2-2

Complied Standards & Clauses

Complied Standard: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, and IEC 60068-2-30,etc.

Product Overview

Application: This equipment is suitable for environmental simulation reliability tests such as high and low temperature constant and gradual changes, cycle tests, etc. for various electrical and electronic products and other products, components and materials.

Safety test limitations:

A) Testing and storage of flammable, explosive and volatile substance samples.

B) Testing of corrosive substance samples and testing or storage of biological samples.

C) Testing and storage of samples of strong electromagnetic emission sources.

Technical Parameters

Volume and dimensions
Effective volume	12m³
Inner chamber size	3000 mm2000 mm2000mm(WHD)
Outer chamber size	Approximately 3700 mm2200 mm2300 mm(WHD) Warm reminder: Please refer to the three views of the final design for external dimensions.
Container size	The inner dimensions of the 40HQ container are 12.032m (L)2.352m (W)2.69m(H) The door is 2.55M high (it will be extra wide after being packed with wooden boxes)
Performance
Cooling method	Water cooling
Temperature range	-40°～ 150℃
Humidity range	20%RH～95%RH
Temperature/humidity fluctuation	±2℃/±2.0%RH
Temperature analysis accuracy	0.01℃
Humidity analysis accuracy	0.01RH
Temperature uniformity	≤2℃
Humidity uniformity	< 75%RH:±3%RH >75%RH±5%RH
Heating rate	≦3.0℃/min (non-linear, no load)
Cooling rate	Average 1.0℃/min (non-linear, no load)
Load condition	No load
Complied Standards	IEC 60068-2-1 Test A: Low-temperature test method. IEC 60068-2-2 Test B: High-temperature test method. IEC 60068-2-3 Test Ca: Constant damp heat test method. IEC 60068-2-30 test Db: alternating damp heat test method.
Temperature and humidity diagram	PS: Standard humidity 20%~95%HR
