UL2251 Water Spray Test Equipment EV Connector Testing Equipment

UL2251 Water Spray Test Equipment EV Connector Testing Equipment

Brand Name:	Sinuo
Model Number:	SN4420
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Control Mode:

Manual

Applied Standard:

UL2251, UL1598 And Etc.

Water Pressure:

34.5Kpa/spray Head

Spray Heads:

3 Or 4 Pieces

Pipe Rack:

Made Of High-grade Aluminum Profile

Spray Distance:

Approximately 1.4m (55 Inches)

Water Flow Pressure:

50-150Kpa

Lower Nozzle Angle:

45° Up

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

EV Connector Water Spray Test Equipment

UL2251 Water Spray Test Equipment

UL2251 EV Connector Testing Equipment

Product Description

UL2251 Water Spray Test Equipment EV Connector Testing Equipment

Complied Standards & Clauses

UL 1993 “Self-Ballasted Lamps and Lamp Adapters” clause 24, figure 24.1 and 24.2

UL 60507-ENGL 1999 figure 38.1 and 38.2

UL2251-2022 Clause 57 and Figures 57.1 and 57.2

ANSI Z21.10.3-2004

ANSI Z21.58 Figure 10/Figure 11

CSA4.3-2004

UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571, etc.

Equipment Overview

Place: The location should be fitted with proper lighting and a waterproof leakage protection switch (or outlet), an American standard charging connector, a level ground surface, and a well-functioning water supply and drainage system.

Water Source: Clean or tap water free of impurities, with a water filtration system installed.

Samples and Restrictions: Self-ballasted light bulbs and lamp adapters, U.S. standard charging connector.

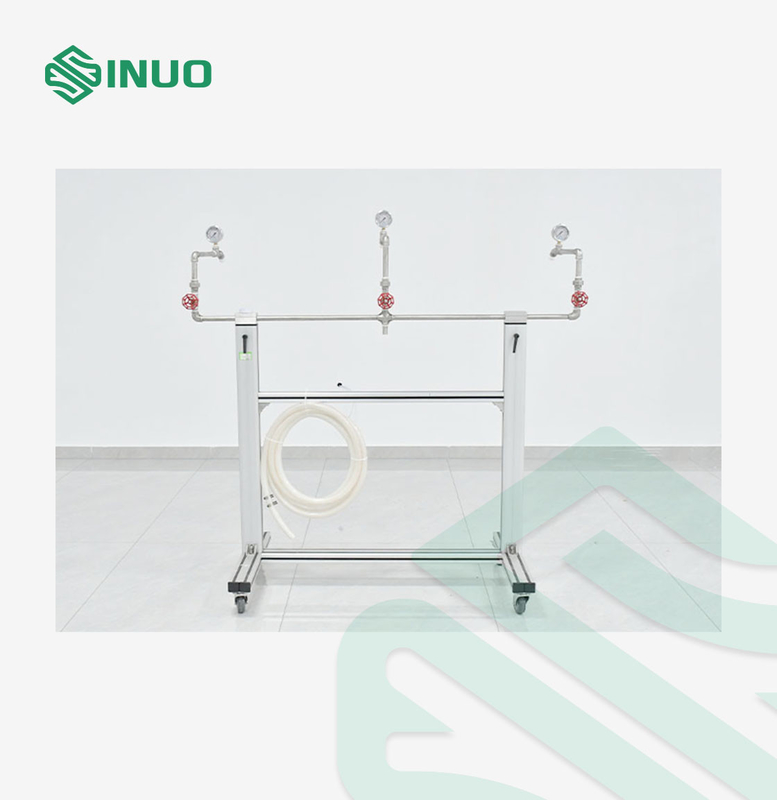

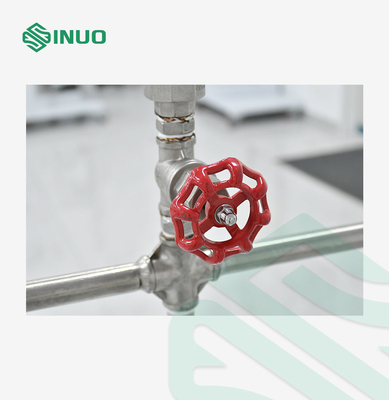

Structure: The apparatus comprises three UL spray nozzles, three pressure meters, three control valves, and a water supply pipe frame.

Application: Designed to assess the enclosure’s protective capabilities for self-ballasted lamps, lamp adapters, and U.S. standard charging connectors under UL-specified water spray conditions.

Principle: Conducting a spray test on the specimen by regulating water supply pressure and adjusting the distance between the nozzle and the test sample.

Technical Parameters

Control & Operation	Manual
Spray Heads	Three units (or optionally four, including a lower nozzle), produced in compliance with UL 60507-ENGL 1999 Figures 38.1 and 38.2, UL 1993 Figure 24.1, UL 2251-2022 Clause 57, and Figures 57.1 and 57.2, among others.
Spray Heads Positions	The spray head positions can be adjusted vertically along the water spray pipe rack, with spacing configured in accordance with UL 60507-ENGL 1999 Figures 38.1 and 38.2, UL 1993 Figure 24.1, and other relevant standards.
Lower Nozzle Angle (Optional)	45° up

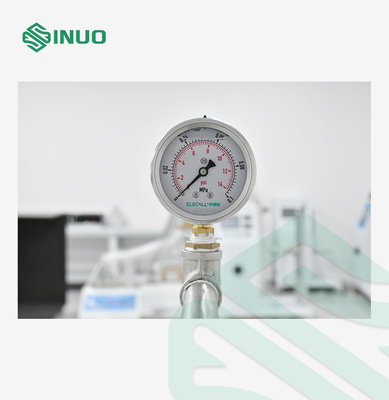

Water Pressure	Each spray head operates at approximately 34.5 kPa (5 psi) and is equipped with a corresponding pressure gauge, with the total water flow pressure ranging from 50 to 150 kPa.
Distance between the center Nozzle and the Device	Approximately 1.4m (55 inches)

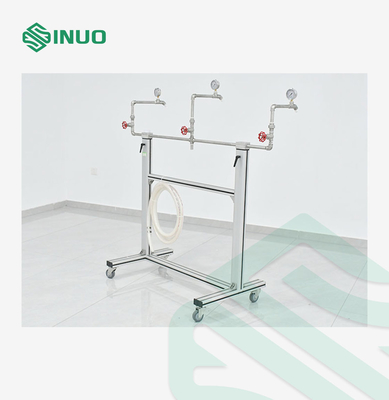

Spray Head Pipe Rack	Material: high-grade aluminum profile with casters

Details:

UL2251 Water Spray Test Equipment EV Connector Testing Equipment 0
