ASTM. B117 Corrosion Resistance Salt Fog Spray Corrosion Testing Equipment 108L

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Deviation:

± 1 ℃

Temperature Resolution:

0.1 ℃

Temperature Fluctuation:

1 ℃

Temperature Uniformity:

2 ℃

Maximum Current:

10A

Maximum Power:

2.2KW

PH Value Of Liquid Medicine:

Neutral 6.0~7.0, Acidic 3.0~3.1

PH Value Of Spray Solution:

Neutral 6.5~7.2, Acidic 3.1~3.3

Packaging Details:

Export packing

Supply Ability:

10 sets/month

Highlight:

Product Description

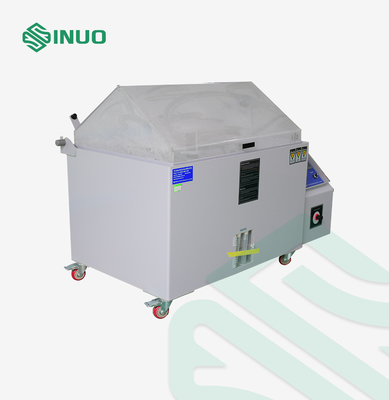

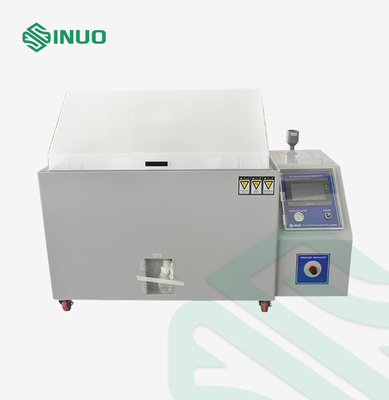

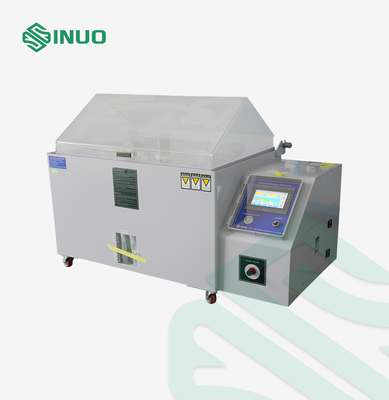

ASTM. B117 Corrosion Resistance Salt Fog Spray Corrosion Testing Equipment 108L

Complied Standards & Clauses

ASTM. B117-2009 Salt Spray Test

JIS H8502 Salt Water Spray Test Method

ISO9227 Salt Spray Test

Product information:

The test chamber is constructed using imported 5mm thick PVC polyethylene panels (South Asia, Taiwan) and can withstand temperatures up to 85°C.
The chamber’s sealing cover is made from imported 5mm thick acrylic panels.
The reagent refill container features a concealed water level detection system, making it easy to clean and resistant to cracking.
The pressure air tank is built from SUS304# stainless steel, ensuring high-pressure resistance and excellent thermal insulation.

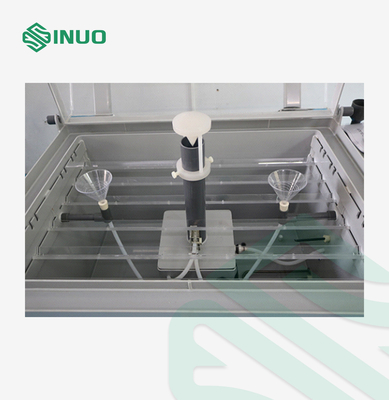

The specimen rack utilizes a flat partitioned design, allowing for flexible adjustment of the fog exposure angle and uniform coverage on all sides, accommodating multiple samples.
The sealing lid operates pneumatically.
A water-sealed design ensures the chamber remains airtight, preventing corrosive gas leakage.

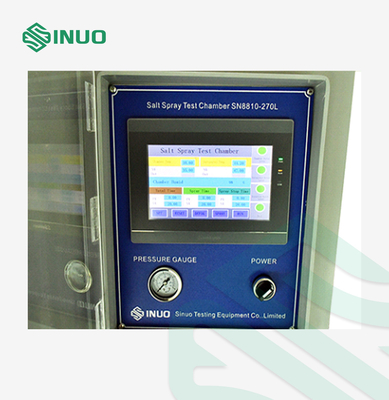

The control panel and test chamber are integrated into a left-right structure for convenient operation.
A water-electricity separation design effectively prevents water ingress into the electrical control unit, protecting internal components.

Technical Parameters

Temperature deviation	± 1 ℃
Temperature uniformity	2 ℃
Temperature fluctuation	1 ℃
Temperature resolution	0.1 ℃
PH value of spray solution	neutral 6.5~7.2, acidic 3.1~3.3
PH value of liquid medicine	neutral 6.0~7.0, acidic 3.0~3.1
Spray volume	Spray volume (m1/80cm2/h) 1.0~2.0 (collect for at least 16 hours, and take the average value)
Control time	1S~9999H can be set arbitrarily
Spray pressure	1.00 ± 0.01kgf/cm2
Test compliance and product implementation standards	1. IEC 60068-2-11-1981 Salt Spray Test Method 2. ASTM. B117-2009 Salt Spray Test 3. JIS H8502 Salt Water Spray Test Method 4. ISO 9227-2006 Salt Water Spray Test Method 5. ISO9227 Salt Spray Test
Power supply	AC 220V ± 10% V; 50 ± 0.5HZ
Environment temperature	5~30 ℃
Relative humidity	≤ 85% R.H
Laboratory temperature	RT~ 50 ℃
Pressure barrel temperature	RT ~ 63 ℃
Relative humidity	≥ 85% R.H
