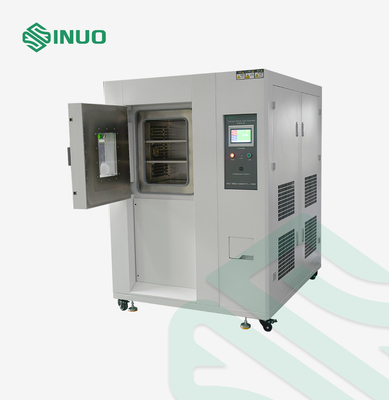

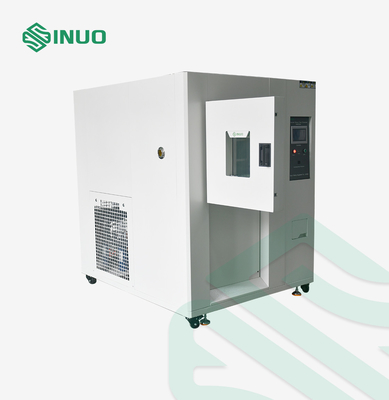

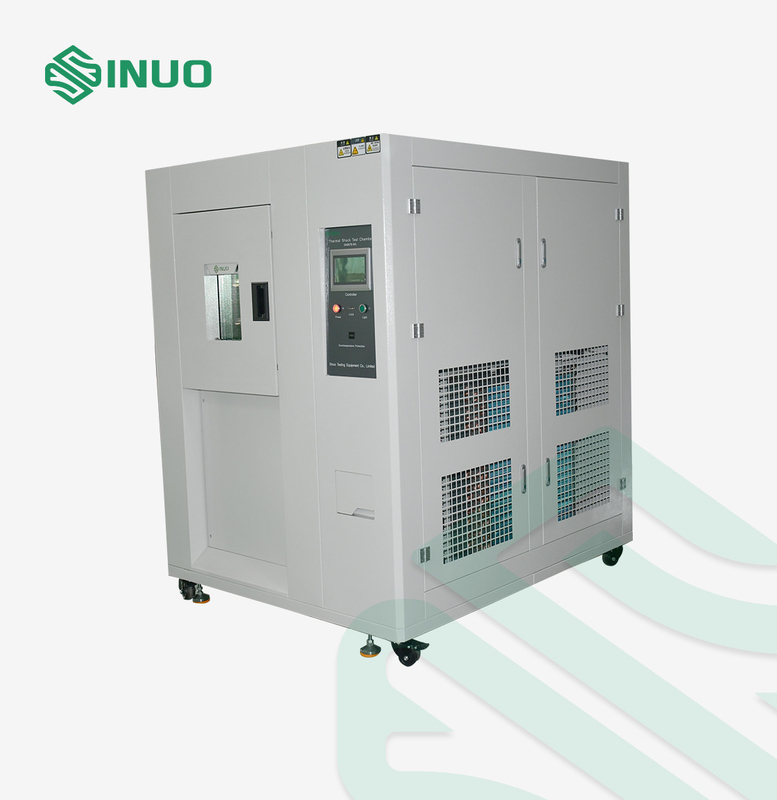

Rapid Temperature Change Thermal Shock Testing Equipment Three-zone Chamber

Rapid Temperature Change Thermal Shock Testing Equipment Three-zone Chamber

Brand Name:	Sinuo
Model Number:	SN887B-80L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Material:

SUS304 Stainless Steel Plate

External Chamber Material:

1450×2040×2000mm(W*H*D)

Temperature Shock Range:

40～+150℃

Cold Storage Temperature Range:

-10℃～-50℃

Heat Storage Temperature Range:

+50℃～+180℃

Setting Accuracy:

±0.1℃

Indication Accuracy:

±0.1℃

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Rapid Temperature Change Thermal Shock Tester

Three-zone Chamber Thermal Shock Tester

Temperature Change Thermal Shock Testing Equipment

Product Description

Rapid Temperature Change Thermal Shock Testing Three-zone Chamber

Complied Standards & Clauses

The 3-Zones Thermal Shock Test Chamber is required by IEC60335 Annex J, meets the standard requirements of IEC 60068-2-1:2007, Environmental Testing—Part 2-1: Tests—Test A: Cold, IDT; IEC 60068-2-2: 1974 Environmental testing for electric and electronic products—Part 2: Test methods—Tests B: Dry heat; IEC 60068-2-14:1984, Basic environmental testing procedures—Part 2: test-test N: Change of temperature, IDT; MIL-STD-883 and etc.

Product Overview

It is available for the metal, plastic, rubber, electrical and electronic products, and etc. It is used to test the influence for the test sample under the rapid changes of high and low temperature.

Technical Parameters

Temperature shock range	-40～+150℃
Cold storage temperature range in low temperature zone	-10℃～-50℃
Heat storage temperature range in high temperature zone	+50℃～+180℃
Impact reset time	About 5 mins
The constant temperature time of high-low temperature shock	Above 30 mins
Conversion time	≤10s
Temperature fluctuations in the sample area	±0.5℃ (at constant temperature)
Temperature accuracy range	Setting accuracy: ±0.1℃, indication accuracy: ±0.1℃, resolution: ±0.1℃
Temperature variation	±2°C (no load, at constant state)
Temperature sensor	High-precision A grade PT100 temperature
The refrigerant	R404a, R23

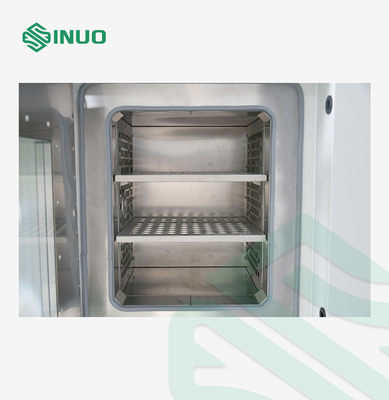

Chamber structure	With independent product test area, high temperature storage area, low temperature storage area
Inner chamber material	SUS304 stainless steel plate
Inner chamber material (WHD)	400×500x400
External chamber material (WHD)	1450×2040×2000
