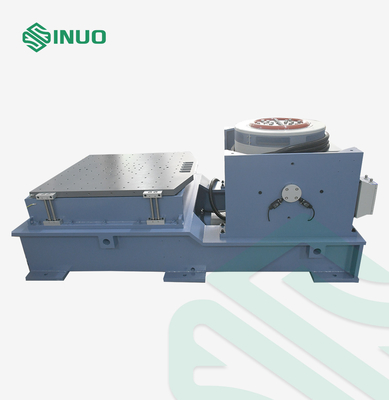

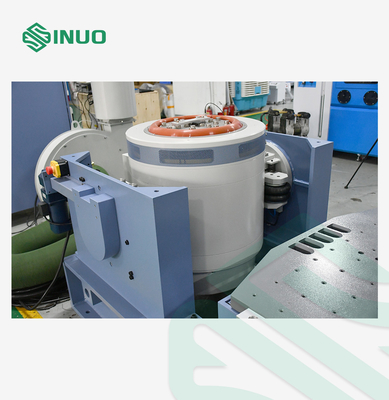

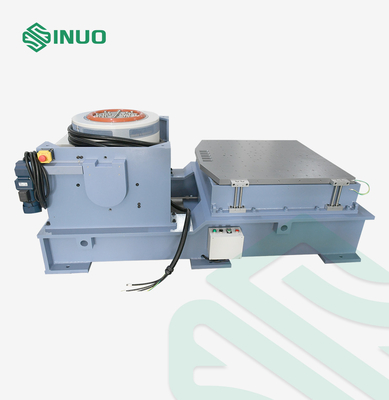

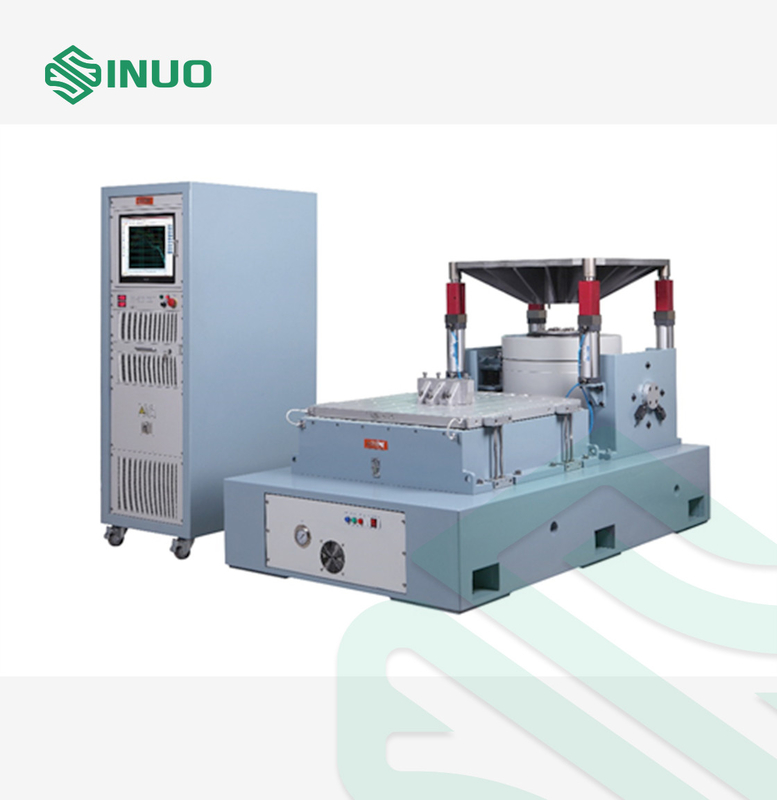

ECE R100 Auto Parts Electromagnetic Vibration Testing Machine Vibration Shaker

ECE R100 Auto Parts Electromagnetic Vibration Testing Machine Vibration Shaker

Brand Name:	Sinuo
Model Number:	SN553- EV211HG60VT60VCS-2
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Sinusoidal Excitation Force:

1100Kg.f Peak

Maximum Random Exciting Force:

1100Kg.f Rms

Maximum Impact Excitation Force:

2200Kg.f

First-order Resonant Frequency:

3200 Hz±5%

Frequency Range:

1～3300 Hz

Maximum Displacement:

51 Mm P-p

Maximum Speed:

2.0m/s

Maximum Acceleration:

100G(980 M/s2)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Auto Parts Vibration Shaker

ECE R100 Vibration Shaker

Electromagnetic Vibration Shaker

Product Description

ECE R100 Auto Parts Electromagnetic Vibration Testing Machine Vibration Shaker

Complied Standards & Clauses

Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.

Product Overview

Vibration testing simulates the dynamic forces a component or device might experience in real-world conditions. It plays a crucial role across a wide range of industries — from electronic circuit boards to aerospace systems like aircraft, rockets, and missiles, as well as ships, automobiles, and everyday household appliances.

Technical Parameters

A11S24 electromagnetic excitation generator parameters
Maximum sinusoidal excitation force	1100Kg.f peak
Maximum Random Exciting Force	1100Kg.f rms
Maximum impact excitation force	2200Kg.f
Frequency Range	1～3300 Hz
Maximum displacement	51 mm p-p
Maximum speed	2.0m/s
Maximum acceleration	100G(980 m/s2)
First-order resonant frequency	3200 Hz±5%
Payload	300 kg
Vibration isolation frequency	2.5 Hz

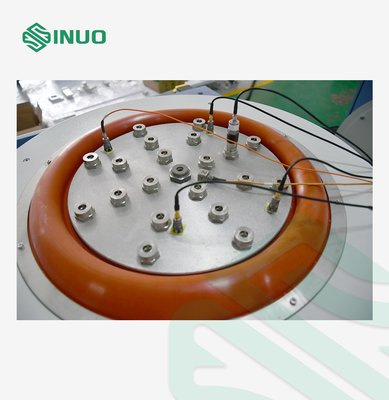

Moving coil diameter	Ф240 mm
Moving coil weight	10kg
Screw on the table	16×M10
Flux leakage	＜10gauss
Allowable eccentric moment	300N.m
Equipment size	920mmx740mmx785mm (excluding extended table)
Equipment weight	1100Kg (Excluding horizontal slide table)
LA12K digital switching power amplifier
Output power	12KVA
Output voltage	100V
Output current	100A
Amplifier efficiency	≥90%
Switching frequency	116KHz
SNR	≥65dB
Noise	≤70dB
Amplifier size	910mmx610mmx1150mm
