| Brand Name: | Sinuo |
| Model Number: | SN551-408L1000A |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 1 sets/month |

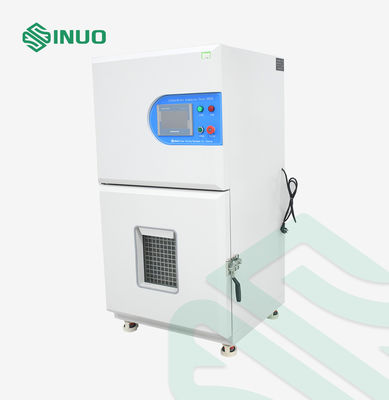

IEC 62619 Short Circuit Testing EV Battery Testing Equipment 1000A
Complied Standards & Clauses
This Temperature-Controlled External Short Circuit Tester is specially designed for lithium battery safety performance testing. It strictly complies with major international standards including UL 1642, IEC 62133, UN38.3, IEC 62619, and IEC 60086-4.
Equipment overview
Equipped with precise temperature control, fast response time (≤5μs), and robust explosion-proof safety features, it provides a reliable solution for evaluating battery external short-circuit behaviors under high-current conditions 1000A.
Fast Current Response: ≤5μs, ensuring accurate short-circuit simulation.
Temperature Controlled Chamber: Adjustable from RT+10℃ to 100℃ with ±2℃ uniformity.
High Current Capacity: Models available in 500A and 1000A output options.
Explosion-Proof Design: Pressure relief door, explosion-proof chains, tempered glass window, and LED lighting.
Data Acquisition System: Real-time monitoring of current, voltage, and temperature with USB export (CSV, JPG).
Remote Control Capability: Conduct short circuit tests remotely via a touchscreen interface.
High-Safety Sample Rack: Stainless steel perforated shelf supports up to 30kg.
Applications
Lithium-ion battery R&D and quality testing
Third-party battery certification labs
Consumer electronics & EV battery safety validation
UN38.3, UL, IEC compliance testing environments
Technical Parameters
| Model | SN551-408L1000A | |
| Max. load current | 1000A | |
| DC response time | ≤5μs | |
| Built-in resistor | 9±1mΩ | |
| Dimensions | 1000×950×1700mm | |
| Inner chamber size | 800×850×600mm | |
| Weight | Approx. 300kg | |
| Temperature Control Range | RT+10℃ ~ 100℃ | |
| Voltage Input | AC 220V, 50/60Hz | |
| Control method | PLC and Touch screen | |
| Inner chamber material | Stainless steel | |
Double-layer tempered glass observation window
3 explosion-proof chains
Pressure-relief exhaust door (200x200mm)
Explosion-proof LED lighting
Stainless steel inner chamber
Integrated smoke exhaust system
7” Color Touchscreen Display
Industrial-grade PLC with fast response and positioning
Real-time data logging and export via USB (CSV/JPG)
1s acquisition rate for voltage, current, and temperature
Floor bearing ≥ 300kg/m²
Dedicated ventilation & smoke exhaust pipe (Ø60mm)
Power: AC220V, single phase, 2~3KW
Spacious front access (≥1000mm), side/rear clearance ≥600mm
