EV Battery Testing Equipment Temperature And Humidity Test Chamber 5℃ Nonlinearity

Name: EV Battery Testing Equipment Temperature And Humidity Test Chamber 5℃ Nonlinearity
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN559-1000L
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN559-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Dimensions:

1000*1000*1000 Mm

Outer Chamber Dimensions:

1280*2150*2050 Mm

Temperature Range:

-70 °C ~+150°C

Humidity Range:

20%～98%RH

Temperature Deviation:

≤±2.0℃

Temperature Fluctuation:

±0.5℃

Humidity Fluctuation:

≤2.5%

Humidity Deviation:

≤±3%

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

EV Battery Testing Equipment

Nonlinearity EV Battery Testing Equipment

Product Description

EV Battery Testing Equipment Temperature And Humidity Test Chamber 5℃ Nonlinearity

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

Equipment Overview

Engineered for Extreme Conditions. Trusted for Reliable Results.

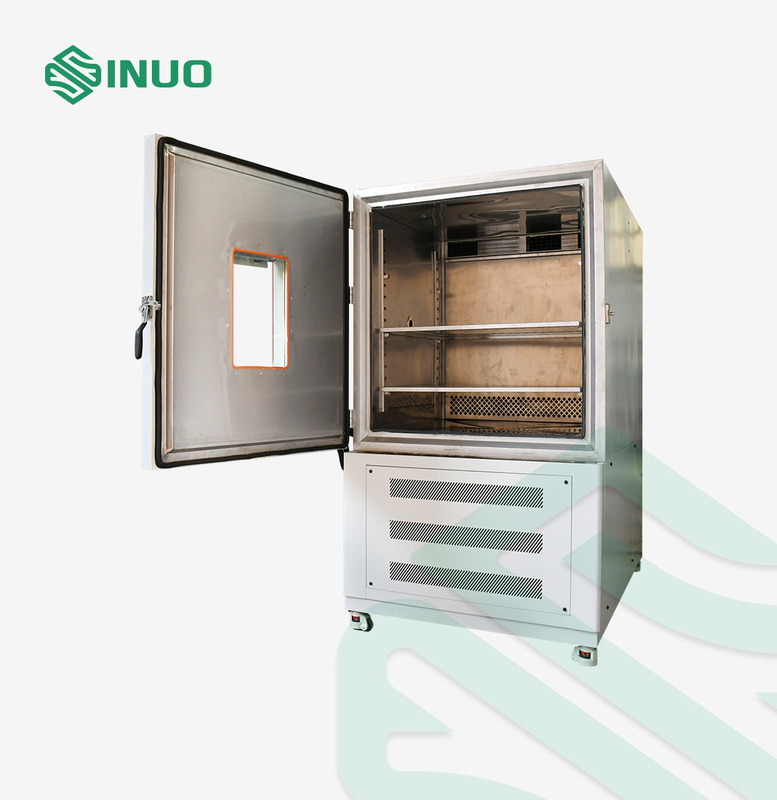

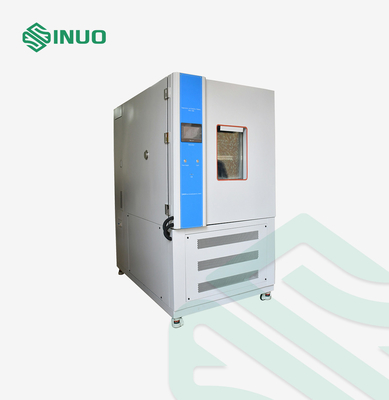

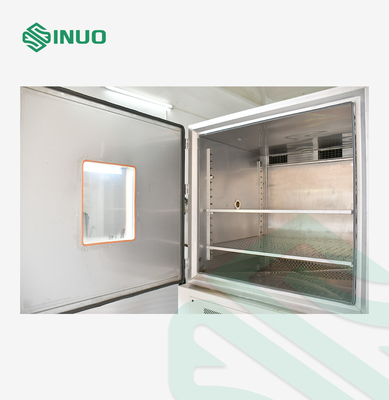

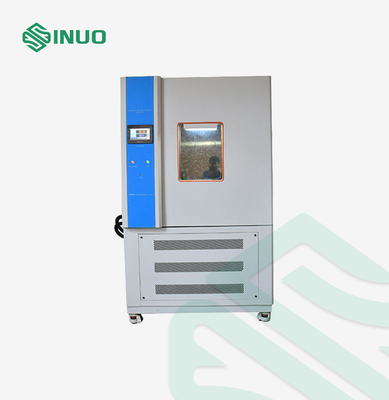

The SN559-1000L environmental chamber is designed for high and low temperature, humidity, and thermal cycling tests, ensuring your products can withstand real-world environmental stress. Whether for electronics, electrical appliances, or plastic components, this chamber helps validate your product's reliability in storage, transport, and end-use conditions.

Technical Parameters

Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	100010001000 mm	128021502050 mm
Temperature Range	-70 °C ~+150°C
Humidity Range	20%～98%RH
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	-70℃→+150℃ ≥5℃/min Average throughout the process
Cooling Rate	+150℃→-70℃ ≥5℃/min Average throughout the process
Load condition	None
Noise Level	≤70dB

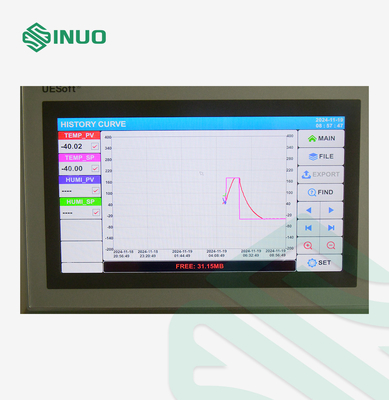

Control System	7-inch color touchscreen controller (Yikong) with graphical programming
