Impulse Testing Equipment For Electric Vehicle Charging Testing IEC 61851-1

Impulse Testing Equipment For Electric Vehicle Charging Testing IEC 61851-1

Brand Name:	Sinuo
Model Number:	SN1104
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

High Voltage:

300V~2500V

Low Voltage:

2500 V~ 12500V

Internal Resistance:

12Ω，42Ω，500Ω

Voltage Range:

DC 300 V~ 12500V

Number Of Cycles:

1 ~ 9999 Can Be Set

Impact Interval Time:

5 ~ 99s Can Be Set

Display Method:

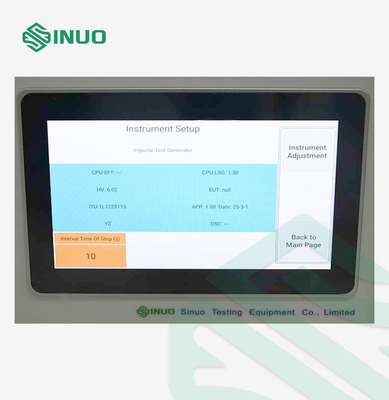

7" LCD

Polarity Mode:

Positive And Negative

Packaging Details:

Carton Box

Supply Ability:

30 sets/month

Highlight:

Electric Vehicle Charging Testing Equipment

Impulse Testing Equipment

IEC 61851-1 Impulse Testing Equipment

Product Description

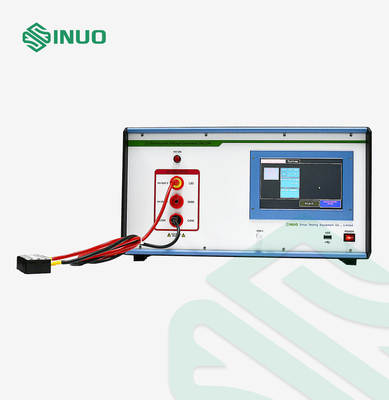

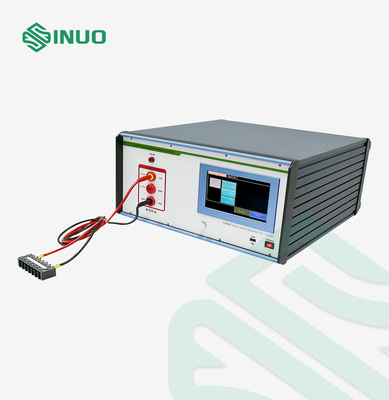

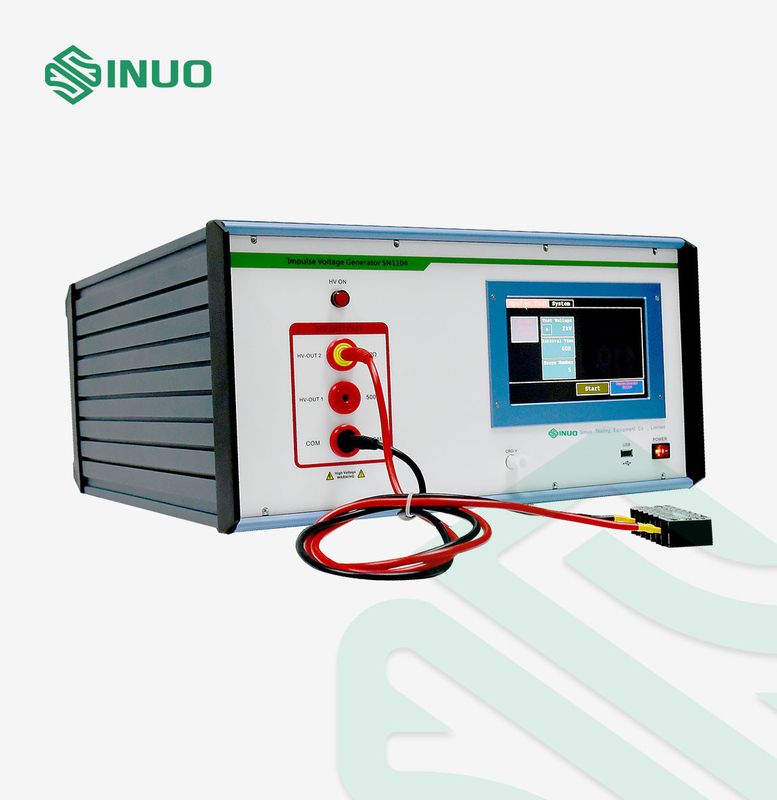

1.2µs/50µs Impulse Dielectric Withstand EVSE Testing Equipment

Complied Standards & Clauses

IEC/CDV 61851-1 "Electric vehicle conductive charging system - Part 1: General requirements" clause 12.3

IEC 60664-1 "Insulation coordination for equipment within low-voltage supply systems - Part 1: Principles, requirements and tests"

IEC 61180 "High-voltage test techniques for low-voltage equipment - Definitions, test and procedure requirements, test equipment"

Equipments Overview

This tester is specially designed to evaluate transient overvoltage resistance, as well as to verify electrical clearance and creepage distance between components.
Suitable Test Samples
Ideal for testing a wide range of electronic devices, including:
• Household Appliances
• Audio/Video Equipment
• Consumer Electronics
• Similar Low-Voltage Electronic Products
Key Feature
During a breakdown test, the unit simulates real-world failure conditions:
Visible spark and audible noise when breakdown occurs
Peak voltage drops sharply (nearly to zero) upon discharge
Repeatable behavior during subsequent tests at same voltage, indicating reliable fault detection

Technical Parameters

Model	SN1104
DC high voltage	Max. 12.5kV
Impact cycles	1 ~ 9999
Working power source	Rated voltage: ~ 220V±10%, 50Hz
Peak voltage: 300 V~ 12,500V	Low: 300V~2,500V High: 2,500 V~ 12,500V
Impulse voltage wave	Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % (Note: the waveform can be checked by an external oscilloscope.)

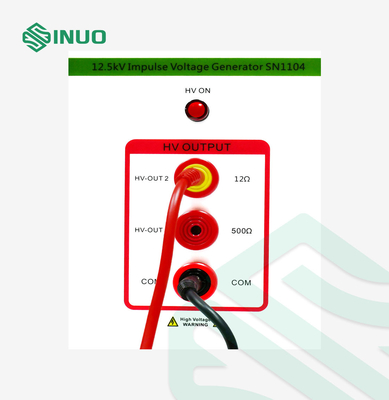

Instrument internal resistance	12Ω± 10%, 40Ω± 10%, 500Ω± 10% three resistance built-in, can be switched by choosing different terminal
Polarity	Positive and negative
Impact interval time	5 ~ 99s
Dimension	630mm×600mm×380mm
Weight	30 KG
