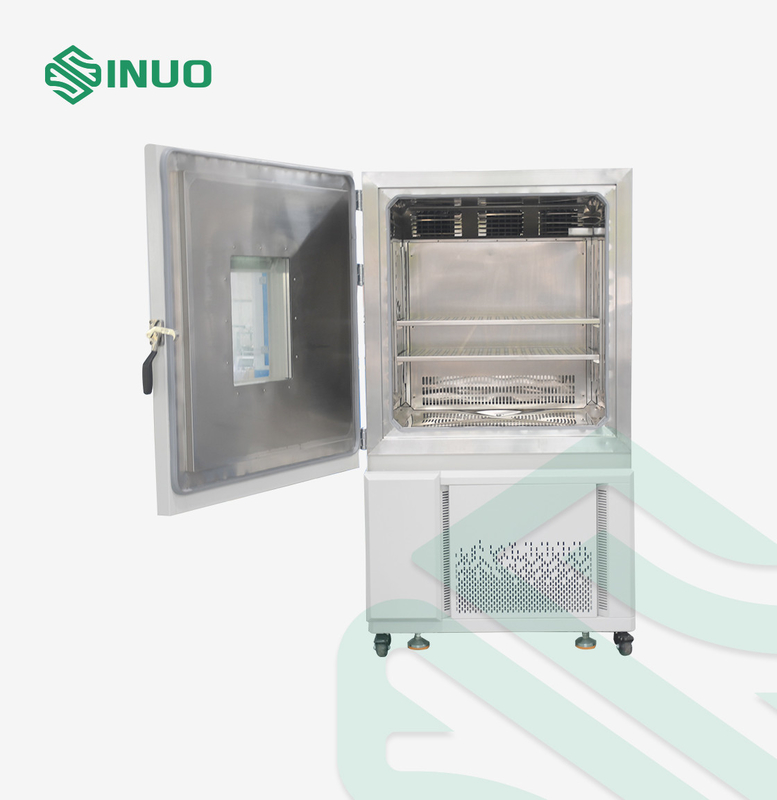

Low Temperature Test Chamber 1000L IEC60068-2-1 Environmental Test Chamber

Low Temperature Test Chamber 1000L IEC60068-2-1 Environmental Test Chamber

Brand Name:	Sinuo
Model Number:	SN2309-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Dimensions:

1000*1000*1000 Mm

Outer Chamber Dimensions:

1280*2150*2050 Mm

Temperature Range:

-70 °C ~ Normal Temperature

Equipment Weight:

580KG

Temperature Deviation:

≤±2.0℃

Temperature Fluctuation:

±0.5℃

Heating Rate:

≧2-3°C/min

Cooling Rate:

≧1°C/min, Average No Load

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

IEC60068-2-1 Environmental Test Chamber

1000L Environmental Test Chamber

Low Temperature Environmental Test Chamber

Product Description

Low Temperature Test Chamber 1000L IEC60068-2-1 Environmental Test Chamber

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

Equipment Overview

Designed in compliance with international testing standards such as IEC60068-2-1/2/30/78, this chamber is a must-have for manufacturers in electronics, automotive, aerospace, and materials industries seeking to validate product durability under harsh conditions.

Key Features
Ultra-Low Temperature Range: From -70°C to ambient, ensuring versatile testing capabilities
Spacious Inner Volume: Generous 1000×1500×1000 mm (W×H×D) test space to accommodate large or multiple test samples
Rapid Cooling Rate: Average cooling rate ≥ 1°C/min (no-load)
Stable Performance: Temperature fluctuation within ±0.5°C and deviation ≤±2.0°C

Applications
Automotive components & EV battery pack testing
Aerospace materials and avionics durability simulation
Electronic circuit board validation
Research institutions requiring controlled environment testing

Technical Parameters

Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	100010001000 mm	128021502050 mm
Weight	About 580KG
Temperature Range	-70 °C ~ Normal temperature
Temperature fluctuation	±0.5℃
Temperature deviation	≤±2.0℃
Heating Rate	≧2-3°C/min
Cooling Rate	≧1°C/min, average no load
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
