SAE J2464 Battery Crush And Nail Penetration Test Equipment 300kN

SAE J2464 Battery Crush And Nail Penetration Test Equipment 300kN

Brand Name:	Sinuo
Model Number:	SN554B-15T
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Battery Size:

300*300*250mm

Battery Weight:

18kg-30kg

Test Space:

1000×1000×1000mm(W*D*H)

Equipment Dimensions:

1200×1500×1850mm

Crush Acupuncture Speed:

0.1-83mm/s (adjustable)

Equipment Structure:

Box-type Structure

Pressure Range:

1～300kN

Displacement:

0～300mm

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

Nail Penetration Battery Crush Test Equipment

300kN Battery Crush Test Equipment

SAE J2464 Battery Crush Test Equipment

Product Description

SAE J2464 Battery Crush And Nail Penetration Test Equipment 300kN

Complied Standards & Clauses

Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, IS0 12405-4:2018, etc.

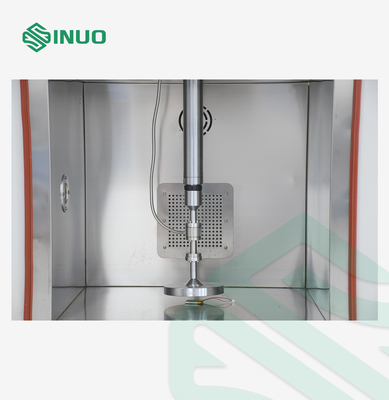

Equipment Overview

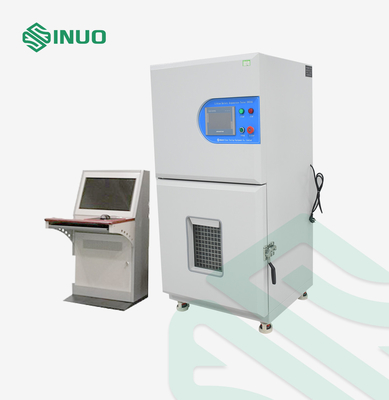

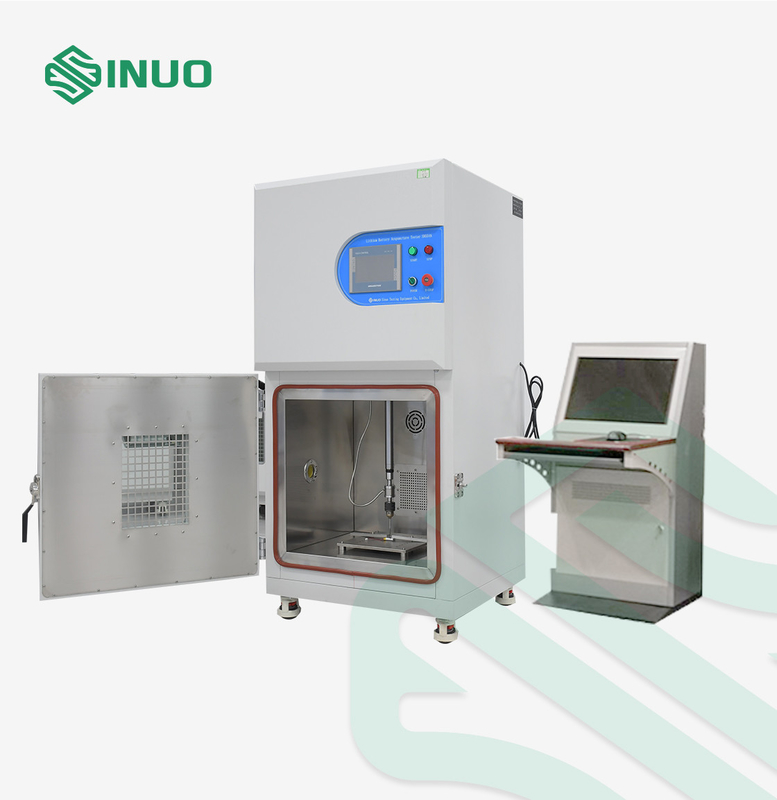

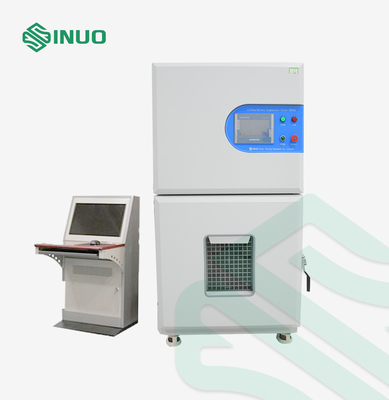

The Battery Crush and Nail Penetration Test Chamber (AIS 038) is an advanced testing system designed to evaluate the safety and performance of lithium-ion batteries under extreme mechanical stress conditions, such as crushing and penetration. This chamber is fully compliant with international standards including SAE J2464, IEC62133-2012, and ISO 12405-4:2018, making it ideal for testing battery safety for various applications, including electric vehicles (EVs) and other power battery systems.

Environmental Requirements:

Power Supply: AC380V (1±10%) at 50±0.5Hz with a three-phase four-wire system and protective grounding.
Site Conditions: The equipment must be installed in a flat, well-ventilated area free from strong vibrations, electromagnetic fields, and hazardous substances. The installation area should have sufficient space for maintenance and safe operation.
Environmental Conditions: Operating temperature: 20°C ± 5°C, humidity: ≤85% RH, and atmospheric pressure between 80 kPa and 106 kPa.

Technical Parameters

User battery cell size	Maximum size (length x width x height): 300300250mm, weight: 18kg-30kg

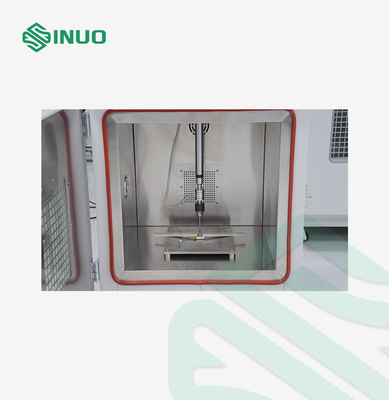

Test space	1000×1000×1000mm (width, depth and height)
Dimensions	1200×1500×1850mm (width, depth and height, subject to actual design)
Equipment structure	Box-type structure
Smoke exhaust port	Smoke exhaust port is 100mm in diameter
Test hole	A 50mm hole is opened on each side
Control method	Remote computer control, distance ≥10m
Drive method	Servo Motor +Electric cylinder drive
Pressure range	1～300kN, sensor maximum range 306kN
Pressure accuracy	±1%FS
Pressure resolution	0.01kN
Pressure holding time	0~99min59s, can be set
Crush acupuncture speed	0.1-83mm/s (adjustable)
Speed accuracy	0.1mm/s~5mm/s, accuracy ±0.05mm/s; 5mm/s~83mm/s, accuracy ±0.1mm/s
Speed resolution	≤0.01mm/s
Displacement	0～300mm
Displacement accuracy	±0.1mm
