Accelerated Weathering Environmental Tester UVC Aging Test Chamber

Brand Name:	Sinuo
Model Number:	SN882C
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Irradiance Range:

UVC254nm: 5W/㎡~10W/㎡

Service Life:

2000 Hours

Equipment Weight:

170KG

Equipment Dimensions:

147*56*135cm(W*D*H)

Total Exposure Area:

5175c㎡

Blackboard Temperature Range:

40℃~80℃

Light Source:

UVC 254

Water Pressure:

0.15Mpa~0.3Mpa

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

UVC Aging Test Chamber

UVC Environmental Tester

Accelerated Weathering Environmental Tester

Product Description

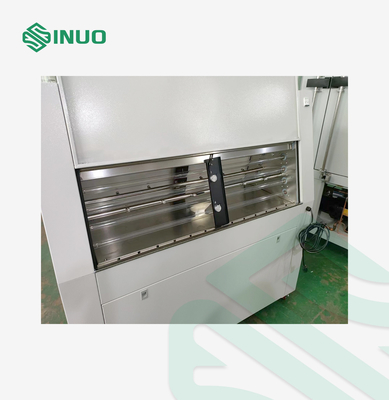

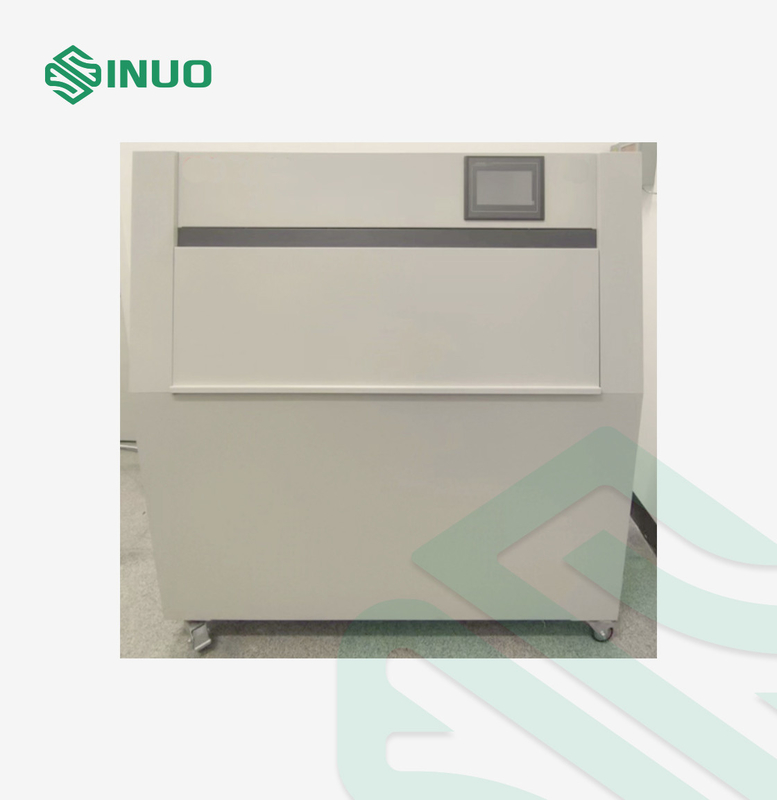

Accelerated Weathering Environmental Tester UVC Aging Test Chamber

Complied Standards & Clauses

The main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1.the main applicable standards for UV-C are GB4706.1 GB/T 17554.1 IEC 60335-1, etc.

Equipment Overview

Ensure your products withstand the test of time with our UVC Aging Test Chamber, designed to simulate prolonged ultraviolet exposure and environmental conditions. This chamber is essential for evaluating the weathering resistance of materials such as plastics, coatings, rubbers, and textiles, aligning with international testing standards.

Key Features
Advanced UV Simulation: Utilizes UVA-340 lamps to replicate the short-wave UV spectrum of sunlight, ensuring accurate aging simulations.
Precise Environmental Control: Offers adjustable temperature ranges from RT+40°C to 70°C and humidity levels ≥90% RH, providing consistent testing conditions.
Durable Construction: Constructed with 304 stainless steel for both interior and exterior, ensuring longevity and resistance to corrosion.
User-Friendly Interface: Equipped with a color touch-screen programmable controller for easy operation and monitoring.
Safety Mechanisms: Features over-temperature protection, water shortage alarms, and circuit overload safeguards to ensure safe operation.

Technical Parameters

Configuration	1 UV aging test chamber, 8 UVC lamps (Not equipped with: pure water machine)
UV-C ultraviolet light	wavelength 200 ~ 275nm
Service life	2000 hours
Irradiance range	UVC254nm: 5W/㎡~10W/㎡
Light source	UVC 254
Condensation	Yes
Rain	Yes
Dimensions	14756135cm(WDH)
Sample rain	Yes
Total exposure area	5175c㎡
Power supply	AC220V, 10A, well grounded
Weight	170KG
Water source	National laboratory level 3 water, water pressure: 0.15Mpa~0.3Mpa
Sample racks	24 (300 mm*75 mm) can hold 48 standard samples.
Blackboard temperature range	40℃~80℃

Details
