3.38m³ Walk-in Climate Test Chamber For Temperature And Humidity Testing

3.38m³ Walk-in Climate Test Chamber For Temperature And Humidity Testing

Brand Name:	Sinuo
Model Number:	SN886-3.38m³
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Range:

-40~+100℃

Effective Volume:

3.38m³

Humidity Range:

20%〜98%RH

Humidity Fluctuation:

±3.0%RH

Cooling Rate:

Average 1℃/min

Heating Rate:

About 3℃/min

Inner Box Dimensions:

1300 Mm*1300 Mm*2000mm(W*D*H)

External Dimensions Approx.:

1600 Mm*1900 Mm*2450 Mm(W*D*H)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

3.38m3 Walk-in Climate Test Chamber

Temperature Walk-in Climate Test Chamber

Humidity Walk-in Climate Test Chamber

Product Description

3.38m³ Walk-in Climate Test Chamber for Temperature and Humidity Testing

Complied Standards & Clauses

Applied Standard:

IEC60068-2-1:2007 Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT

IEC60068-2-2:2007 Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT

IEC60068-2-78:2001 Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT

IEC60068-2-22:2005 Environmental Testing Part 2-22: Tests Test N: Change of temperature, IDT

Product Overview

Take your product testing to the next level with the SN886 Walk-in Temperature and Humidity Test Chamber, engineered for large-scale reliability and extreme environmental simulation. With a generous 3.38m³ interior, this walk-in chamber is the ideal solution for testing oversized or multiple samples under precisely controlled climate conditions.

Equipment use conditions

Voltage: three-phase 380V±10%; 50±10Hz; three-phase four-wire + ground wire;
Ambient temperature: <30℃;
Ambient humidity: < 85%R.H (25℃);
Atmospheric pressure: 86～106Kpa;
Environmental conditions: no strong vibration around the equipment site, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight or other heat sources.
The equipment should be placed horizontally in a well-ventilated test room, and sufficient space should be left around for operation and maintenance.
Water tower: (15 refrigeration tons, 12 cubic meters/H)
Power: 32KW 80A

Technical Parameters

Inner box volume	3.38m³
Temperature range	-40~+100℃
Temperature uniformity	±2.0℃ (In steady state)
Temperature fluctuation	±0.5℃ (In steady state)
Temperature deviation	±2.0℃ (In steady state)
Heating rate	About 3℃/min (average rate over the whole process under no load)
Cooling rate	4 (average rate over the whole process under no load)
Humidity range	20%〜98%RH
Humidity fluctuation	±3.0%RH (at constant state)
Humidity deviation	+2.0%RH～-3%RH (＞75%RH); ±5.0%RH (≤75%RH) (at constant state)
Cooling method	Water-cooled type
Power supply voltage	380V±10% (three-phase five-wire); 50Hz±10%

Workshop dimensions	Width 1300mm × Depth 1300mm × Height 2000mm
Outer dimensions	Chamber body is approx. Width 1600mm × Depth 1900mm × Height 2450mm (excluding motor protrusion height) Subject to actual size

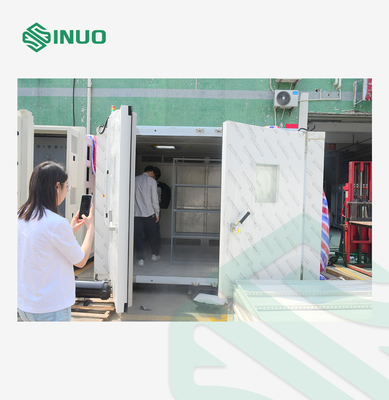

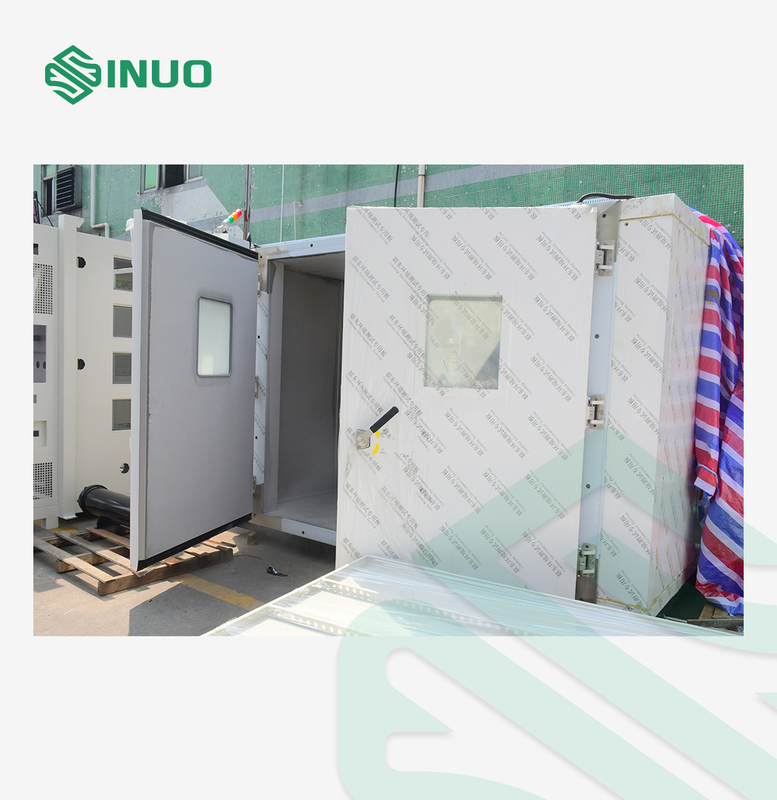

Door	1) Double-door hinged door, door opening size 2 meters wide × 2 meters high, two silicone rubber seals and anti-frost electric heating device on the door frame; 2) Door sealing: high and low temperature resistant high-quality sealing strips are used, with good sealing; 3) Condensation elimination: electric heating is pre-buried around the door to prevent condensation at low temperatures; 4) Safety protection: The door can be opened from the inside and outside, the inner box has a safety hammer escape device, and the safety equipment is running an emergency stop switch (with a protective cover) to ensure the personal safety of the operator.

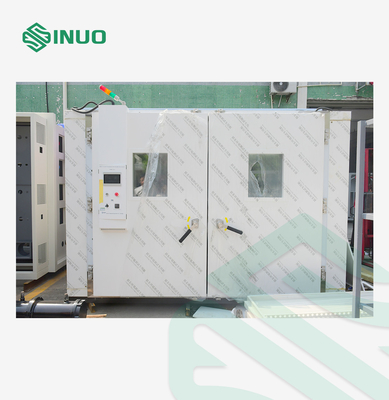

Observation window	Two hollow glass observation windows, one on each side of the test chamber door, size: 400×600mm (width×height)

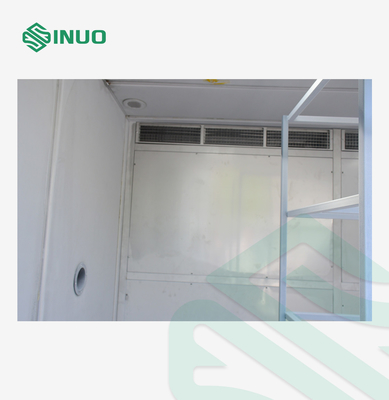

Test lead hole	Wiring holes: 2 100mm, 1 on each side of the door opening. The host is on the right, the cabinet is on the left. There is one more wiring hole on the right side of the cabinet.

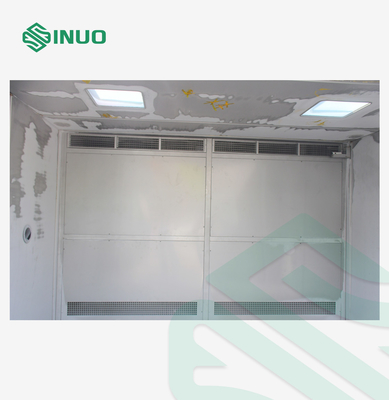

Lighting	The top of the studio is equipped with a high and low temperature explosion-proof lamp to facilitate observation of the sample test status
Structural strength	Test box bottom plate load-bearing capacity: ≧100KG (uniform load)
Warehouse board inner wall material	SUS304 stainless steel, thickness 1.0mm
Warehouse board outer wall material	Colored steel plate
Insulation material	Hard polyurethane foam material, thickness 100mm
