EN 62752 Safety Testing AC Charging Gun Comprehensive Test System

EN 62752 Safety Testing AC Charging Gun Comprehensive Test System

Brand Name:	Sinuo
Model Number:	SNJ8163
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Load Current:

1~40A

Test Station:

1 Station

Test Products:

Single-phase, Three-phase Products

Rated Input:

Three-phase Four-wire Input 380V ±10% 50/60Hz ±5%

Low Grade:

0.0V～150.0V

High Grade:

0.0V～300.0V

ACW:

0-5000V/12mA

DCW:

0-6000V/6mA

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

AC Charging Gun Comprehensive Test System

EN 62752 AC Charging Comprehensive Test System

Product Description

EN 62752 Safety Testing AC Charging Gun Comprehensive Test System

Complied Standards & Clauses

According to the standard IEC/EN 61851 , IEC 62196-2-2016, GB/T 18487.1-2015, SAE J1772-2017, iccpd according to IEC /EN 62752 and other standards.

Product Overview

it is a specially developed automated intelligent test detection system, the test system is suitable for charging conduction function testing and verification of national standard, European standard, and American standard charging gun/pile standard, and can be widely used in R & D design and production factory inspection.

Equipment features: the operating table is designed according to ergonomics, the system software has a key test, the test process parameters can be flexibly configured, all the results of the test can be recorded and queried, with a two-dimensional code scanning function, can be traced back to the test data of the product, can be connected to the MES system.

Technical Parameters

Applicable products	Charging gun/charging pile
Testing standard	National standard/European standard/American standard
Working voltage	Single-phase AC 0~300V, Three-phase AC line voltage 0~420V, continuously adjustable
Load Current	1~40A continuously adjustable
Test station	1 station
Test Products	Single-phase, three-phase products Suitable for mode 2 and mode 3 products

Details

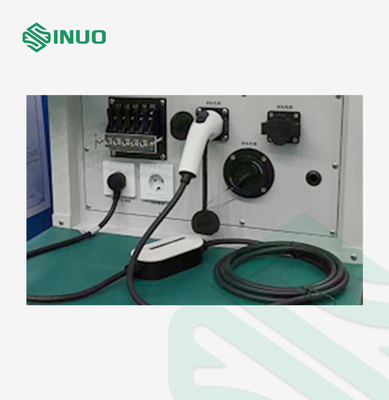

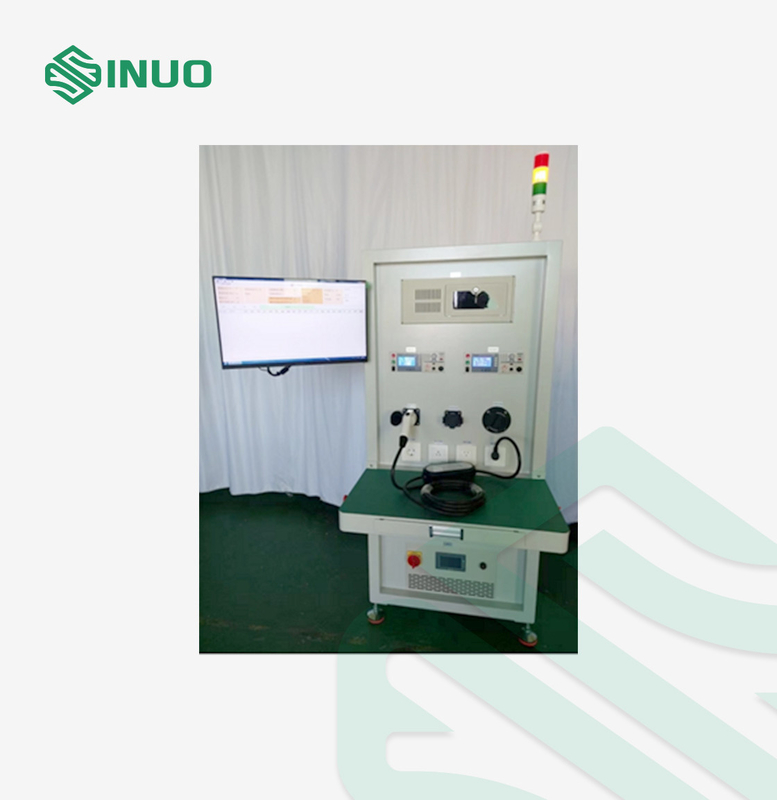

EN 62752 Safety Testing AC Charging Gun Comprehensive Test System 0
