IEC 62196-1 Gauges On Figure 11 EV Connector Testing Equipment

IEC 62196-1 Gauges On Figure 11 EV Connector Testing Equipment

Brand Name:	Sinuo
Model Number:	SNQC1011
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Complied Standards:

IEC 62196-1

Complied Clauses:

Clause 13.2.1 Fig 11

Material:

Die Steel

Quantity:

16 PCS

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Figure 11 EV Connector Testing Equipment

IEC 62196-1 EV Connector Testing Equipment

Product Description

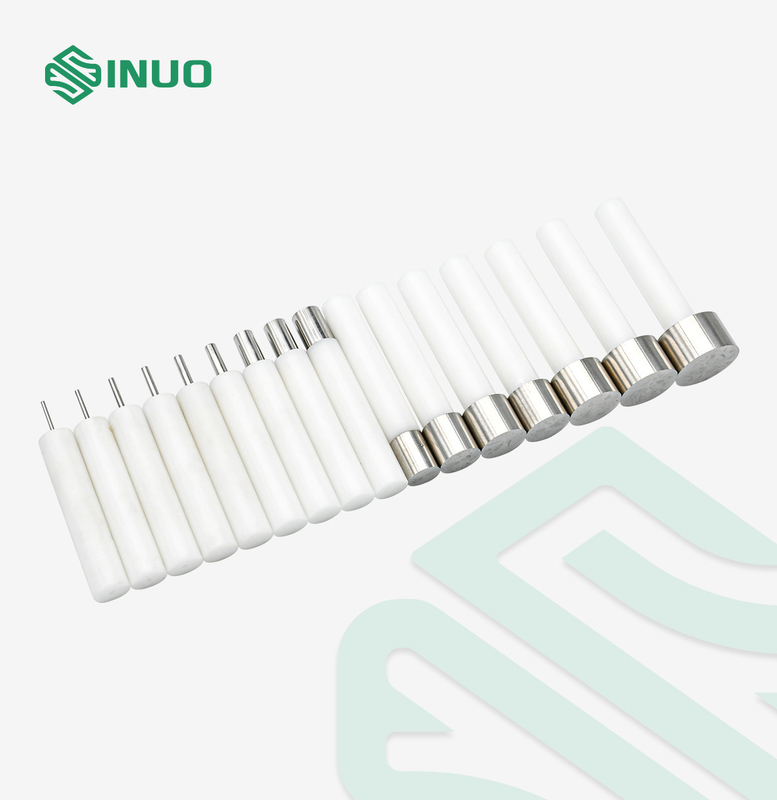

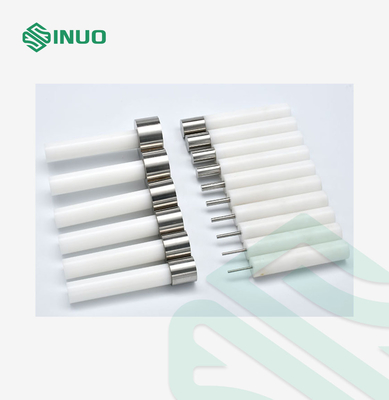

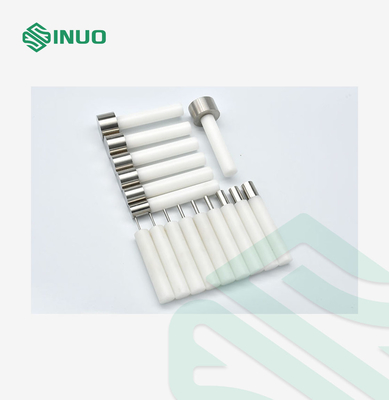

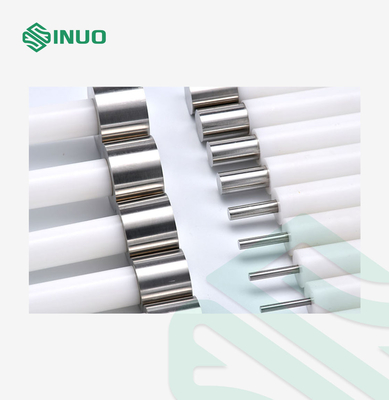

IEC 62196-1 Gauges on Figure 11 EV Connector Testing Equipment

Complied Standards & Clauses

The gauges conform to IEC 62196-1:2022 clause 13.2.1 fig 11.

Product Overview

it is a specially developed automated intelligent test detection system, the test system is suitable for charging conduction function testing and verification of national standard, European standard, and American standard charging gun/pile standard, and can be widely used in R & D design and production factory inspection.

Equipment features: the operating table is designed according to ergonomics, the system software has a key test, the test process parameters can be flexibly configured, all the results of the test can be recorded and queried, with a two-dimensional code scanning function, can be traced back to the test data of the product, can be connected to the MES system.

Technical Parameters

The gauges conform to IEC 62196-1:2022 clause 13.2.1 fig 11.

Total 16 PCS.

Material: Die steel

The sizes are according to the following table:
