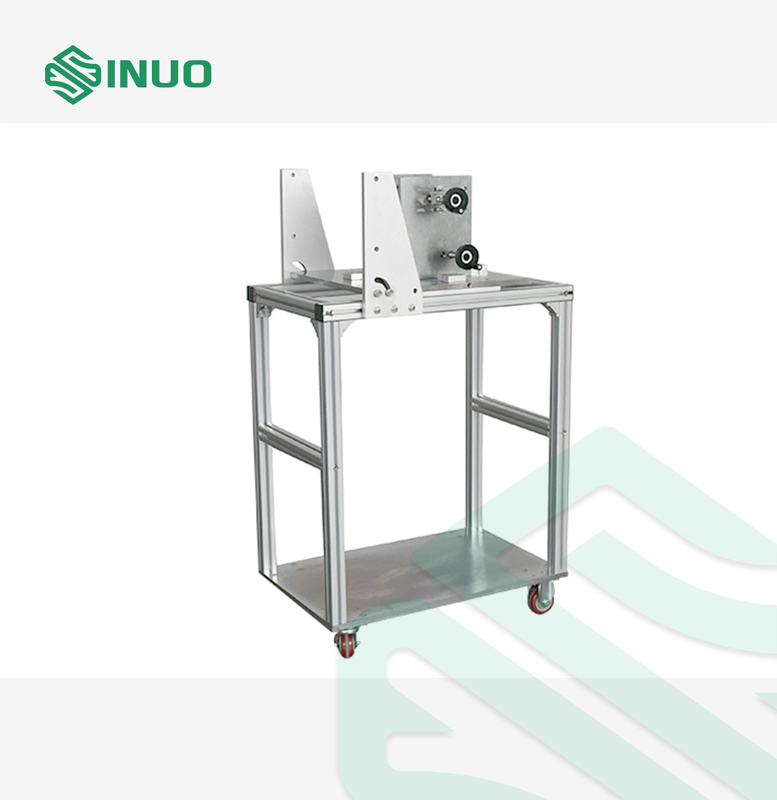

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1

Brand Name:	Sinuo
Model Number:	SNQC1013
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Table:

Table 5

Applied Figures:

Fig13, Fig14

Applied Standard:

IEC 62196-1

Applied Clauses:

Clause 14.1.5, 14.1.6

Weight Configuration:

165-750N

Operation Method:

Manual Operation

Test Station:

Single Station

Test Plugs:

Customized

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

IEC 62196-1 Test Apparatus

Withdrawal Force Latching Verification Test Apparatus

Withdrawal Force Verification Test Apparatus

Product Description

Withdrawal Force and Latching Verification Test Apparatus IEC 62196-1

Complied Standards & Clauses

This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.

Equipment Overview

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.

Technical Parameters

A Withdrawal force

The switched EV socket-outlet or switched vehicle connector with interlock is fixed to the support of the apparatus shown in Figure 13 of IEC62196-1:2022 that the axis of separation is vertical, and the movement of mating accessory is downwards.

The withdrawal force of the socket-outlet shall meet the requirements of following Table. The weights are included.

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1 0

B.1 Apparatus for checking the withdrawal force:

This device is mainly composed of the installation fixture, the clamping device, principal weight, supplementary weight and the test plug. Based on experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, and the fixture for holding the sample is configured. The specific shape is shown in figure 1.

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1 1

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1 2

Figure1

B.2 Verification of the latching device:

Withdrawal Force And Latching Verification Test Apparatus IEC 62196-1 4
