IPX3 IPX4 Handheld Nozzle Water Spray Water Ingress Testing Equipment

IPX3 IPX4 Handheld Nozzle Water Spray Water Ingress Testing Equipment

Brand Name:	Sinuo
Model Number:	SN446
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	100 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Contents:

IPX3, IPX4

Applied Standard:

IEC60529

Spherical Diameter:

Ф75.5mm

Outer Diameter:

Ф102mm

Water Flow:

10L/min±5%

Pressure Gauge:

0～0.25Mpa

Moving Shield:

Made Of Aluminum, Detachable

Water Pressure:

50～150Kpa

Packaging Details:

Plywood Case

Supply Ability:

100 sets/month

Product Description

IPX3 IPX4 Handheld Nozzle Water Spray Water Ingress Testing Equipment

Complied Standards & Clauses

IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.

IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

Equipment Overview

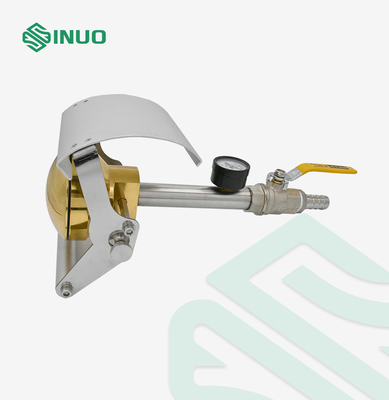

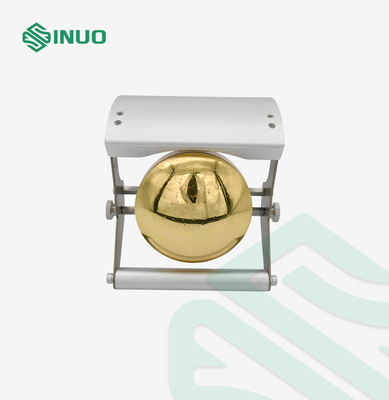

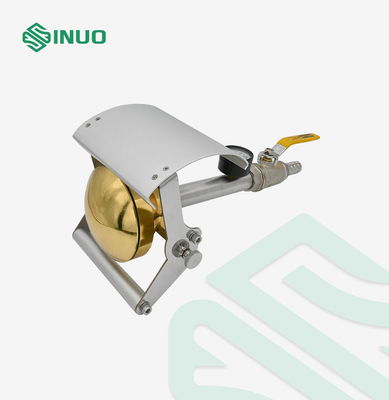

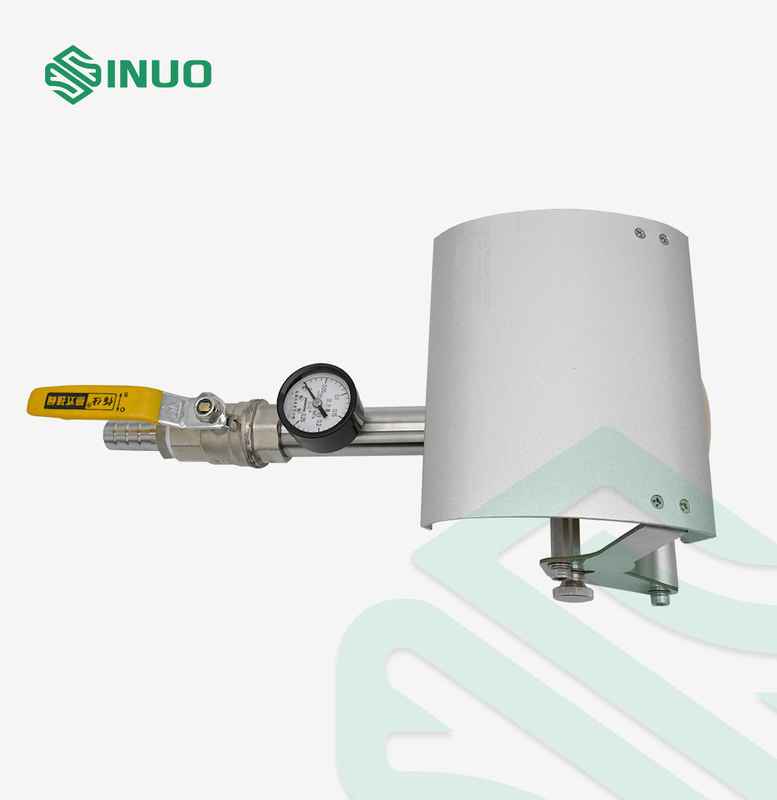

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4. The water pressure can be adjusted using the flow control handle on the device to give the required flow rate. The pressure can be seen on the gauge which is conveniently positioned by the nozzle. A movable shield can be put down over a portion of the nozzle for IPX3 or moved out of the spray pattern for IPX4.

Technical Parameters

Parameters of Spray Nozzle	Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass.
Water Flow	10L/min±5% adjustable by flow meter (flow meter is not included in this item, should be prepared by user)
Pressure	50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield	Made of aluminum, can be detachable Note: the aluminum moving shield is easy to deform, pay attention during use

Details

IPX3 IPX4 Handheld Nozzle Water Spray Water Ingress Testing Equipment 0
