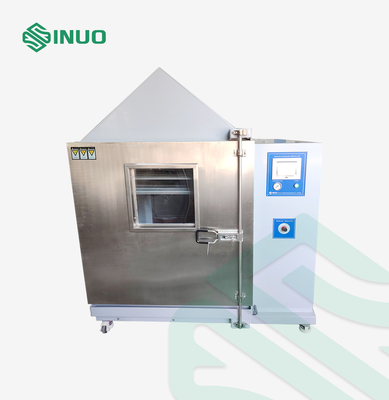

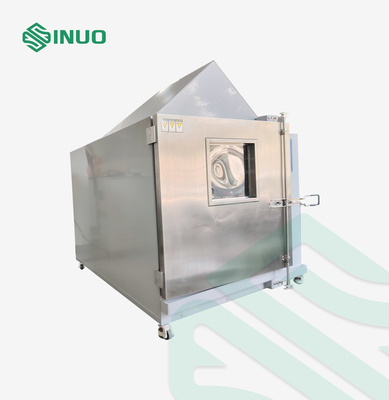

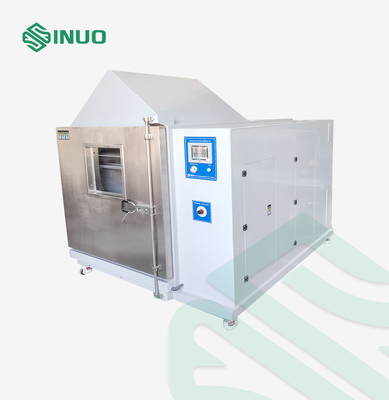

ISO 16750-4 Corrosion Test Chamber Compound Salt Spray Tester 1m³

ISO 16750-4 Corrosion Test Chamber Compound Salt Spray Tester 1m³

Brand Name:	Sinuo
Model Number:	SN8810C-1m³
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Box Size:

1000×1000×1000 W×D×H

Nominal Internal Volume:

1m³

Equipment Weight:

500kg

External Space:

1600×2400×2000 W×D×H

Maximum Current:

23A

Bearing Capacity:

80KG

Temperature Range:

20～70℃

Machine Power:

15KW

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

ISO 16750-4 Corrosion Test Chamber Compound Salt Spray Tester 1m³

Complied Standards & Clauses

It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.

Equipment Overview

The equipment has an emergency braking function, and a brake switch is installed on the equipment. When an abnormal situation occurs, the equipment can be powered off through the control switch.

The equipment is equipped with corresponding system software, which can run stably on the provided operating system, and the software interface is in Chinese or English, the software includes temperature change test, humidity, precision calibration, and equipment self-test module.

The system software can record in real time, save automatically, and optimize data, and can draw temperature-time, humidity-time curves through software settings.

The system software is set with a safety protection parameter interface, and after the setting is completed, it will be given priority during the test process, thereby ensuring the safety of the test.

The system software can achieve the function of test data security protection, and the software has the function of administrator, which can limit the operation authority of general operators.

The system software has the function of post-data processing, which can support the import of multiple data files, support data filtering, and support arbitrary X-axis and Y-axis selection.

Technical Parameters

Total machine power

15KW

Maximum current

23A

Power supply conditions and power supply

AC380V three-phase four-wire system + protective grounding; the allowable fluctuation range of voltage is ±10%V.

The allowable frequency fluctuation range is 50±0.5HZ; TN-S power supply or TT power supply.

The grounding resistance of the protective ground wire is less than 4Ω.

The user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and the switch must independently control the use of the equipment. When placing electrified samples in the chamber box, please use an external power supply for the sample power supply, and do not use the local power supply directly.

Product Name	Compound Salt Spray Test Chamber
Product model	SN8810C-1m³
Nominal internal volume	1m³ Note: Does not include the volume of the top sloping roof
Effective size of inner box (mm)	1000×1000×1000 W×D×H Note: The height of the top slope is 600mm
External space (mm)	About 1600×2400×2000 W×D×H
Weight	About 500kg
Bearing capacity	About 80KG

Control accuracy	Temperature resolution: 0.1°C Humidity resolution: 0.1%R.H Temperature deviation: ±2.0℃ Humidity deviation: ≤+2-3%R.H when ≥75%RH, humidity deviation: ≤±5%R.H when <75%RH Temperature fluctuation: ±1℃ Humidity fluctuation: ±3%R.H Note: The temperature uniformity and deviation are measured under the conditions of ambient temperature +25°C, relative humidity ≤85% RH, and no sample.
Heating rate of the test room	RT→+60℃≤45 min
Heating rate of saturated tank	RT→+65℃≤45 min
Specimen restrictions	This test chamber prohibits: Testing or storage of samples of flammable, explosive and volatile substances Testing or storage of samples of corrosive substances Testing or storage of biological samples Testing or storage of samples of strong electromagnetic emission sources Testing and storage of radioactive material samples Testing and storage of samples of highly toxic substances Testing and storage of samples that may produce highly toxic substances during testing or storage
