Large Walk-in Environmental Test Chamber Walk-in Climate Test Chamber

Large Walk-in Environmental Test Chamber Walk-in Climate Test Chamber

Brand Name:	Sinuo
Model Number:	SN886-3.38m³
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Range:

-40~+100℃

Effective Volume:

3.38m³

Humidity Range:

20%〜98%RH

Humidity Fluctuation:

±3.0%RH

Cooling Rate:

Average 1℃/min

Heating Rate:

About 3℃/min

Inner Box Dimensions:

1300 Mm*1300 Mm*2000mm(W*D*H)

External Dimensions Approx.:

1600 Mm*1900 Mm*2450 Mm(W*D*H)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

Large Walk-in Environmental Test Chamber Walk-in Climate Test Chamber

Complied Standards & Clauses

Applied Standard:

IEC60068-2-1:2007 Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT

IEC60068-2-2:2007 Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT

IEC60068-2-78:2001 Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT

IEC60068-2-22:2005 Environmental Testing Part 2-22: Tests Test N: Change of temperature, IDT

Product Overview

This equipment is suitable for high and low temperature tests on electrical, electronic, mechanical and large parts, semi-finished products, finished products, etc. It can simulate high and low temperature changes to test the quality and reliability of products and parts.

Sample Restrictions:

Testing and storage of samples of volatile substances;
Testing and storage of samples of corrosive substances;
Testing or storage of biological samples;
Testing and storage of samples of strong electromagnetic radiation sources.

Technical Parameters

Workshop dimensions	Width 1300mm × Depth 1300mm × Height 2000mm
Outer dimensions	Chamber body is approx. Width 1600mm × Depth 1900mm × Height 2450mm (excluding motor protrusion height) Subject to actual size

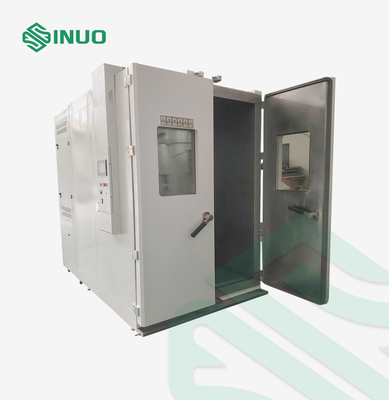

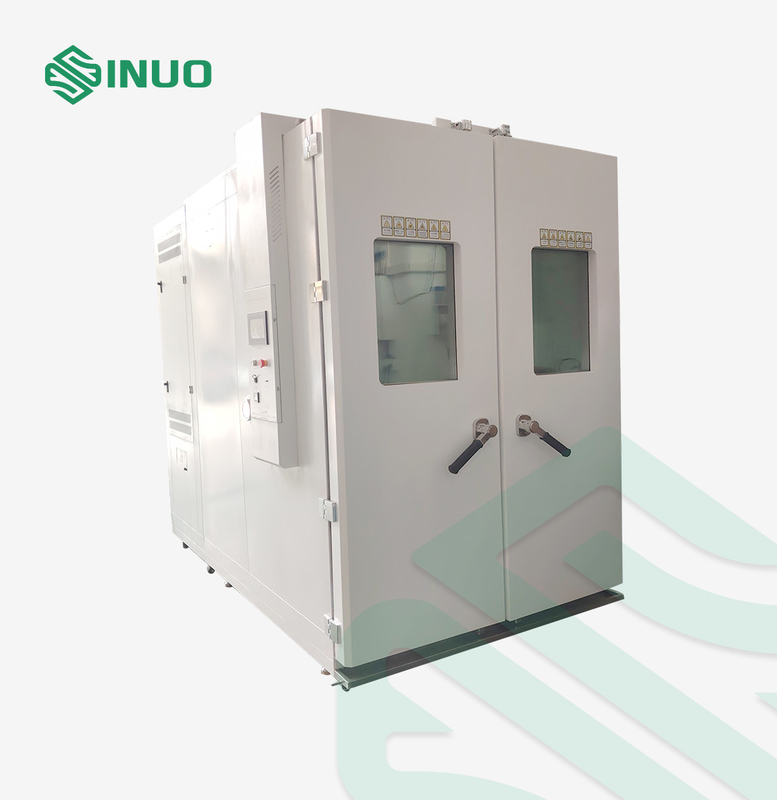

Door	1) Double-door hinged door, door opening size 2 meters wide × 2 meters high, two silicone rubber seals and anti-frost electric heating device on the door frame; 2) Door sealing: high and low temperature resistant high-quality sealing strips are used, with good sealing; 3) Condensation elimination: electric heating is pre-buried around the door to prevent condensation at low temperatures; 4) Safety protection: The door can be opened from the inside and outside, the inner box has a safety hammer escape device, and the safety equipment is running an emergency stop switch (with a protective cover) to ensure the personal safety of the operator.

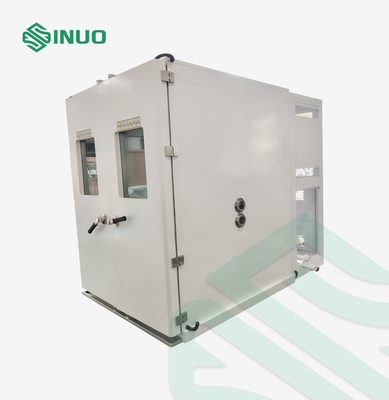

Observation window	Two hollow glass observation windows, one on each side of the test chamber door, size: 400×600mm (width×height)

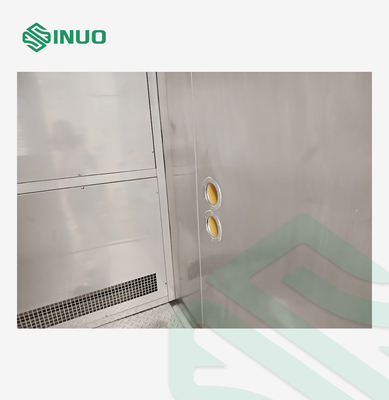

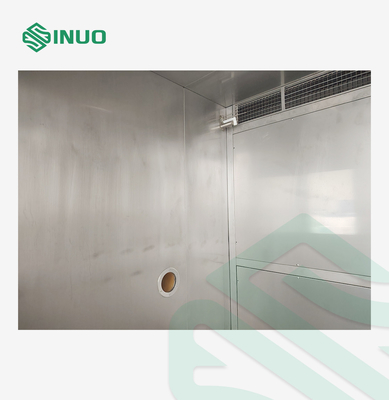

Test lead hole	Wiring holes: 2 100mm, 1 on each side of the door opening. The host is on the right, the cabinet is on the left. There is one more wiring hole on the right side of the cabinet.
Lighting	The top of the studio is equipped with a high and low temperature explosion-proof lamp to facilitate observation of the sample test status
Structural strength	Test box bottom plate load-bearing capacity: ≧100KG (uniform load)
Warehouse board inner wall material	SUS304 stainless steel, thickness 1.0mm
Warehouse board outer wall material	Colored steel plate
Insulation material	Hard polyurethane foam material, thickness 100mm
Warehouse base, electric control box and freezer	Using national standard angle iron + 6# channel steel + steel plate spraying
Pressure balance port	There is a pressure balance port on the top of the working room: when the pressure in the box is too high, it will be automatically discharged. Rapidly reduce the pressure in the cabin, equipped with a safety shield.
Ramp	Equipped with 2 meters long X500MM wide stainless steel patterned plate, bearing 200KG
