IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics

IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics

Brand Name:	Sinuo
Model Number:	SN442
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Flow Range:

0.667-4.167 L/min

Drip Area:

1000*1000mm

Test Flow:

1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)

Water Dripping Height:

200mm

Equipment Body Material:

Industrial Aluminum Alloy

Test Time:

1-9999 Seconds

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics

Complied Standards & Clauses

It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.

Product Overview

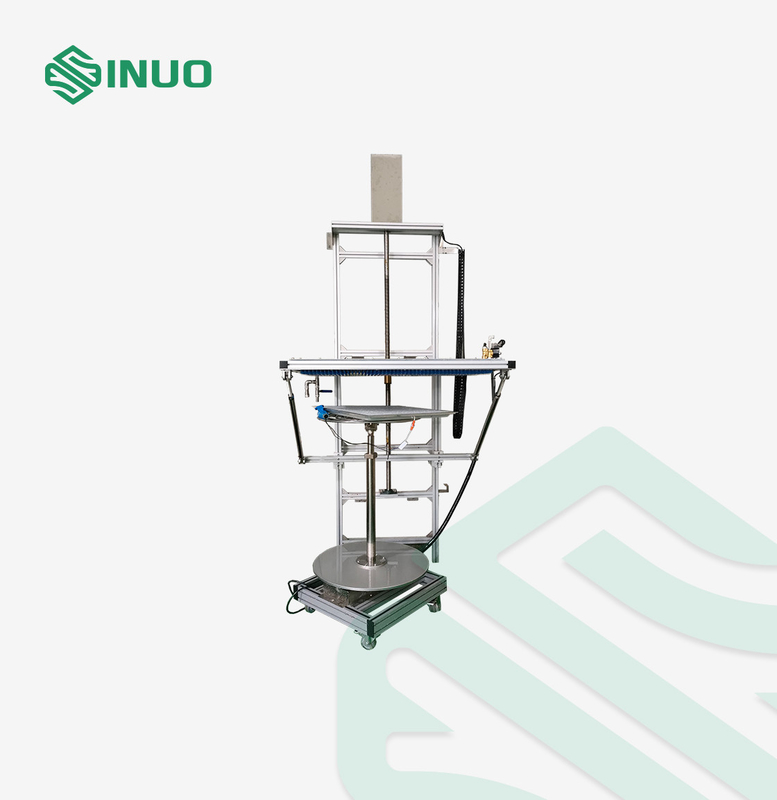

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.

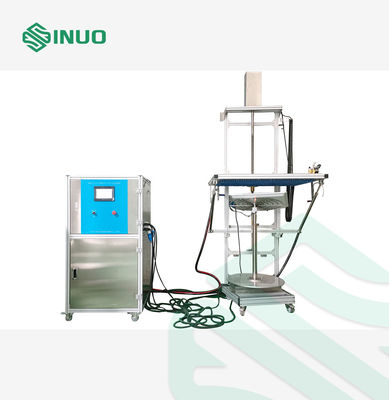

The rise and fall of the drip box is controlled by the motor. The electrical control cabinet is with PLC and touch screen.

1. Stainless steel fine filter for dirt filtration.

2. Adopts compressed air (compressed air should be prepared by user) to blow out the water in the needles, to prevent water reactive substances and atmospheric blocking needles.

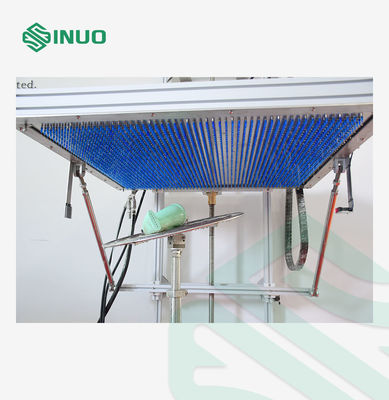

3. Stainless steel general medical needle nozzles, easy to buy, not easy to rust.

4. Needle nozzles and needle nozzle seats using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.

Technical Parameters

Item	Specifications
Power supply of this equipment	Three phase AC380V, 50Hz, 4KW
Power supply for test sample	Single phase AC220V, 16A
LWGYD-4 flow rate Sensors	Flow range: 0.667-4.167 L/min, pulse output
Small water pump	Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range	IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2	Drip area: 1000*1000mm
	Diameter of drip hole: 0.4mm
	Distance between each two neighbor holes:20mm
	Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Test time	Set according to the test standard (range 1-9999 seconds), the unit is: second
Water dripping height	200mm (automatically controlled by the test equipment)
Water Drainage	Automatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
Equipment body material	Industrial aluminum alloy
Installation method	Wall Mount
Turntable	1-5r/ min, can be set

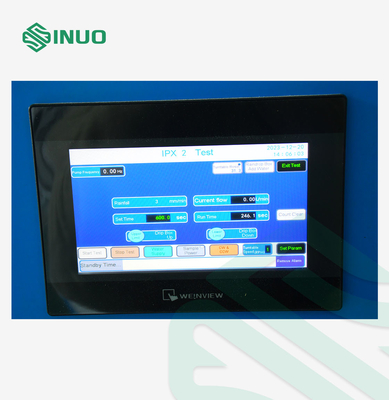

Control	PLC & 7” touch screen
