IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine

IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine

Brand Name:	Sinuo
Model Number:	SN444
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Needle Hole:

Φ0.4mm

Raining Speed:

IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);

Water Flow:

0.07 L/minX

Pressure Gauge:

0~0.25MPa

Turntable Diameter:

Φ600mm

Rotation Speed:

1r/min

Testing Time:

1-99999S Can Be Preset

Electrical Control:

PLC & Touch Screen

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine

Complied Standards & Clauses

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013.

Product Overview

It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.

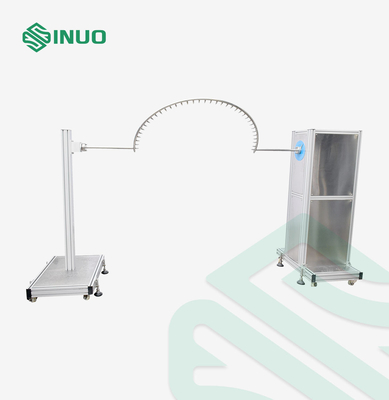

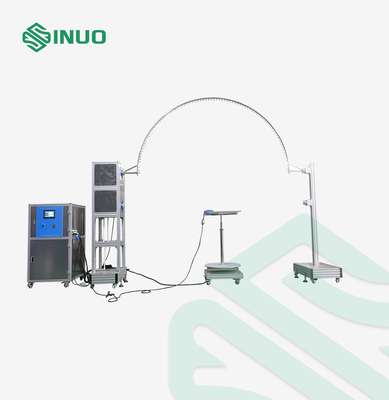

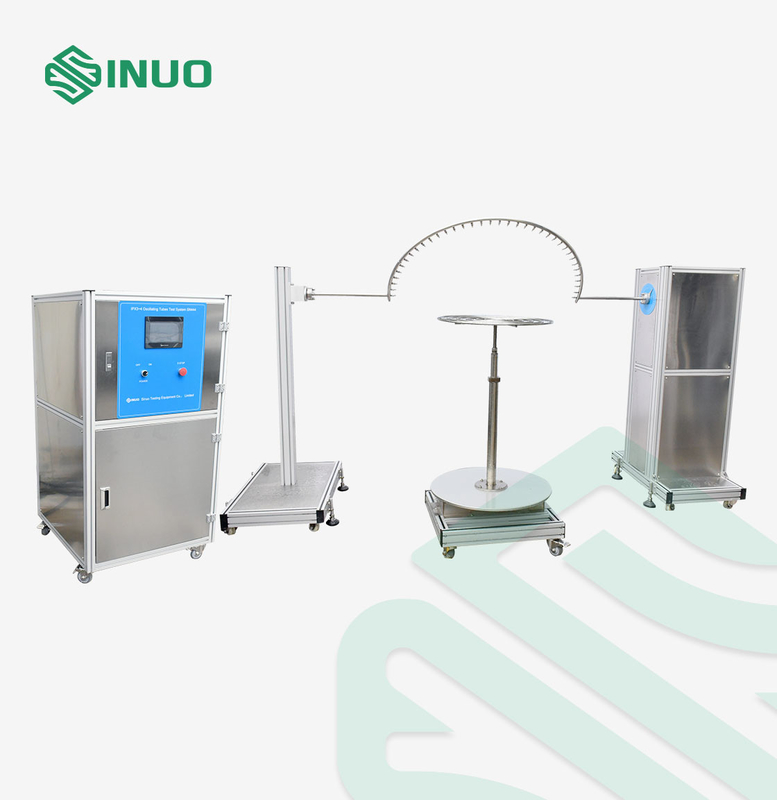

The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.

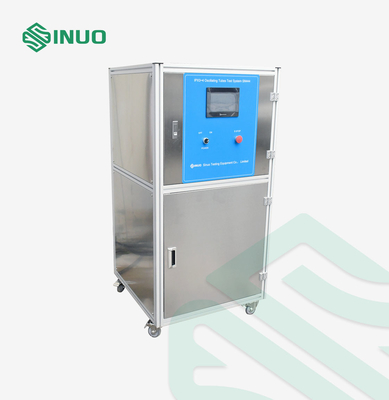

The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.

Technical Parameters

Item	parameters
Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
The size of the oscillating tube	Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
Needle hole	Φ0.4mm
Included angle of two holes	IPX3:120°; IPX4:180°

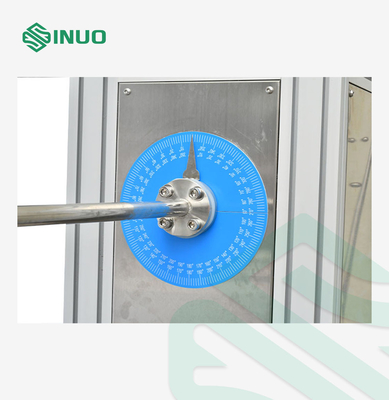

Oscillating tube swing angle	Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Raining speed	IPX3:4s/time (2×120°); IPX4:12s/time (2×360°);
Water flow	Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)
