IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test Machine

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray And Jet Nozzle Test Machine

Brand Name:	Sinuo
Model Number:	SN448
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Diameter:

Ф102mm

Spherical Diameter:

SФ75.5mm

Water Flow:

10L/min±5%

Moving Shield:

Made Of Aluminum

Delivery Rate:

IPX5: 12.5±0.625L/min IPX6: 100±5 L/min

Pressure Gauge:

0~0.25MPa

Test Duration:

0.01S～99.9 Min

Power Supply:

AC380V,50Hz, 4KW

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

IPX3 IPX4 Spray Test System

IPX5 IPX6 Jet Test System

Spray and Jet Nozzle Test Machine

Product Description

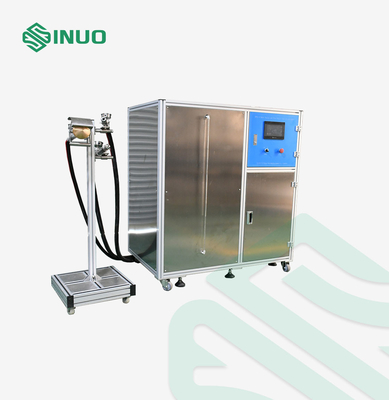

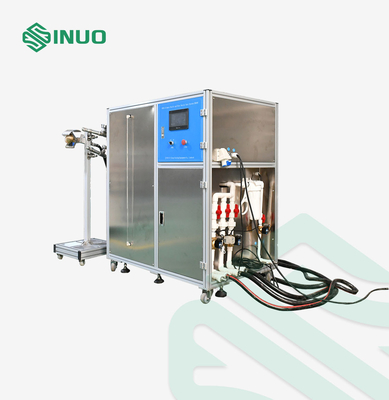

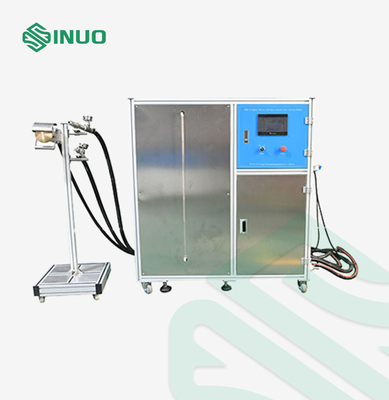

IPX3 IPX4 Spray Test IPX5 IPX6 Jet Test System Spray and Jet Nozzle Test Machine

Complied Standards & Clauses

IPX3~6 Spray Nozzle and Hose Nozzle Test System is designed and manufactured according to IEC60529:2013.

Product Overview

The testing system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX3, IPX4, IPX5 and IPX6.

This IPX4, IPX5 and IPX6 water ingress testing equipment ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 5 and 6.

Technical Parameters

IPX3/4

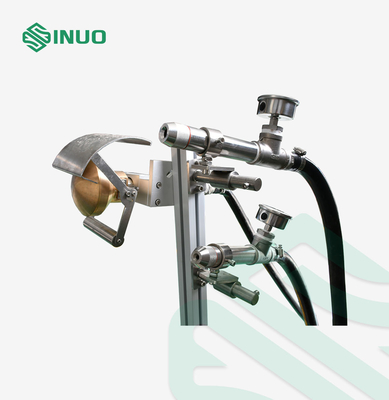

Parameters of Spray Nozzle	Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
Water Flow	10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
Pressure	50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa
Moving Shield	Made of aluminum, can be detachable
Water Spray Directions	The angle of water spraying can be adjusted
IPX5/6
Parameters of Hose Nozzle	IPX5: Ф6.3mm; IPX6: Ф12.5mm
Delivery Rate	IPX5: 12.5±0.625L/min IPX6: 100±5 L/min
Distance from Nozzle to Enclosure Surface	2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions	The angle of water jetting can be adjusted
