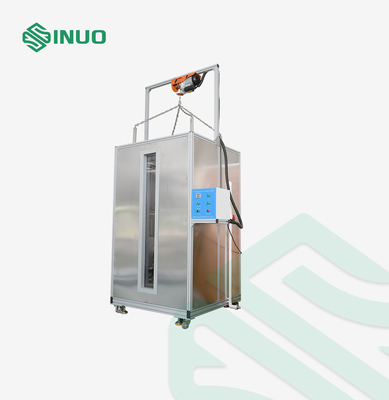

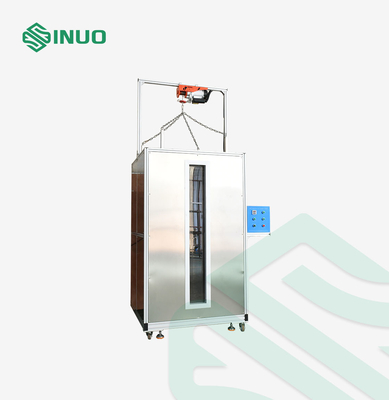

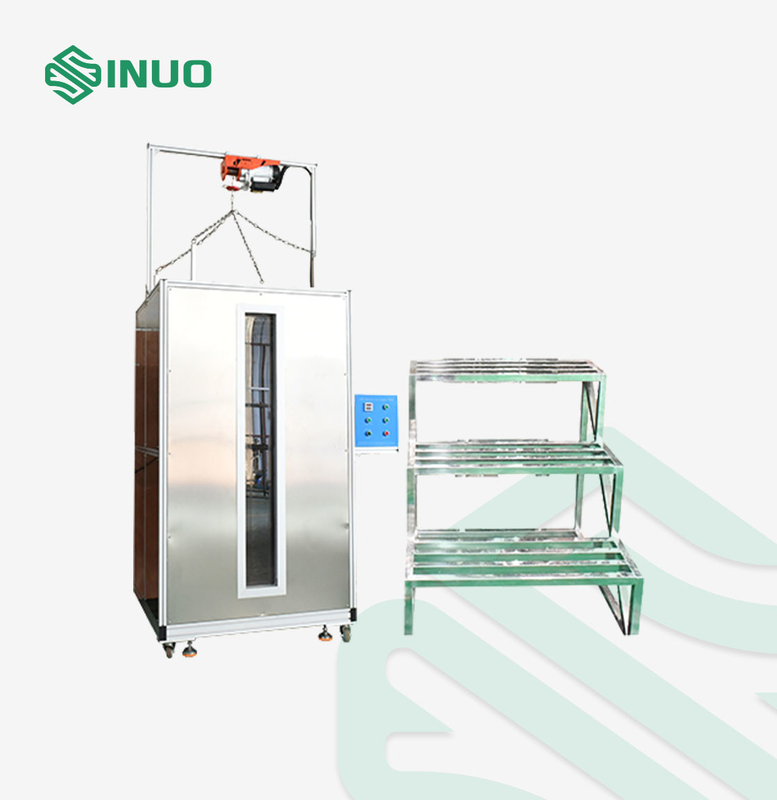

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber

Brand Name:	Sinuo
Model Number:	SN4410
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Control & Operation:

Push-button Operation

Applied Standard:

IEC 60529

Water Depth:

1200mm Or Customized

Inner Size:

Can Be Customized

Lifting Control:

Driven By Electric Hoist

Basket Size:

Can Be Customized

Tank Material:

Stainless Steel

Test Duration:

30 Min

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.

Equipment Overview

It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment. Through the test, check whether the product waterproof level meet the requirements, for product design, R&D and factory inspection use.

Technical Parameters

Chamber external size	Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size	Length 1000* W 1000* H1800mm
Max. test water depth	1.8m
Observation window	Tempered glass (thickness: 12mm)
Observation window width	200mm
Water level adjustment method	Water inlet / drain valve, manual adjustment
Water level display	Scale (accuracy 1mm)
External chamber material	Stainless steel plates + Aluminum profile frame
Inner chamber material	2.0mm thickness stainless steel

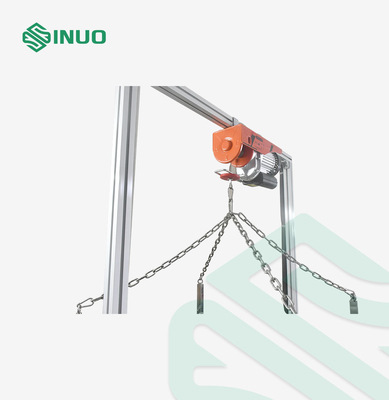

Electric lifting basket	Made of stainless steel, controlled by electric hoist
Control method	Buttons (non-PLC)
Test time	0.01 second-99.99hours can be preset
Immersion depth requirements	The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content	IPX7
Power supply	AC 220V,50Hz, 1KW
