ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber

ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber

Brand Name:	Sinuo
Model Number:	SN8810C-1m³
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Box Size:

1000×1000×1000 W×D×H

Nominal Internal Volume:

1m³

Equipment Weight:

500kg

External Space:

1600×2400×2000 W×D×H

Maximum Current:

23A

Bearing Capacity:

80KG

Temperature Range:

20～70℃

Machine Power:

15KW

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

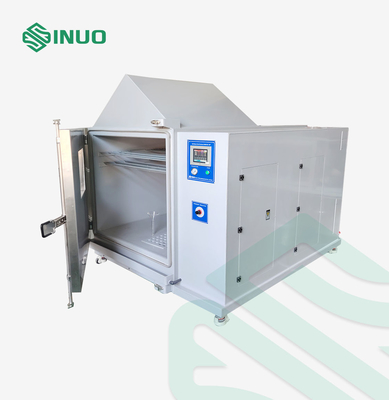

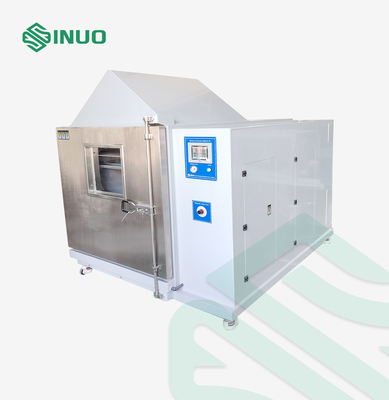

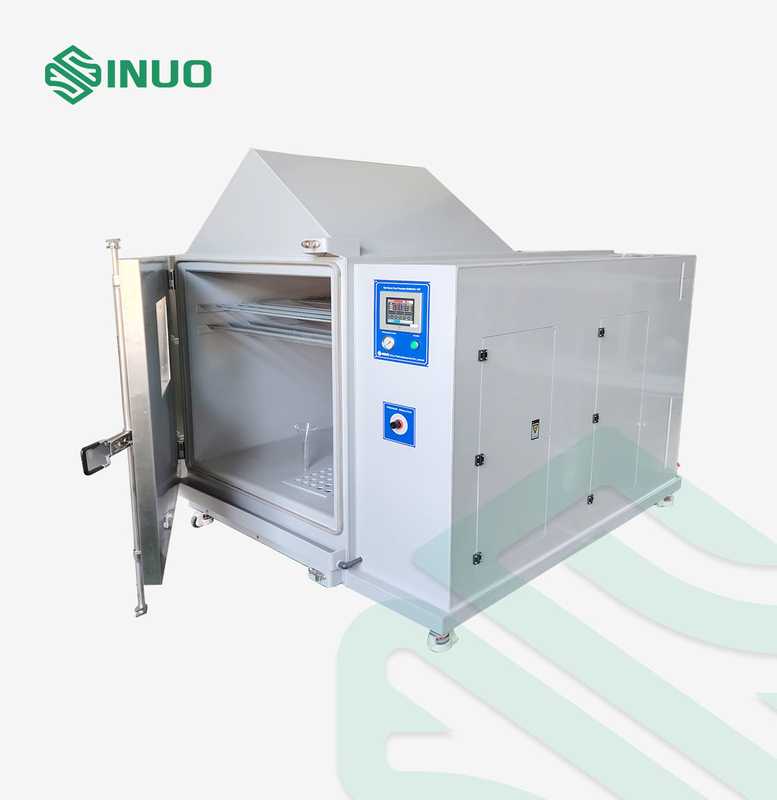

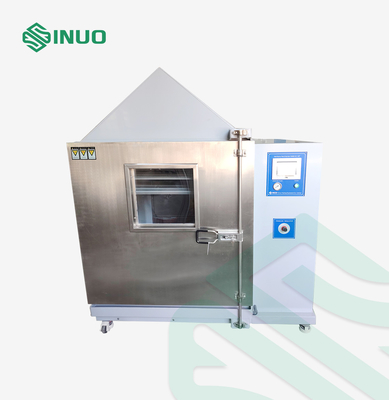

ISO 16750-4 Salt Spray Chamber Compound Salt Spray Test Chamber

Complied Standards & Clauses

It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.

Equipment Overview

The equipment has an emergency braking function, and a brake switch is installed on the equipment. When an abnormal situation occurs, the equipment can be powered off through the control switch.

The equipment is equipped with corresponding system software, which can run stably on the provided operating system, and the software interface is in Chinese or English, the software includes temperature change test, humidity, precision calibration, and equipment self-test module.

The system software can record in real time, save automatically, and optimize data, and can draw temperature-time, humidity-time curves through software settings.

The system software is set with a safety protection parameter interface, and after the setting is completed, it will be given priority during the test process, thereby ensuring the safety of the test.

Technical Parameters

Product Name	Compound Salt Spray Test Chamber
Product model	SN8810C-1m³
Nominal internal volume	1m³ Note: Does not include the volume of the top sloping roof
Effective size of inner box (mm)	1000×1000×1000 W×D×H Note: The height of the top slope is 600mm
External space (mm)	About 1600×2400×2000 W×D×H
Weight	About 500kg
Bearing capacity	About 80KG

Control accuracy	Temperature resolution: 0.1°C Humidity resolution: 0.1%R.H Temperature deviation: ±2.0℃ Humidity deviation: ≤+2-3%R.H when ≥75%RH, humidity deviation: ≤±5%R.H when <75%RH Temperature fluctuation: ±1℃ Humidity fluctuation: ±3%R.H Note: The temperature uniformity and deviation are measured under the conditions of ambient temperature +25°C, relative humidity ≤85% RH, and no sample.
Heating rate of the test room	RT→+60℃≤45 min
Heating rate of saturated tank	RT→+65℃≤45 min
Specimen restrictions	This test chamber prohibits: Testing or storage of samples of flammable, explosive and volatile substances Testing or storage of samples of corrosive substances Testing or storage of biological samples Testing or storage of samples of strong electromagnetic emission sources Testing and storage of radioactive material samples Testing and storage of samples of highly toxic substances Testing and storage of samples that may produce highly toxic substances during testing or storage
