IPX8 Submersion Test Machine IEC 60529 IPX8 Waterproof Test Device

IPX8 Submersion Test Machine IEC 60529 IPX8 Waterproof Test Device

Brand Name:	Sinuo
Model Number:	SN4411
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Control & Operation:

Push-button Operation

Applied Standard:

IEC 60529

Test Duration:

0-9999 Min

Inner Size:

Ф600×1200mm

Pressure Adjustment Range:

0-0.5MPa

Max. Depth Simulation:

0-50 M

Warranty Time:

One Year

IP Code:

IPX 8

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Product Description

IPX8 Submersion Test Machine IEC 60529 IPX8 Waterproof Test Device

Complied Standards & Clauses

IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX8.

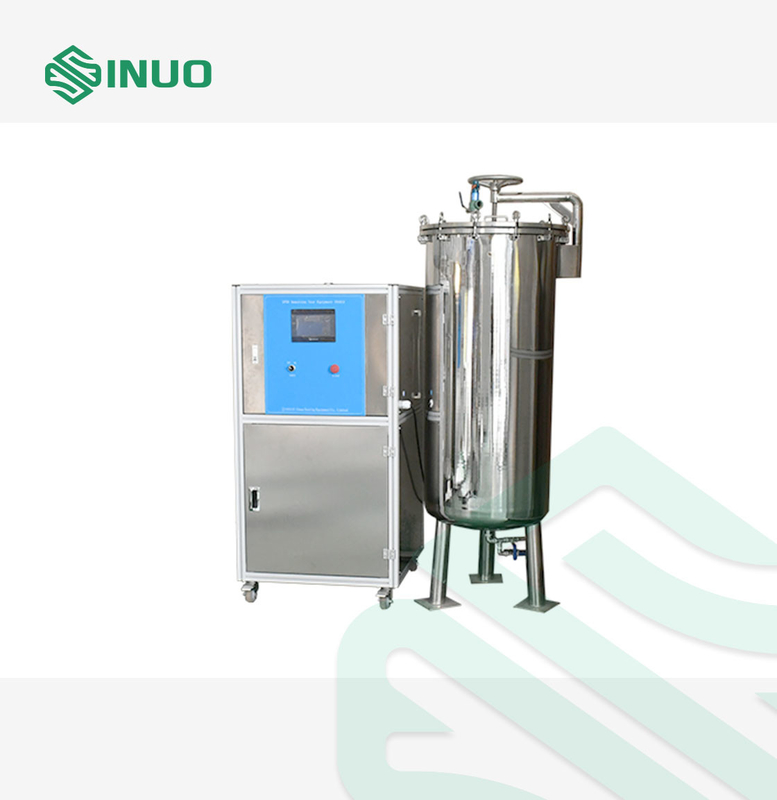

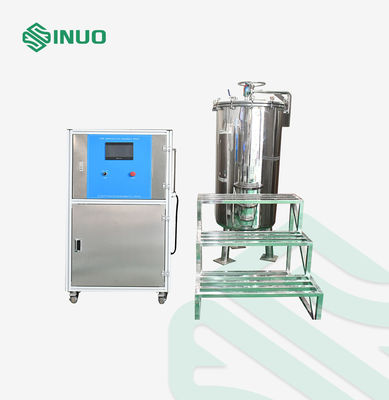

Equipment Overview

The high pressure water tank is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8 as per IEC 60529:2013.

The water tank is made of stainless steel, the equipment is controlled by PLC, test parameters can be set on the touch screen directly, water supply and pressure are achieved automatically.

Technical Parameters

Item		Specifications
Equipment power supply		Three phase AC380V 50Hz 4KW
Small water pump		Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
IP code test range		IPX8 test

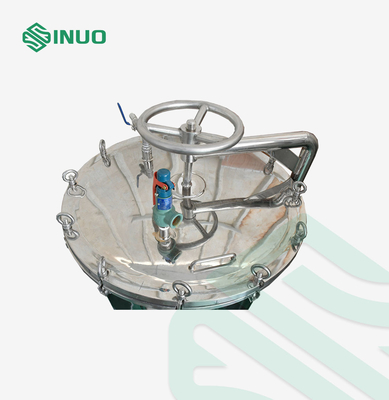

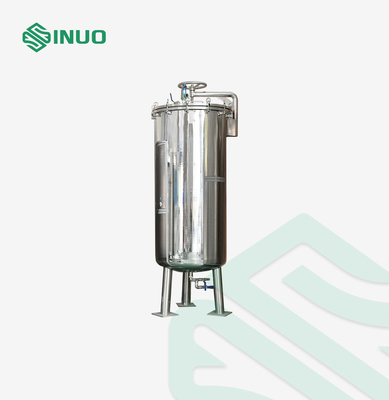

IPX8 pressure tank	Diameter and height	φ600mm Full height of the tank is 1500mm (From upper flange point to lower flange point is 1500 mm), the height of tank body is 1200mm
	Pressure range	0.01~0.50Mpa
	Tank material	SUS304 stainless steel
	Pressurization method	Water pressure pressurization, the current pressure value is collected from the PLC from time to time, and the inverter controls the pump speed and frequency to pressurize, and the pressure is constant
	Pressure sensor accuracy	0.5 grade
	Limit pressure of safety valve protection	0.55 MPa
