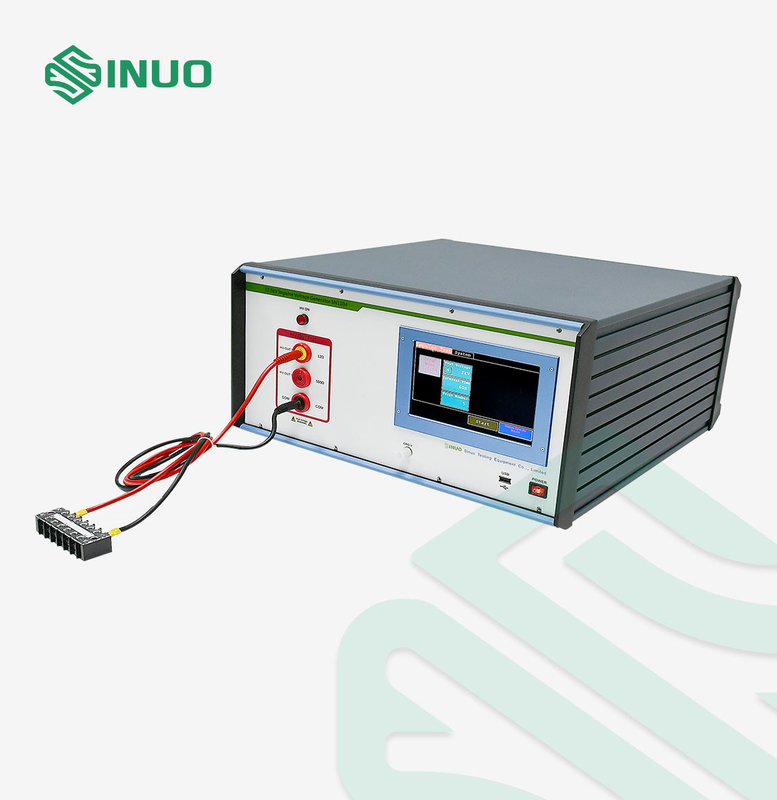

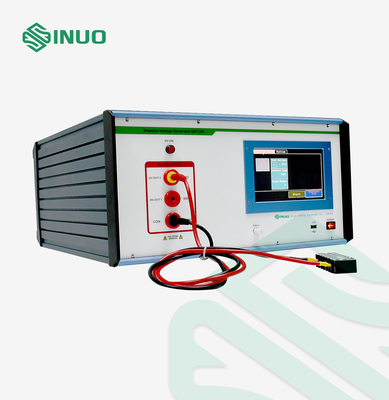

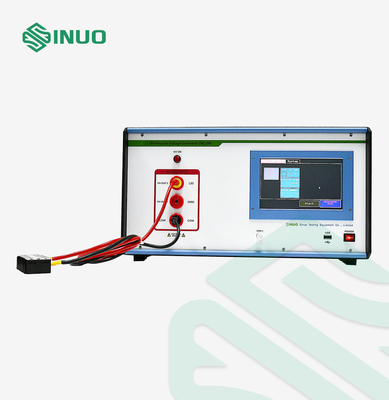

Impulse Test Generator Test Equipment EVSE Testing Equipment Circuit 1 7KV

Impulse Test Generator Test Equipment EVSE Testing Equipment Circuit 1 7KV

Brand Name:	Sinuo
Model Number:	SN1104-2
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

DC High Voltage:

Max. 7kV

Impulse Wavefront Time:

10 µs ± 30 %

Peak Voltage:

0~7kv

Impact Cycles:

1 ~ 9999

Dimension:

430mm×180mm×480mm

Weight:

30 KG

Packaging Details:

Carton Box

Supply Ability:

30 sets/month

Product Description

Impulse Test Generator Test Equipment EVSE Testing Equipment Circuit 1 7KV

Complied Standards & Clauses

Conform to IEC 62368-1:2018 clause 5.4.2, 5.5.8 and Annex D, Annex G.10, circuit 1 of Table D.1, etc. and etc.Conform to IEC 62368-1:2018 clause 5.4.2, 5.5.8 and Annex D, Annex G.10, circuit 1 of Table D.1, etc. and etc.

Equipments Overview

Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.

Technical Parameters

Model	SN1104-2
DC high voltage	Max. 7kV
Impulse voltage wave	Impulse wavefront time: 10 µs ± 30 %; Half value of after wave time: 700 µs ± 20 % Please note that the waveform should be checked on an external oscilloscope
Instrument internal resistance	Resistance matches ITU-T K.44
Peak voltage:	0-7KV, ± 5%
Impact interval time	30~999s
Impact cycles	1 ~ 9999
Polarity	Positive and negative
Working power source	Rated voltage: ~ 220V±10%, 50Hz, Power consumption: 50 VA
Dimension	430mm×180mm×480mm
Weight	30 KG
