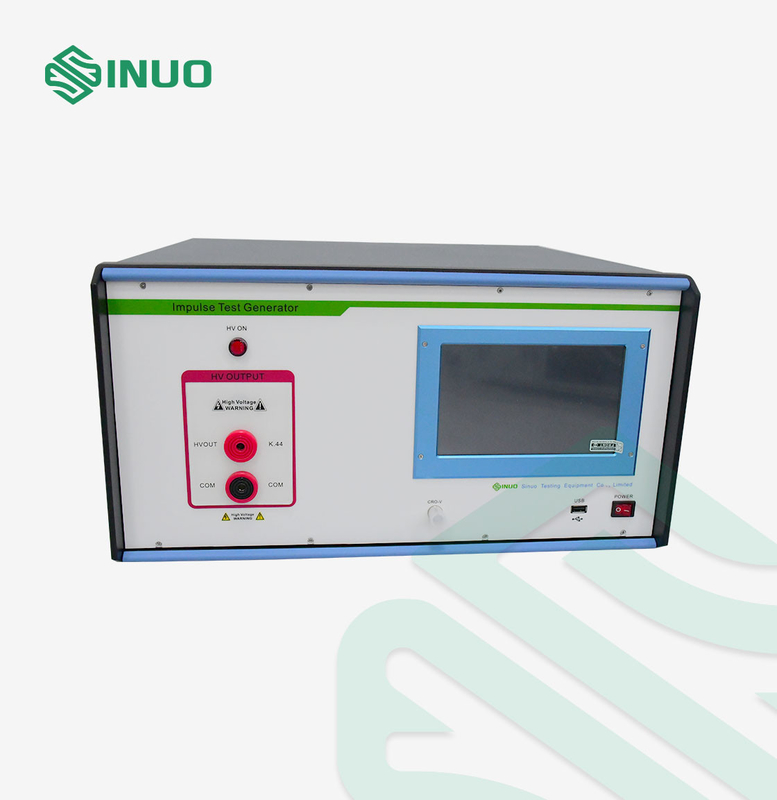

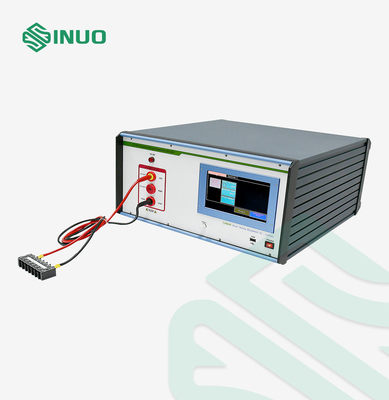

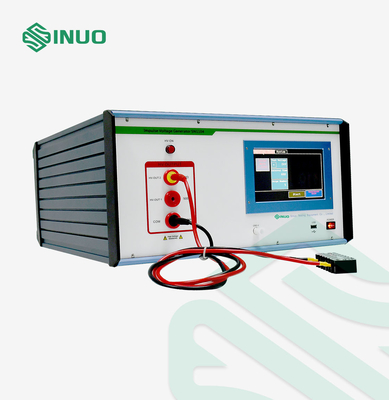

10kV EVSE Testing Equipment Circuit 3 Impulse Test Generator

Name

10kV EVSE Testing Equipment Circuit 3 Impulse Test Generator

Brand Name: Sinuo
Model Number: SN1104-3
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 30 sets/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Output Voltage:
10kV (Max) ±5％
Input Impedance:
1KΩ,±10％
Storage Capacitor:
1000PF
Charging Resistance:
15MΩ
Impact Mode:
Automatic Or Manual
Impact Cycles:
1-9999
Dimension:
470mm×260mm×500mm
Weight:
30kg
Packaging Details:
Carton Box
Supply Ability:
30 sets/month
Product Description





10kV EVSE Testing Equipment Circuit 3 Impulse Test Generator



Complied Standards & Clauses



This surge test generator conforms to IEC 62368-1:2018 clause 5.4.2, 5.5.8 and Annex D, circuit 3 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 7.4.2, reference 3 of table N.1, IEC60065:2014 clause 10.2, 13.3.4 a).



Equipments Overview



7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning



Technical Parameters



Output voltage 10kV (Max) ±5％
Output polarity Positive, negative, positive and negative cycle
Input impedance 1KΩ,±10％
Storage capacitor 1000PF
Charging resistance 15MΩ
Impact mode Automatic or manual
Impact cycles 1-9999
Impact interval time 3-999s(3s of which is the inherent charging time of the device)
Use Environment Temperature: 15℃-35℃, relative humidity: 10% -75%
Power source AC220±10％, 50/60Hz
Dimension 470mm×260mm×500mm
Weight 30kg


Details


10kV EVSE Testing Equipment Circuit 3 Impulse Test Generator 010kV EVSE Testing Equipment Circuit 3 Impulse Test Generator 1
