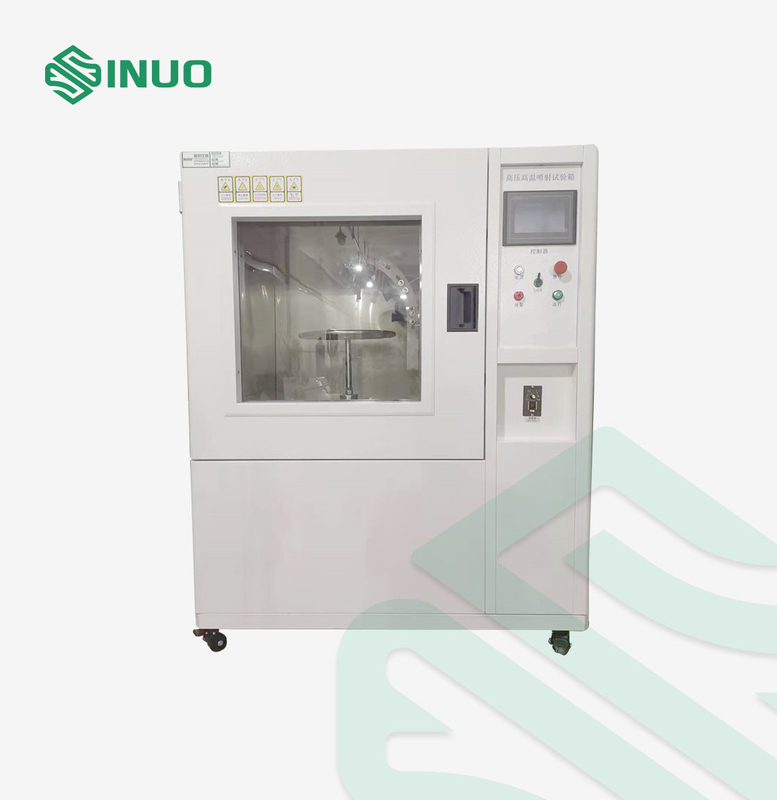

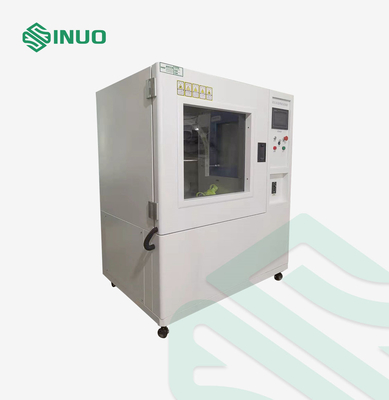

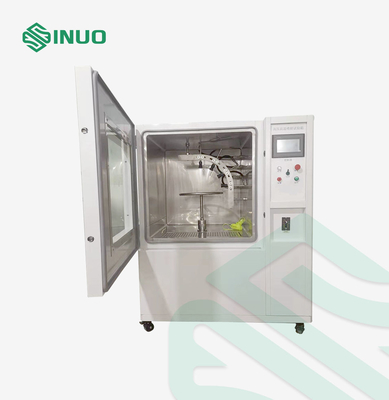

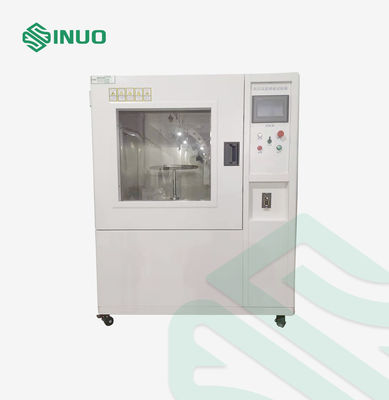

IPX9 High Pressure High Temperature Water Jetting Test Chamber

IPX9 High Pressure High Temperature Water Jetting Test Chamber

Brand Name:	Sinuo
Model Number:	SN4412-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Inner Chamber Size:

L 1000MM * W 1000MM*H 1000MM

Outside Chamber Size:

L 1500MM * W1200MM * H 1950MM

Pipe Diameter:

3/4”

Jet Nozzle:

4 Pcs

Jet Water Pressure:

80 ~ 100bar

Water Jet Flow:

15±1 L / Min (14-16L/min)

Turntable Diameter:

Φ400mm

Run Time Control:

1min ~ 9999min

Packaging Details:

Other

Supply Ability:

1 sets/month

Product Description

IPX9 High Pressure High Temperature Water Jetting Test Chamber

Complied Standards & Clauses

Conforms to IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).

Equipment Overview

Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.

Technical Parameters

Inner chamber size	L 1000MM * W 1000MM*H 1000MM
Outside chamber size	Approx. L 1500MM * W1200MM * H 1950MM
Jet system	Composed by the high pressure high temperature water pump, high pressure high temperature water pressure meter, high pressure high temperature solenoid valve, high pressure high temperature hydraulic pipe.
Pipe diameter	3/4”
Jet nozzle	4 pcs
Hot water jet temperature	RT~80°C±5°C. (Adjustable, enhanced temperature and water overflow protection)
Jet water pressure	80 ~ 100bar (8000 ~ 10000Kpa, 81.5-101.9kg/c㎡)
Water jet flow	15±1 L / min (14-16L/min)
Jet distance	100-200mm and can be adjustable nozzle distance by manual

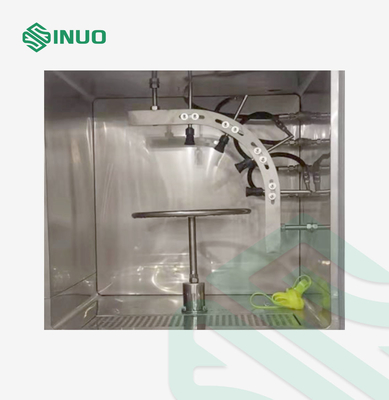

Water jet angle	0 °, 30 °, 60 °, 90 ° (The testing angle can be adjustable by manual), based on a horizontal line, distribute nozzle hole at anticlockwise ±0° ±30° ±60° ±90° with valve on nozzle, can set programmable to jet in turn.
Test time	each angle water jet 30 seconds as per standard requirements, but our system can achieve 0~90s pre-settable and adjustable.
Turntable	The product needs to be placed on a turntable, bearing capacity: ≤30Kgs.

Details

IPX9 High Pressure High Temperature Water Jetting Test Chamber 0
