Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9

Brand Name:	Sinuo
Model Number:	SN4412-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outside Chamber Size:

L 1500MM * W1200MM * H 1950MM

Inner Chamber Size:

L 1000MM * W 1000MM*H 1000MM

Jet Nozzle:

4 Pcs

Pipe Diameter:

3/4”

Water Jet Flow:

15±1 L / Min (14-16L/min)

Jet Water Pressure:

80 ~ 100bar

Run Time Control:

1min ~ 9999min

Turntable Diameter:

Φ400mm

Packaging Details:

Other

Supply Ability:

1 sets/month

Product Description

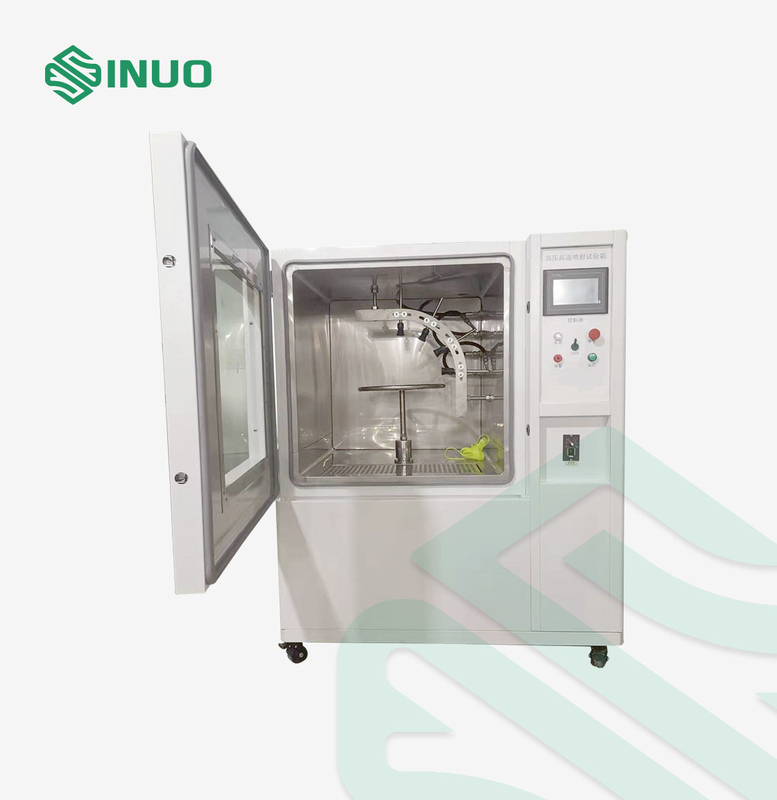

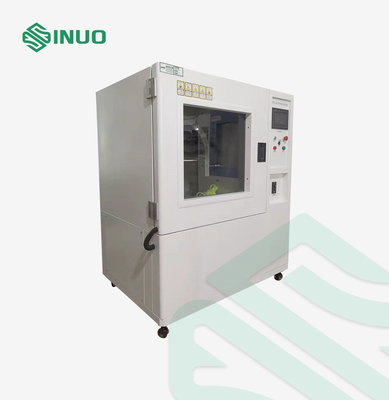

IPX9 High Pressure High Temperature Water Jetting Test Chamber

Complied Standards & Clauses

Conforms to IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).

Equipment Overview

Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.

Technical Parameters

Power supply	Three phase AC380V, 50Hz, 15KW

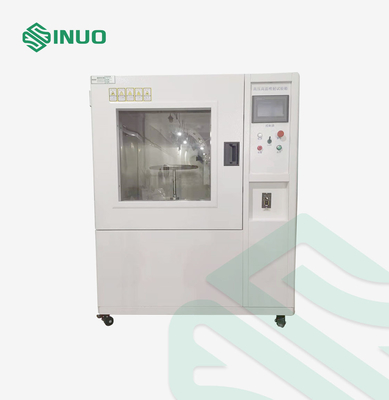

The chamber door	large screen visual tempered glass door, observing test condition and time and equipped with a wiper.

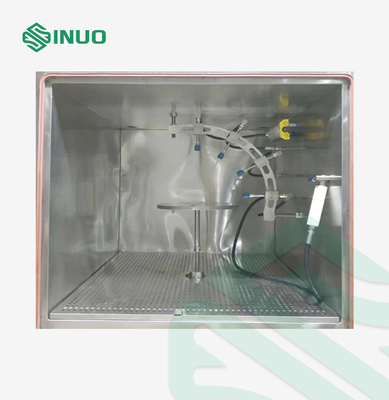

Inner chamber size	L 1000MM * W 1000MM*H 1000MM
Outside chamber size	Approx. L 1500MM * W1200MM * H 1950MM
Control system	Independent research and development touch screen control system.
Jet pressure gauge	can display water pressure.
Pipe diameter	3/4”
Hot water jet temperature	RT~80°C±5°C. (Adjustable, enhanced temperature and water overflow protection)

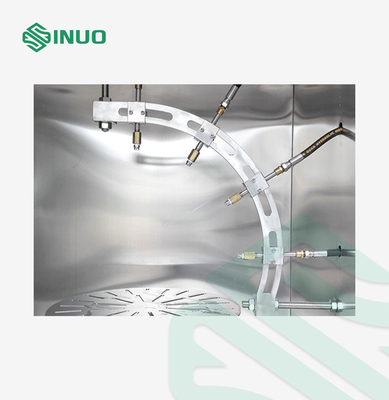

Water jet angle	0 °, 30 °, 60 °, 90 ° (The testing angle can be adjustable by manual), based on a horizontal line, distribute nozzle hole at anticlockwise ±0° ±30° ±60° ±90° with valve on nozzle, can set programmable to jet in turn.
Water jet surface	Front of the product.
Jet water pressure	80 ~ 100bar (8000 ~ 10000Kpa, 81.5-101.9kg/c㎡)
Jet system	Composed by the high pressure high temperature water pump, high pressure high temperature water pressure meter, high pressure high temperature solenoid valve, high pressure high temperature hydraulic pipe.
Turntable	The product needs to be placed on a turntable, bearing capacity: ≤30Kgs.
Jet nozzle	4 pcs

Details

Automotive Waterproof Testing Hot Water Spray Test Chamber IPX9 0
