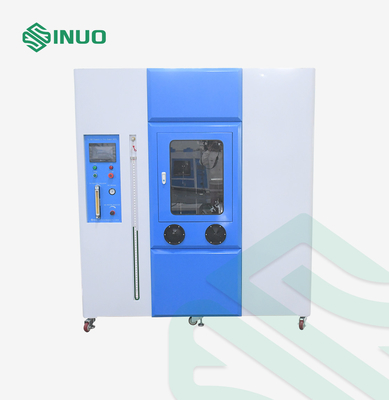

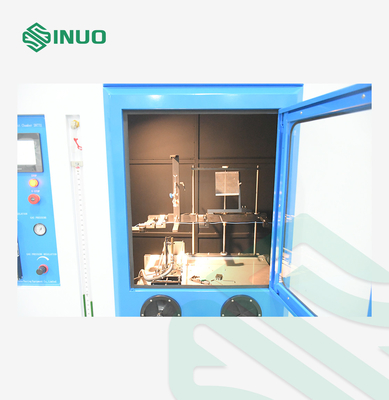

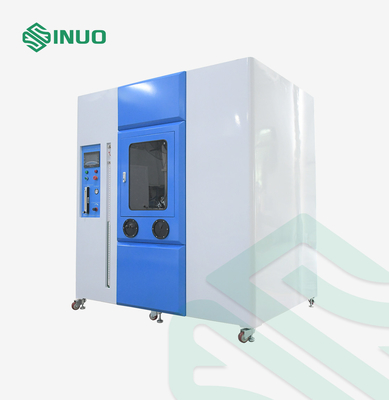

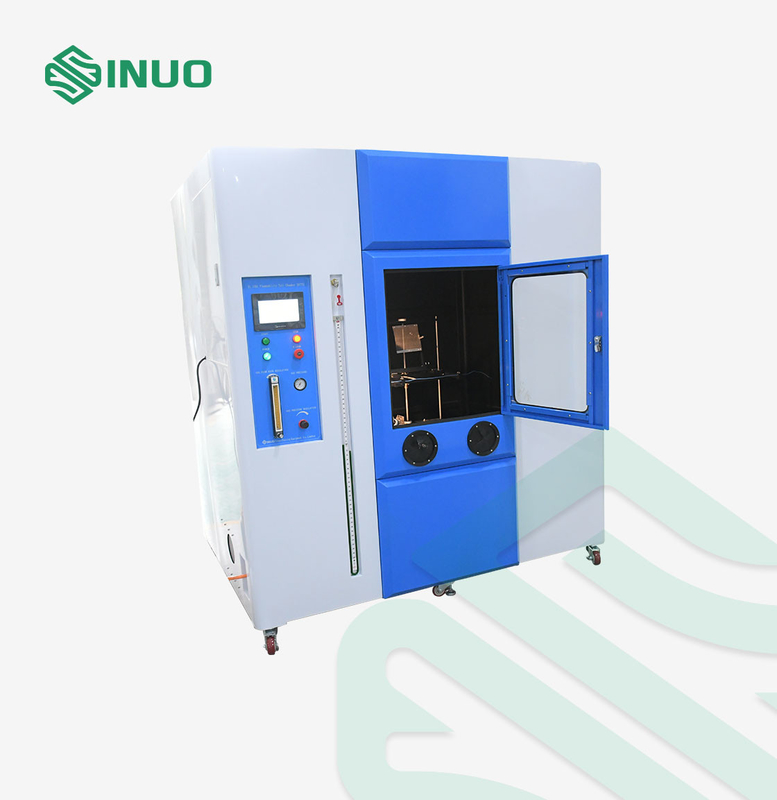

UL94 Flammability Tester VW-1 Horizontal Vertical Flame Test Equipment

Name

UL94 Flammability Tester VW-1 Horizontal Vertical Flame Test Equipment

Brand Name:	Sinuo
Model Number:	SN7711
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Size:

1.7*1.3*2.4m(W*D*H)

Equipment Weight:

350kg

Test Space:

4m³

Gas Category:

Methane

Burner Diameter:

9.5mm ± 0.5mm

Burning Angles:

0°, 20°, 45° Adjustable

Temperature Measurement Distance:

25±1mm/55±1mm

Temperature Measurement Range:

MAX 1100°C

Packaging Details:

Other

Supply Ability:

1 sets/month

Product Description

UL94 Flammability Tester VW-1 Horizontal Vertical Flame Test Equipment

Complied Standards & Clauses

Global Compliance: Fully meets UL1581, UL94, VW-1, and FT2 standards for fire resistance testing.

Equipment Overview

Applications

Wires & Cables: Test flame spread resistance for UL certification.

Electronics: Evaluate fire hazards in connectors and insulation materials.

Automotive: Ensure compliance for wiring harnesses and interior components.

Construction: Validate fireproof coatings and panels.

Technical Parameters

Flame Power	225W & 500W (adjustable for precise simulation)
Power Supply	220V/50Hz
Control System	Mitsubishi PLC + 7" touchscreen with preset programs
Burner Specifications	Diameter: 9.5mm ±0.5mm, Length: 100mm (ASTM 5025 compliant)
Flame Height	20mm–125mm ±1mm (adjustable)
Temperature Range	Up to 1100°C (K-type thermocouple with ±1mm accuracy)
Test Chamber Size	1.7m (W) × 1.3m (D) × 2.4m (H)
Weight	350kg

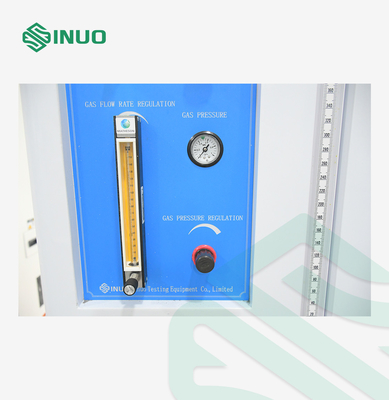

Gas Type	Methane (flow rate adjustable via precision flowmeter)
