IP5X IP6X Dust Test Chamber Sand and Dust Testing Equipment for Electronics

IP5X IP6X Dust Test Chamber Sand and Dust Testing Equipment for Electronics

Brand Name:	Sinuo
Model Number:	SN441-1000L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Dust Concentration:

2kg/m³

Metal Mesh Wire:

50um

Talc Dosage:

2～5kgm³

Dust Blowing Method:

Top-down

Coarse Dust:

Below 150um

Fine Dust:

Below 75um

Inner Chamber Size:

1000*1000*1000mm(W*D*H)

Outer Chamber Size:

1250*1450*2200 Mm (W*D*H)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

IP5X IP6X Dust Test Chamber Sand and Dust Testing Equipment for Electronics

Complied Standards & Clauses

The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

Product Overview

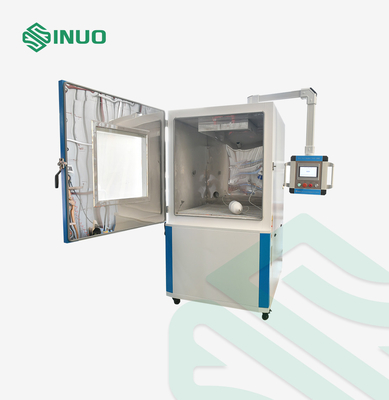

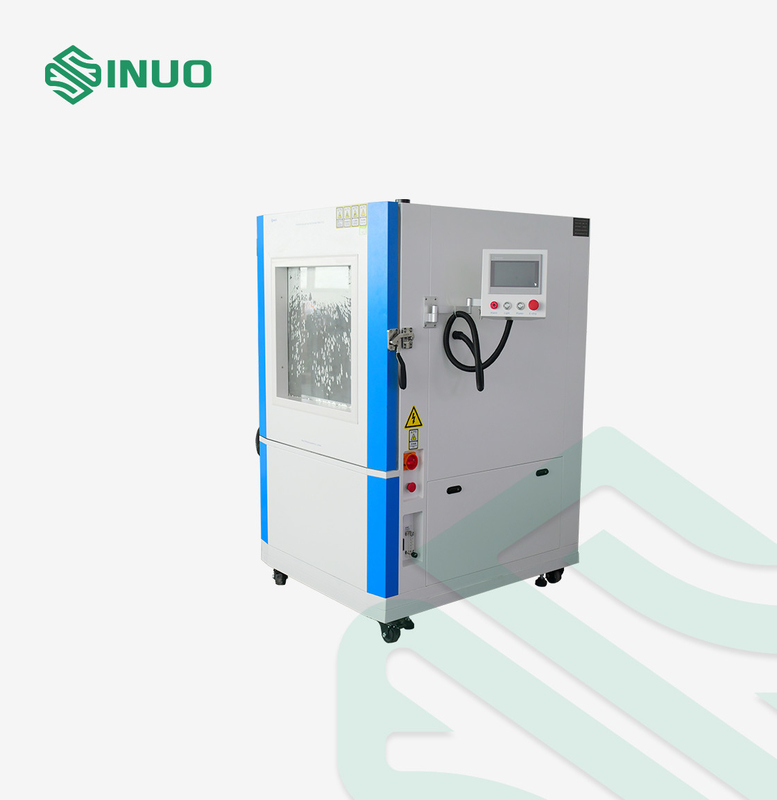

The test chamber is specifically designed to evaluate the dust and sand resistance performance of sealed components and enclosures used in electrical and electronic devices, automotive and motorcycle parts, and various sealing systems. It simulates harsh dusty environments to assess how these products withstand use, storage, and transportation conditions under such exposure.

Featuring an intelligent, user-friendly PLC control system, the chamber ensures precise and efficient operation. The interior is crafted from premium SUS304 stainless steel for excellent durability and corrosion resistance, while the exterior is made of electrostatically sprayed A3 steel, ensuring a sleek and robust finish. A large observation window with a manual wiper allows clear visibility during testing. The device also incorporates comprehensive safety protection, delivering both reliability and peace of mind.

Technical Parameters

Device Name	Dust and Sand Test Chamber
Main configuration	Cabinet	Enclosure material	A3 plate electrostatic spraying
		Inner material	SUS304B Stainless steel
		Lead hole	The sample can be external power supply through this hole
		Observation window	large observation window in the middle of the door
	Electrical control system	Controller	PLC Control: A. blowing dust time (stop, blowing) can be adjusted B. Cycle: arbitrary adjustable C. Preset test time: 0.1H-9999.9H arbitrary adjustable D. Power: On-off- On E. There are accumulating function and power-off protection function
	Vacuum system	Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe
Security Protection Device	Power overload, short-circuit protection
	Ground Protection
	Voltage Protection
	Motor phase loss protection
	Alarm beep prompt
Power Supply	Three phase 380V, 50Hz,3KW

Details
